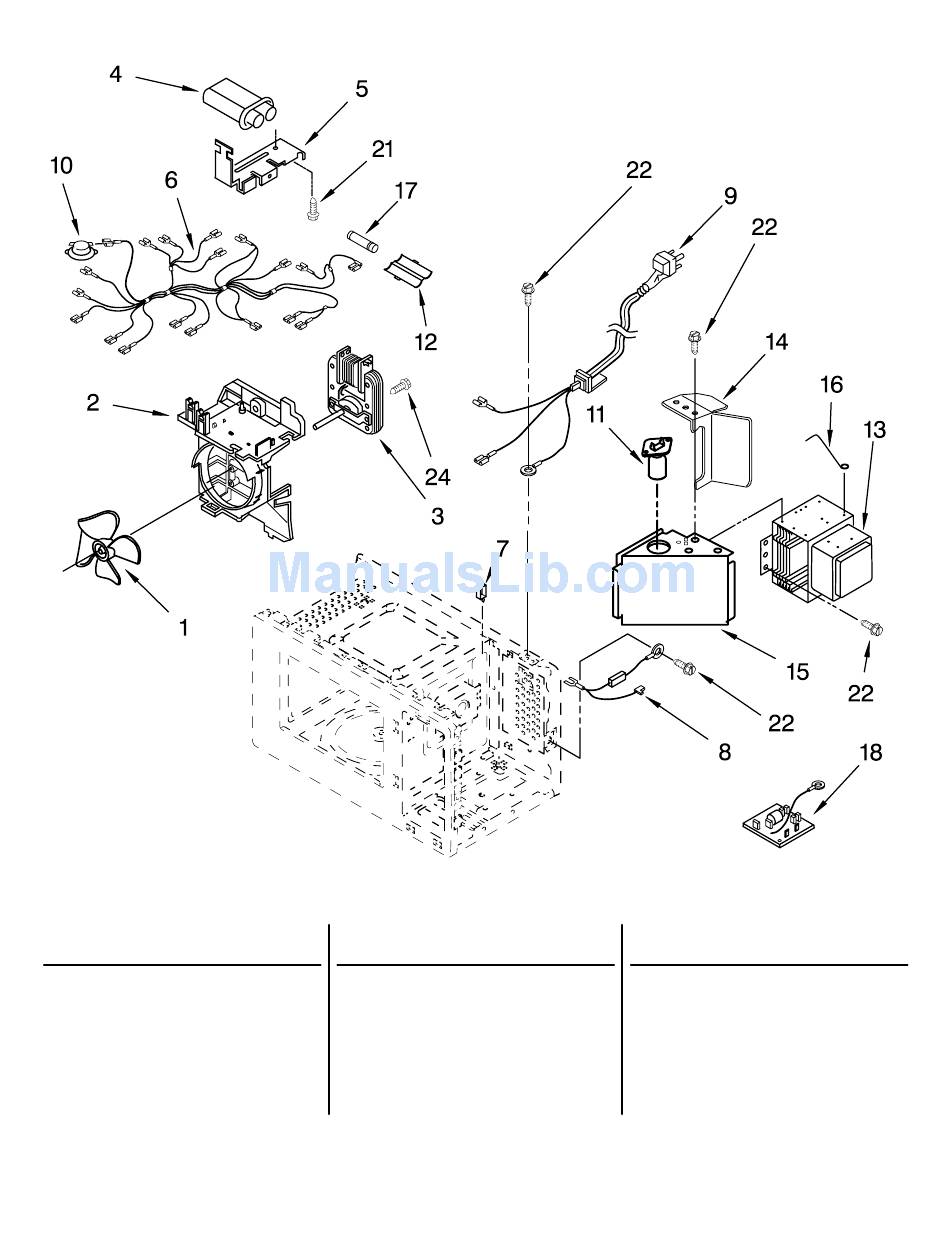

KitchenAid KCMS1555RBL2 Parts List page 5

Microwave oven 1.5 cubic foot
Hide thumbs

Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
8205458 Blade, Fan
2
8205456 Guide, Suction
3
8205462 Motor, Fan
4
8185272 H.V. Capacitor
5
8184288 H.V.C Bracket
6
8206283 Leadwire Assembly
7
4359794 Holder, Wire
8
8205489 H.V. Diode Cable
8206406
OVEN INTERIOR PARTS
For Models: KCMS1555RWH2, KCMS1555RBL2, KCMS1555RSS2
(White)
Illus.
Part
No.
No.
9
8206281 Power Cord
10
4359164 Thermostat
11
8171810 Lamp, Baseless
12
8205483 Cap, Fuse
13
8205460 Magnetron
14
8205509 Bracket
(Black)
(Stainless Steel)
Illus.
DESCRIPTION
No.
15
16
17
18
21
22
24
5
Part
No.
DESCRIPTION
8204900 Duct, Air
8184290 Bracket, Support
8183507 Fuse
8206270 Filter, Noise
4358381 Screw
4358489 Screw
4358190 Screw
