KitchenAid KSSS42MHT00 Parts List

KitchenAid KSSS42MHT00 Parts List

42" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

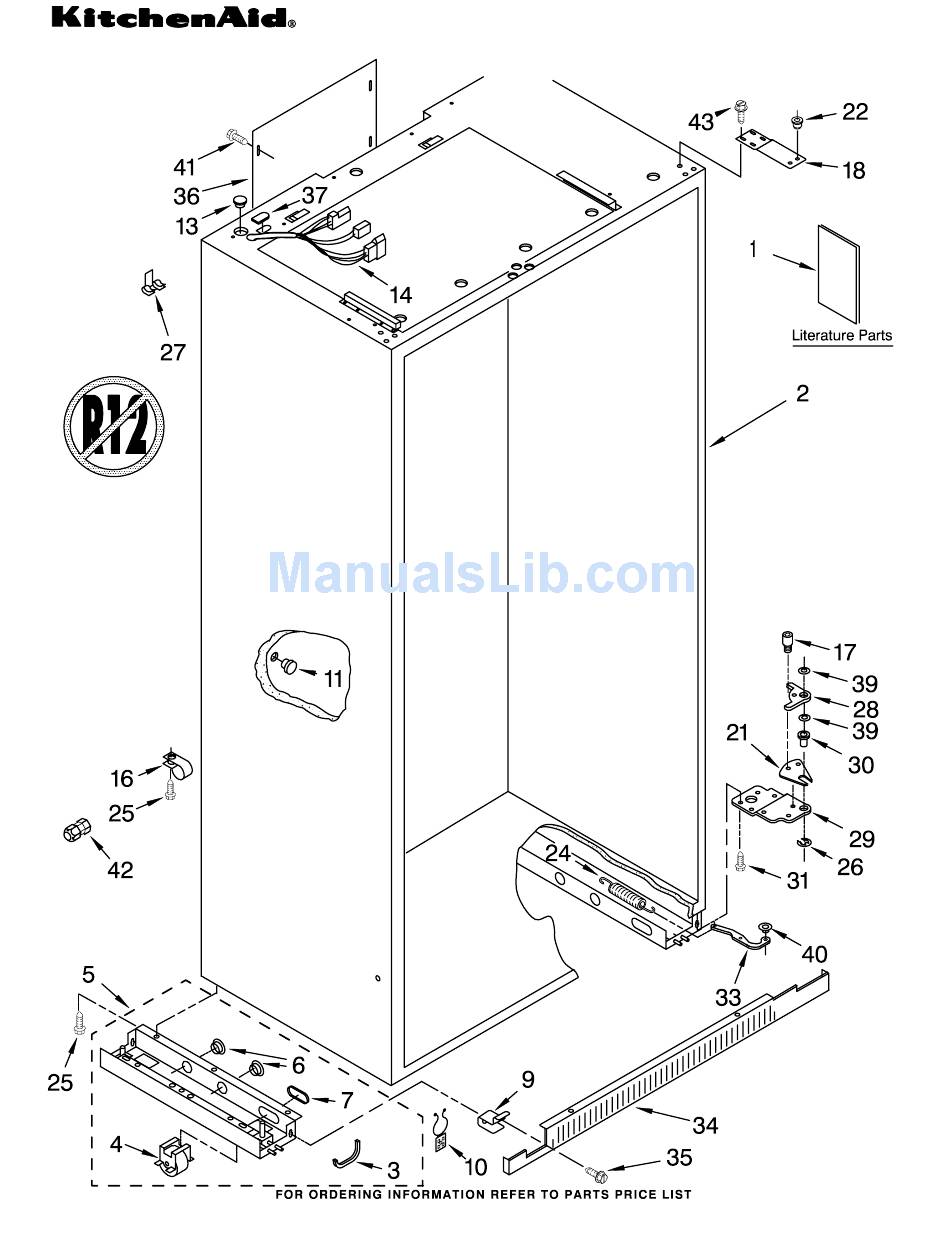

CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00
(White)
(Black)
(Biscuit)
1
Part No. 4398502
1−00 Litho In U.S.A. (mek)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS42MHT00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS42MHT00

Summary of Contents for KitchenAid KSSS42MHT00

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) Part No. 4398502 1−00 Litho In U.S.A. (mek)

  • Page 2: Cabinet Parts

    For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 Illus. Part DESCRIPTION LITERATURE PARTS LIT2006136 Use & Care Guide LIT2006655 Energy Label LIT2006748 Service & Wiring Sheet LIT628370 Modular Icemaker Service Sheet LIT2006137 Installation Instructions Cabinet (Not A Serviceable Part) 2005004 Grommet, Tube Crossover 1112023 Roller, Front &...
  • Page 3 For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 4398502 CABINET TRIM PARTS (White) (Black) (Biscuit) Illus. Part DESCRIPTION Cabinet, Trim (2) 2004668 White 2005820 Black 2005730 Biscuit 2003857 Screw 1163283 Screw 2004537 Cabinet, Trim (Bottom) 486194 Screw 2003646 Cabinet, Trim Top 2005925 Seal−Trim, Side...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 4398502 (White) (Black) Illus. Part DESCRIPTION 1112641 Control Panel 2003302 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3)
  • Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) Illus. Part DESCRIPTION 1113626 Control Panel 2003308 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113134 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006524 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113894 Cover, Crisper...

  • Page 11: Freezer Shelf Parts

    For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 4398502 FREEZER SHELF PARTS (White) (Black) Illus. Part DESCRIPTION 2003143 Solid Shelf 2003134 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket (2) 2208907 Ice Container 2003044 Front Cover Slide, Container 2002720 Right Side...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 Illus. Part DESCRIPTION Top Grille Assembly 2003717 White 2005902 Black 2006396 Biscuit 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw Decortive Panel Assembly 2003726 White 2005905 Black...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 14 REFRIGERATOR DOOR PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) Illus. Part DESCRIPTION 2003871 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top &...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 16 FREEZER DOOR PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) Illus. Part DESCRIPTION 2003877 Freezer Door Panel (Includes Insulation) 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top &...
  • Page 17 UPPER UNIT PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 18 For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 Illus. Part DESCRIPTION 2003398 Assembly, Unit Base 2163787 Clip, Compressor Mounting (4) 2183419 Compressor (Includes Items 8, 9, 11, 12 & 21) (Also Order 876765 Tube Kit) 680975 Washer 2163786 Grommet, Mounting 2154697 Overload 2162358 Terminal Cover...
  • Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) Illus. Part DESCRIPTION 2006755 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan...
  • Page 21 AIR FLOW AND RESERVOIR PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 22 AIR FLOW AND RESERVOIR PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) Illus. Part DESCRIPTION 2188322 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground...

  • Page 23: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 (White) (Black) (Biscuit) 4398502...
  • Page 24 For Models: KSSS42MHW00, KSSS42MHB00, KSSS42MHT00 Illus. Part DESCRIPTION 841707 Insert, Tube 628379 Clip, Fuse 2208933 Water Inlet Tube Assembly 1106508 Seal Gasket 2005038 Plug, Water Valve 2003791 Valve, Solenoid 627018 Nut, Compression 2006738 Connector, Wire 2006738 Water Valve, Harness 1129177 Insert, Tube...

This manual is also suitable for:

Ksss42mhb00Ksss42mhw00
