Summary of Contents for KitchenAid KSCS25QFAL00
- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 11−97 Printed In U.S.A. (RCG) Part No. 4394612...
-

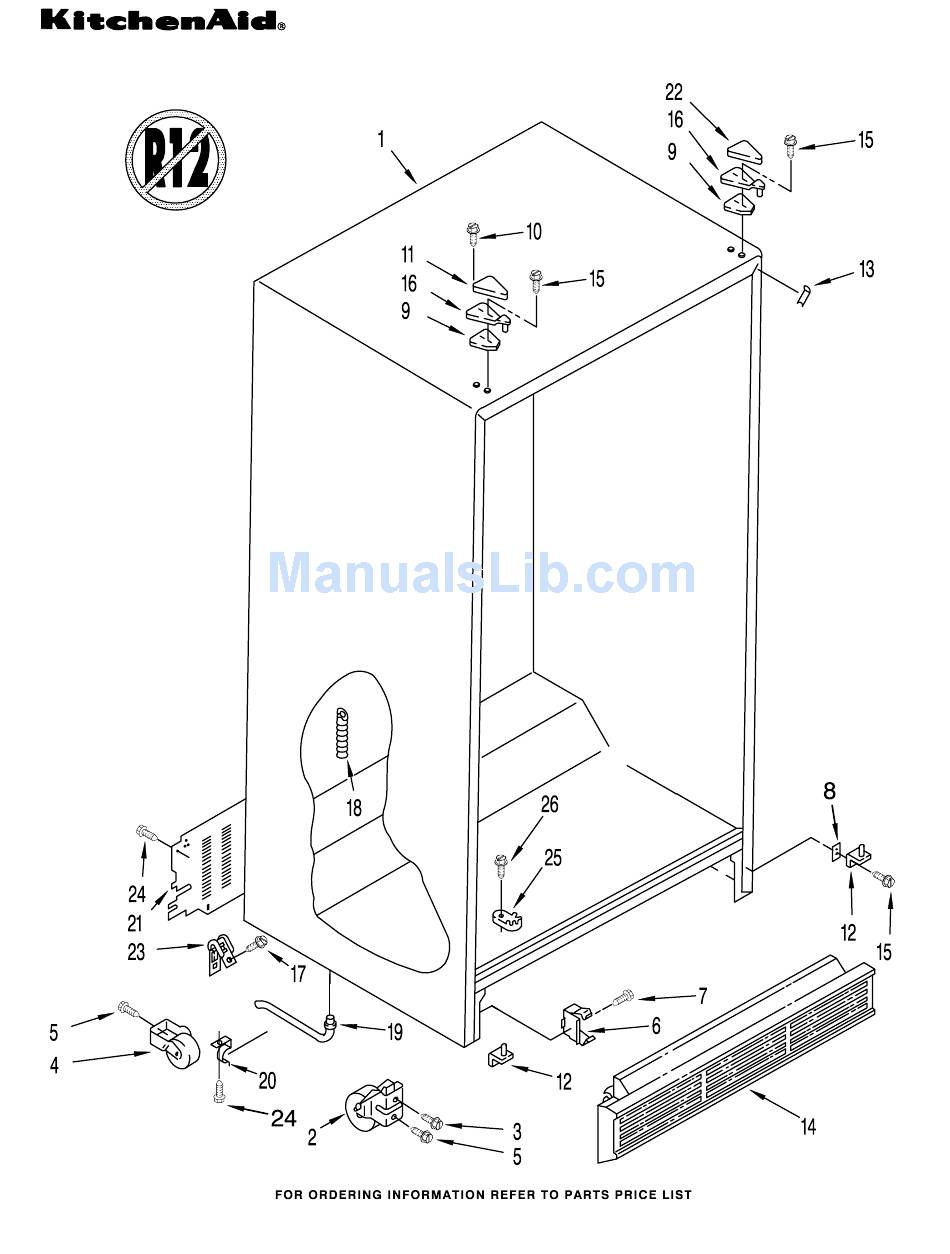

Page 2: Cabinet Parts
CABINET PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2174748 Front Roller (2) 489456 Screw 981122 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw 2156056 Shim 2171868 Shim, Hinge Top 489284 Screw Hinge Cover 1129262 White 2150343 Almond... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2172943 Stud (2) 1110718 Stud (10) 2181796 Ladder, Shelf (2) 486298 Screw (2) 487539 Screw 2179375 Rack, Wine &... -
Page 4: Control Parts
CONTROL PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2172931 Heat Shield 2196003 Tube Barrier, 2172930 Control Box 527949 Light Bulb Thermostat (FC) 2182150 Tube Barrier, 2161460 Thermostat (R.C.) 2172953 Control Box Thermostat (RC) Harness 2172940 Window... -
Page 5: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 6 REFRIGERATOR SHELF PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION 2174023 Shelf Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2174363 Divider, 1/2 2174364 Divider, 1/4 2189526 Glass, Cover 2174250 Cover, Crisper...
-
Page 7: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 8 FREEZER LINER PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2174493 Shelf, Top Compartment 2171713 Door, Ice Compartment 940014 Hole Plug 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 2176134 Grommet (2) Slide, Container...
-
Page 9: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 10 MOTOR AND ICE CONTAINER PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION 2183726 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2169490 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw 2162085 Socket, Light 2182100 Ice Container 983668 Coupling, Conveyor 1118480 Stop, Cone...
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 12 REFRIGERATOR DOOR PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2194233W White 2194233N Almond 2171283 Load, Lock (4) 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Insert, Handle 2173825 White 2173828 Almond 2159075 Door Gasket, Magnetic (Service) End Cap, Handle 2194778W White...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 14 FREEZER DOOR PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2182883 White 2182884 Almond Retainer, Insert 2194777W White 2194777N Almond End Cap (2) 2194778W White 2194778N Almond 489463 Screw 3400012 Screw 489075 Screw 2171070 Shelf Bin (4) 2159074 Door Gasket,...
-
Page 15: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 16 DISPENSER FRONT PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2180210 Pin 2180205 Door, Ice 2180208 Door Mechanism Assembly 2180223 Mechanism Delay Grille, Overflow 2180323 White 2180324 Almond 2180225 Water Fitting Assembly (Includes...
-
Page 17: Unit Parts
UNIT PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 18 UNIT PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 488687 Screw Following Parts Not Illustrated 1108179 Fan, Blade 2157396 Unit Mounting 2198177 Condenser Frame and Optional Parts Not Included Assembly 2194749 Unit, Harness 489464 Screw...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) 4394612... - Page 20 ICEMAKER PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION 489084 Screw 2182015 Fitting, Water Tube 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2181940 Tube, Water 1106508 Seal, Gasket 489478 Screw 2182106 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174155 Cover 488649 Screw...
-
Page 21: Air Flow Parts
AIR FLOW PARTS For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2182063 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2161478 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover... - Page 22 PARTS NOT ILLUSTRATED For Models: KSCS25QFWH00, KSCS25QFAL00 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous LITERATURE PARTS Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum LIT2186479 Use & Care Guide (4 Feet) LIT2182866 Service & Wiring 479502 Tape, Vinyl Customer Touch−Up Material Sheet...
