Summary of Contents for KitchenAid KSCS25FVBL00
- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) 05−08 Printed In U.S.A. (jdc)(bay) Part No. W10182756 Rev. A...
-

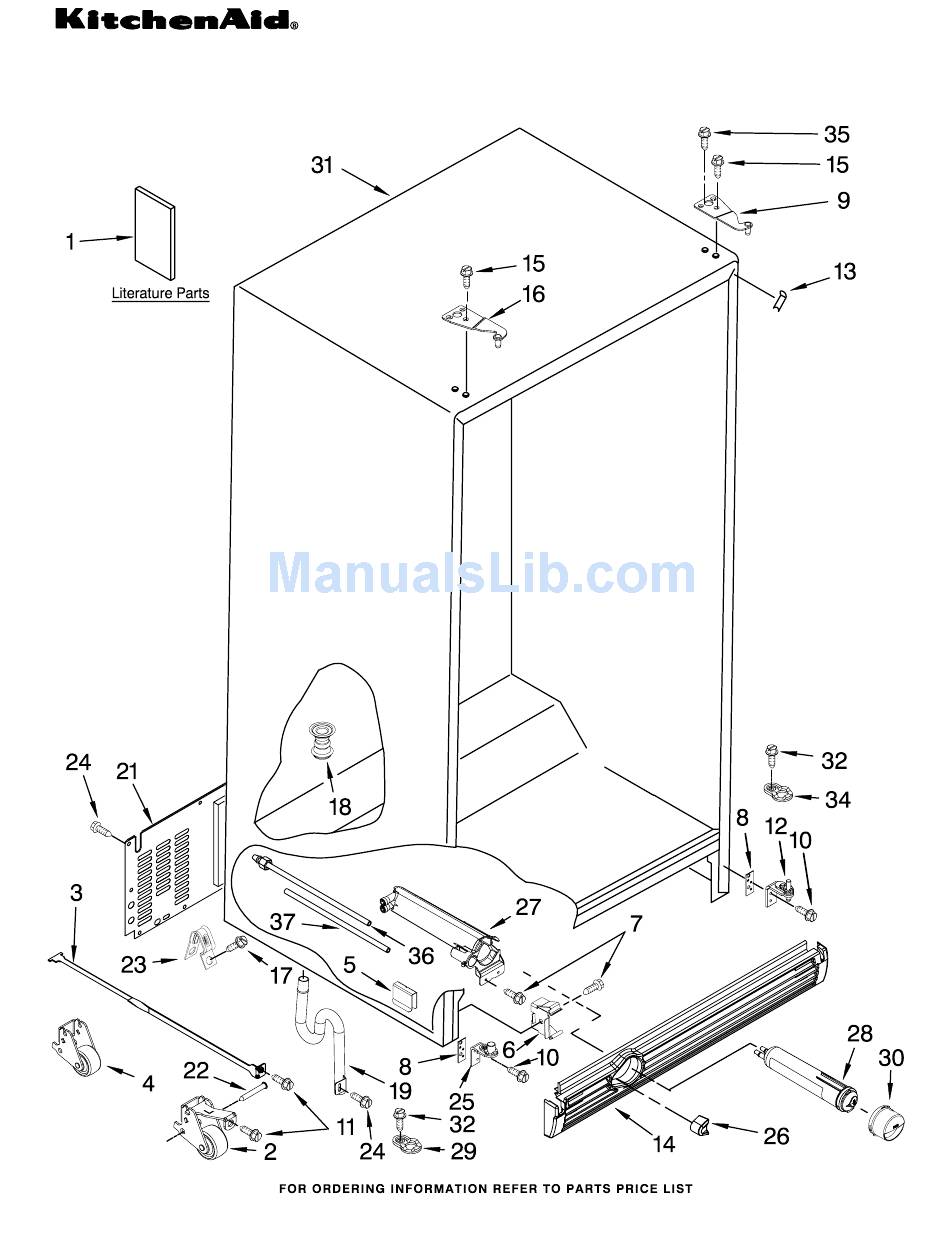

Page 2: Cabinet Parts
CABINET PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2307179 Hinge Assembly, 489084 Screw W10162436 Use & Care Guide Bottom−RC 2307152 Hinge Assembly, W10152832 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION 2224061 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) W10182756... - Page 6 FREEZER LINER PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 2255743 Light Bulb Glide Assembly, 8281185 Screw Seviceable Part) Basket (2) 2223777 Spacer, Slide (2) 2198633 Flipper...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) W10182756... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION 2305416 Ice Bin 2305294 Crusher Bin 2320327 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2305244 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) W10182756... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) W10128340 White W10128344 Biscuit W10128342 Black 2307198S Stainless Steel 2307198SAP Mono Stainless 2203087K Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 2219698 Stud, Handle...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) W10182756... - Page 12 FREEZER DOOR PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10130180 White W10130200 Biscuit W10130188 Black 2326212SB Stainless Steel 2326212NO Mono Stainless Handle (Includes #6) 2319727W White...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) W10182756... - Page 14 DISPENSER FRONT PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw (4) 2305236 Spigot...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade... -
Page 16: Control Parts
CONTROL PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION 1 W10175591 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes #5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) W10182756... - Page 18 UNIT PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2188874 Fan, Motor 777070 Screw 2223398 Tray, Evaporator 2 W10139483 Fan, Blade Following Parts Not Illustrated 2224022 Heat Shield 3 W10131059 Condenser and Optional Parts Not Included...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) W10182756... - Page 20 ICEMAKER PARTS For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part DESCRIPTION 489084 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 2313394 Shield, Water Valve 489478 Screw 6 W10159840 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS25FVWH00, KSCS25FVBT00, KSCS25FVBL00, KSCS25FVMS00, KSCS25FVMK00, KSCS25FVSS00 (White) (Biscuit) (Black) (Monochromatic (Monochromatic (Stainless) Stainless) Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY PAINT, BULK (1 qt.) ACCESSORIES (12 oz.) Previous Architect Series Handle Kit 799340 Black 350942 Primer, White...
