KitchenAid KSSS48FKB01 Parts List

KitchenAid KSSS48FKB01 Parts List

48" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

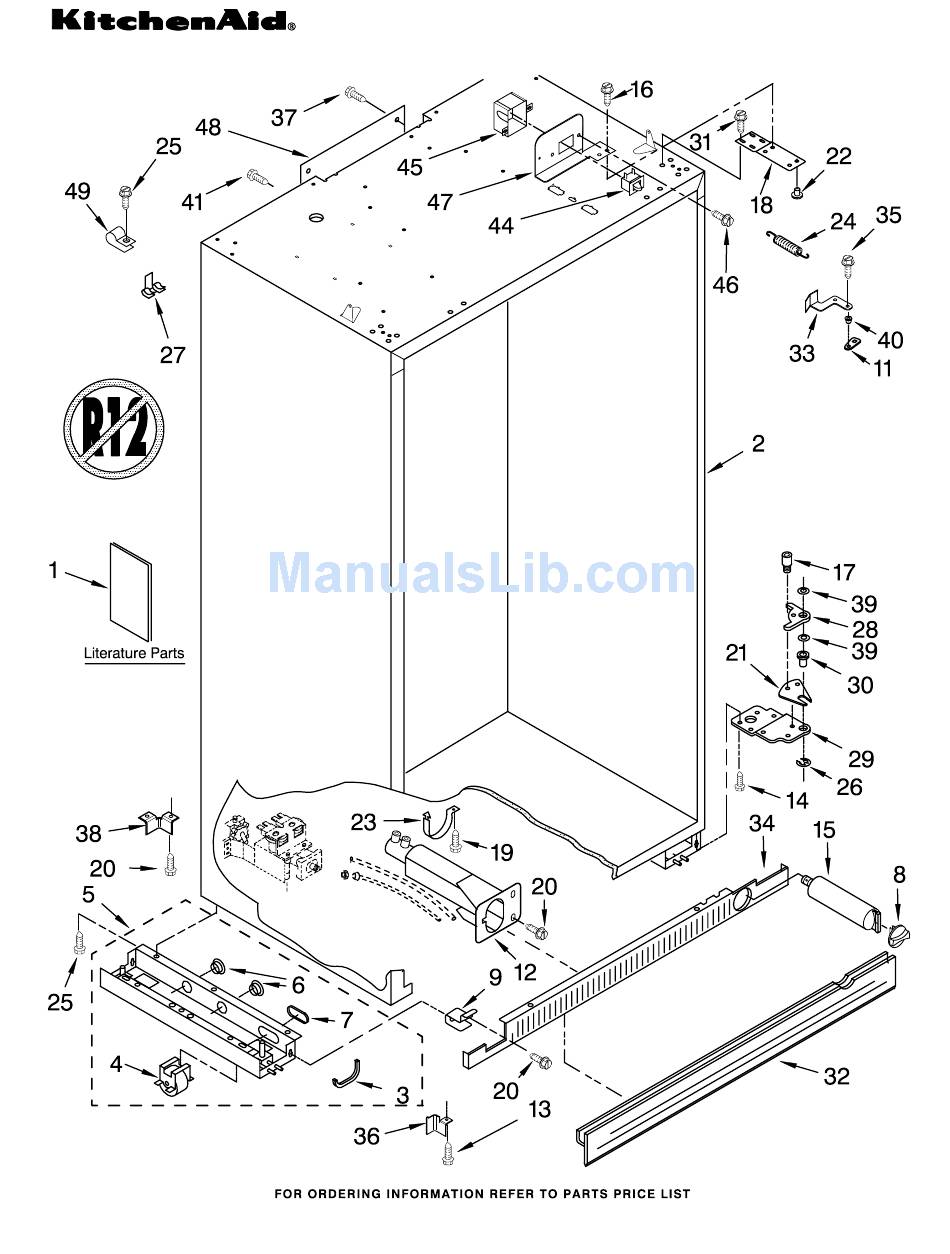

CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01
(Black)
(Biscuit)
(White)
(Etched Aluminum)
5−03 Litho In U.S.A. (tpm)
Part No. 8198077
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48FKB01 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS48FKB01

Summary of Contents for KitchenAid KSSS48FKB01

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 5−03 Litho In U.S.A. (tpm) Part No. 8198077...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Extension Arm, 3400525 Screw Literature Parts Door Closer 2203221 Filter, Water LIT2254714 Use & Care Guide 2221095 Right 489399 Screw LIT2221227 Energy Label 2221094 Left...
  • Page 3 CABINET TRIM PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919W White 2215919B Black 2215919T Biscuit 8201535 Etched Aluminum Screw 8281251 White 8281252 Black 8281253 Biscuit 8281250 Stainless Steel 2254726 Cabinet, Trim (Bottom) 486194 Screw...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2220891 Solid Shelf 2220848 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2208196 Basket 2220845 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 2003046 Hole Plug, Front...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2221211 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air Duct Cover...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 8201533 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2003841 Retainer, Knob 2221121 Support, Control 489006 Screw 2162085 Socket, Light 2160708 Light Bulb (2) 486194 Screw...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2215963W White 2215963B Black 2215963T Biscuit 2215963 Etched Aluminum 2209490 Cover, Unit 1157158 Screw 2215830 Back Panel 2209492 Guard, Wiring 487415 Screw 2187429 Wire Assembly...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006525 Frame, Assembly Meat Pan 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9)
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 14 REFRIGERATOR DOOR PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 8201581 Refrigerator Door Panel (Includes Insulation) 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top &...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 16 FREEZER DOOR PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 8201579 Freezer Door Panel (Includes Insulation) 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top &...
  • Page 17 UPPER UNIT PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 18 UPPER UNIT PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209324 Inverter Box 943447 Grommet (4) 489373 Screw, Compressor 2187422 Jumper Wire Following Parts Not Illustrated Mounting (4) 487522 Screw and Optional Parts Not Included 2208937 Compressor...
  • Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2209036 Tube, Discharge...

  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) 8198077...
  • Page 22 ICEMAKER PARTS For Models: KSSS48FKB01, KSSS48FKT01, KSSS48FKW01, KSSS48FKX01 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2221240 Heater, Fill Tube 2208136 Clamp, Nylon 627985 Thermostat 2221231 Heat Shield Valve (Also Order 2005038 Plug, Water Valve 488937 Clamp Tube 542639 Cement 841707 Insert, Tube...

This manual is also suitable for:

Ksss48fkt01Ksss48fkw01Ksss48fkx01
