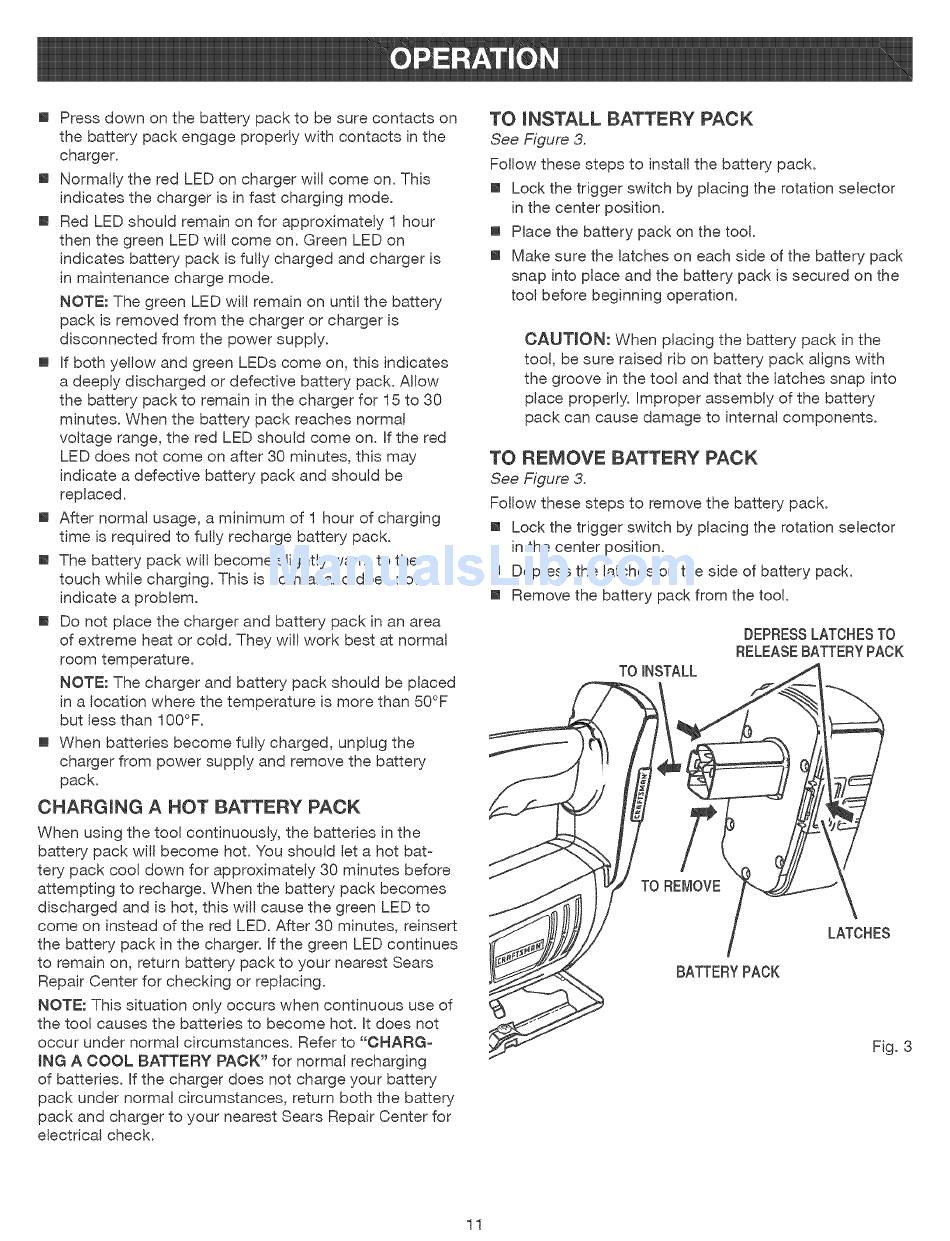

To Install Battery Pack; To Remove Battery Pack - Craftsman 315.114280 Operator's Manual

19.2 volt cordless jig saw variable speed / orbital
Hide thumbs

Advertisement

[] Press downonthebattery packto besurecontacts on
the battery packengage properly withcontacts inthe
charger.
[] Normally t he redLEDoncharger w it!comeon.This
indicates t hecharger i s infastcharging mode.
[] RedLEDshouldremain onfor approximately 1 hour
thenthegreenLEDwillcomeon.Green LEDon
indicates battery packis fullycharged andcharger i s
inmaintenance charge mode.
NOTE: ThegreenLEDwillremain onuntilthe battery
packis removed fromthecharger o r charger i s
disconnected f romthepowersupply.
[] Hf b othyellowandgreenLEDs comeon,this indicates
a deeplydischarged o rdefective battery pack.Allow
the battery packto remain inthecharger f or15to 30
minutes. When the battery packreaches normal
voltage range, t he redLEDshouldcomeon.Hf t hered
LEDdoesnotcomeonafter30minutes, thismay
indicate a defective battery packandshouldbe
replaced.
[] Afternormal u sage, a minimum of 1 hourofcharging
timeis required to fullyrecharge battery pack.
[] Thebattery packwill become slightly warmtothe
touchwhilecharging. Thisis normal a nddoesnot
indicate a problem.
[] Donotplacethecharger a ndbattery packin anarea
of extreme heator cold.Theywillworkbestat normal
roomtemperature.
NOTE: Thecharger a ndbattery packshouldbeplaced
ina location where thetemperature i s morethan50°F
butlessthan100°F.
[] Whenbatteries become fullycharged, u nplug the
charger f rompowersupply andremove thebattery
pack.
CHARGING
A HOT BATTERY
PACK
When using the tool continuously, the batteries in the
battery pack wil! become hot. You should let a hot bat-
tery pack cool down for approximately
30 minutes before
attempting to recharge. When the battery pack becomes
discharged and is hot, this will cause the green LED to
come on instead of the red LED. After 30 minutes, reinsert
the battery pack in the charger. If the green LED continues
to remain on, return battery pack to your nearest Sears
Repair Center for checking or replacing.
NOTE: This situation only occurs when continuous
use of
the tool causes the batteries to become hot. It does not
occur under normal circumstances.
Refer to "CHARG-
ING A COOL BATTERY PACK" for normal recharging
of batteries. If the charger does not charge your battery
pack under normal circumstances,
return both the battery
pack and charger to your nearest Sears Repair Center for
electrical check.
TO iNSTALL
BATTERY
PACK
See Figure 3.
Follow these steps to install the battery pack.
[] Lock the trigger switch by placing the rotation selector
in the center position,
[] Place the battery pack on the tool,
[] Make sure the latches on each side of the battery pack
snap into place and the battery pack is secured on the
toot before beginning operation,
CAUTION:
When placing the battery pack in the
tool, be sure raised rib on battery pack aligns with
the groove in the too! and that the latches snap into
place properly. Improper assembly of the battery
pack can cause damage to internal components.
TO REMOVE
BATTERY
PACK
See Figure 3.
Follow these steps to remove the battery pack.
[] Lock the trigger switch by placing the rotation selector
in the center position,
[] Depress the latches on the side of battery pack,
[] Remove the battery pack from the tooi,
TOINSTALL
DEPRESSLATCHESTO
RELEASEBATTERYPACK
r
TO REMOVE
BATTERYPACK
LATCHES
Fig. 3
11
