Estate T4TXNWFW Dimension Manual

Refrigerator
PRODUCT MODEL NUMBERS
TT14DKXS T6TXNWFW
TT16DKXS T8RXNGFW
TT18TKXS T8TXNGFW
T4TXNWFW T8TXNWFW
Electrical: A 115-volt, 60-Hz, AC-only, 15- or
20-ampere fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an
outlet that cannot be turned off by a switch. Do not
use an extension cord.
Water: A cold water supply with water pressure
of between 30 and 120 psi (207 and 827 kPa)
is required to operate ice maker. If you have
questions about your water pressure, call a
licensed, qualified plumber.
IMPORTANT: The pressure of the water coming
out of a reverse osmosis system going to the
water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the system needs to be a minimum of
40 to 60 psi (276 to 414 kPa).
LOCATION REQUIREMENTS
3" (7.5 cm)
2" (5.08 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

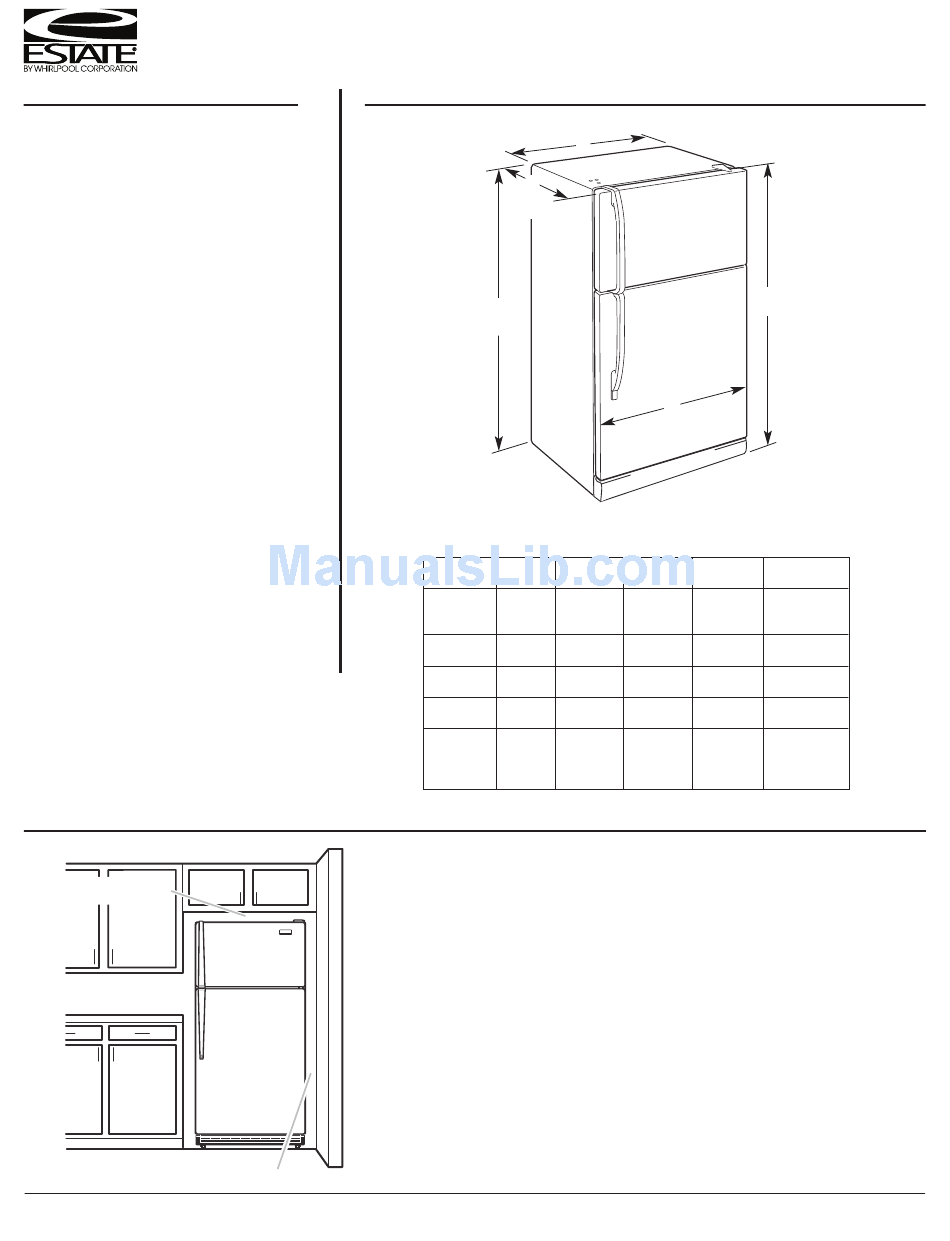

PRODUCT DIMENSIONS
A
not incl.
handle
D
top of
cabinet
Dimensions "D" and "E" include rollers extended 3/4".
Depth
Model "A"
14 cu.ft. 29-3/4"
TT14DKXS (75.6 cm)
T4TXNWFW
16 cu.ft. 31-1/8"
TT16DKXS (79.1 cm)
16 cu.ft. 30-7/8"
T6TXNWFW (78.4 cm)
18 cu.ft. 31-1/8"
TT18TKXS (79.1 cm)
18 cu.ft 30-7/8"
T8RXNGFW (78.4 cm)
T8TXNGFW
T8TXNWFW
To ensure proper ventilation for your refrigerator, allow for a 1/2" (12.7 mm) space
on each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator
top. Allow at least 1" (25.4) mm) between back of cabinet and the wall. If your
refrigerator has an ice maker, make sure you leave some extra space at the back for
the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 2" (5.08 cm)
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
NOTE: It is recommended that you do not install the refrigerator near an oven,
radiator, or other heat source. Do not install in a location where the temperature will
fall below 55° (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
1
4
C
Cab. Width Door Width Cab. Height Overall Height
"B" "C" "D"
28" 28" 62-1/8"
(71.1 cm) (71.1 cm) (157.8 cm)
28" 28" 65-1/4"
(71.1 cm) (71.1 cm) (165.7 cm)
28" 28" 65-1/4"
(71.1 cm) 71.1 cm) (165.7 cm)
28" 28" 67-3/8"
(71.1 cm) (71.1 cm) (171.1 cm)
28" 28" 67-3/8"
(71.1 cm) (71.1 cm) (171.1 cm)
E
overall
"E"
62-3/4"
(159.4 cm)
65-3/4"
(167 cm)
65-3/4"
(167 cm)
67-7/8"
(172.4 cm)
67-7/8"
(172.4 cm)
Ref. 2316077B
03-12-09
