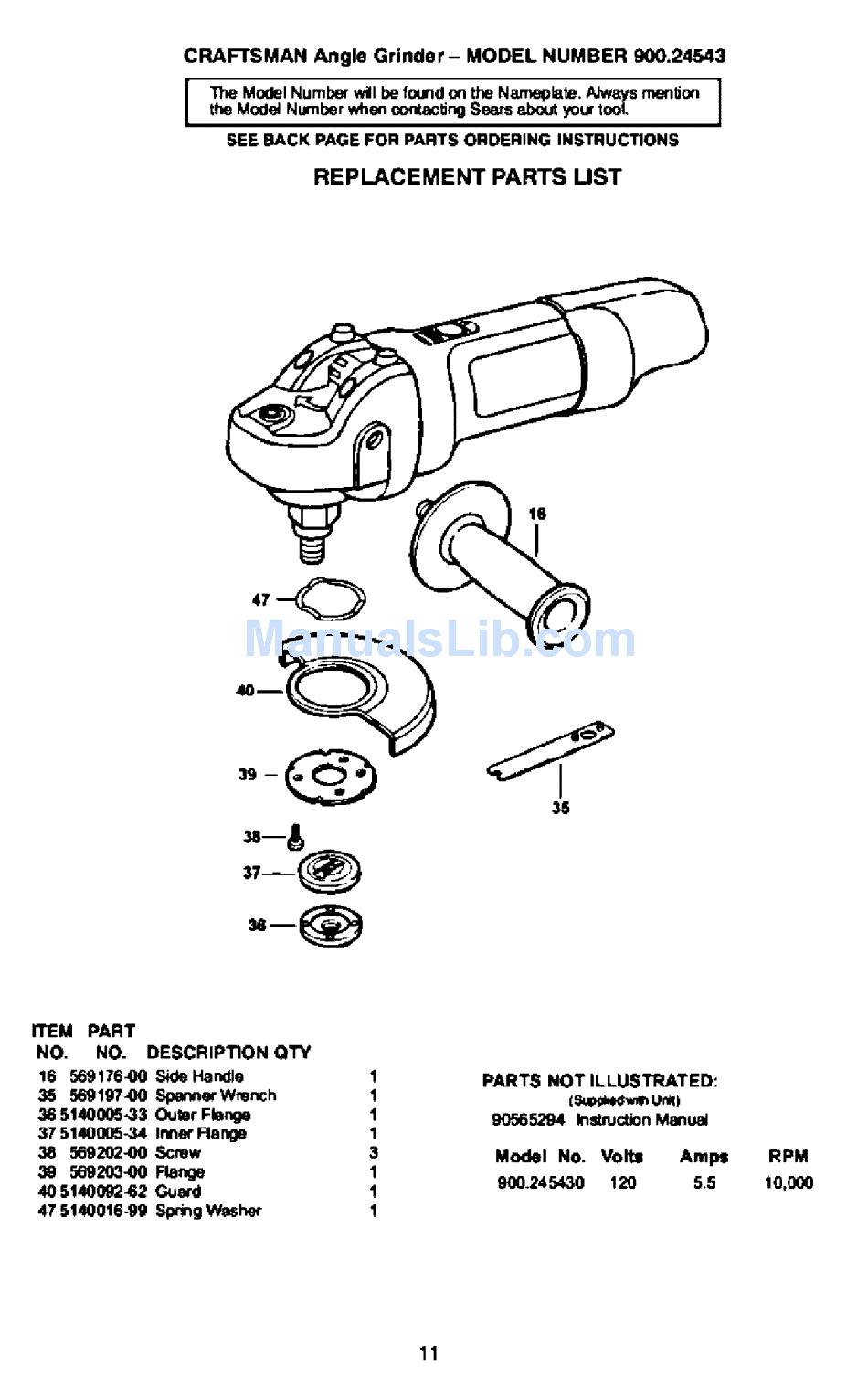

CRAFTSMAN Angle Grinder- MODEL NUMBER 900.24543
I The Model Number wil be foundon the NameplAte.AIwsys mention
1
the Model Numberwhen co_cting Seers about yourtoot_ I
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
REPLACEMENT PARTS UST
39--
35
_J
ITEM PART
NO. NO. DESCRIPTION QTY
i6 569176-00 Side Han_tle
35 569197-00 SpannerWnBnch
35 5140005-33 Outer Flange
37 5140005-34 Inner Flange
38 569202-00 Screw
39 569203-00 Flange
40 5140092-62 Guard
47 5140016-99 Sl>dngWasher
I
I
I
1
3
1
1
I
PARTS NOT ILLUSTRATED:
90565294 Instruction Manuad
Model No. Volts Amps RPM
900.24 5430 120 5.5 i0,000
11
