Parts List - Craftsman 172.417730 Owner's Manual

6.5 Amp Angle Grinder

PARTS LIST

The model number will be found on the nameplate of the grinder.
Always mention the model number when ordering parts for this tool.
To order parts, call 1-888-331-4569
15
MODEL NUMBER 172.417730
6.5 Amp Angle Grinder
PARTS LIST
The model number will be found on the nameplate of the grinder.
Always mention the model number when ordering parts for this tool.
To order parts, call 1-888-331-4569

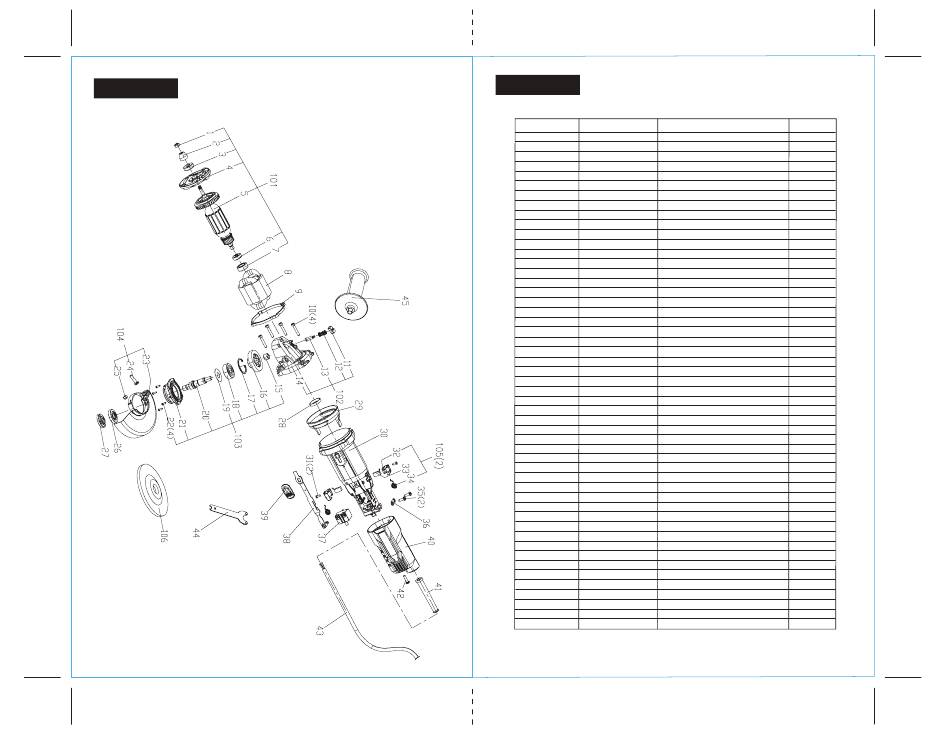

Position No. Part Number Part Description
1 PGA800SU-1 Nut M6
PGA800SU-2 Small Gear
2
PGA800SU-3 Ball Bearing 608
3
4 PGA800SU-4 Baffle
5 PGA800SU-5 Rotor
PGA800SU-6 Ball Bearing 607
6
7 PGA800SU-7 Bearing Sleeve
8 PGA800SU-8 Stator
Housing Decorative Ring
9 PGA800SU-9
PGA800SU-10 Self Tapping Screw
10
11 PGA800SU-11 Spindle Lock Cap
12 PGA800SU-12 Compression Spring
PGA800SU-13 Spindle Lock Pin
13
14 PGA800SU-14 Fore Housing
15 PGA800SU-15 Oil Seal Bearing
Big Gear
16 PGA800SU-16
PGA800SU-17 Retaining Ring4 32-A
17
18 PGA800SU-18 Ball Bearing 6201
19 PGA800SU-19 Dust Roof Plate
Spindle
20 PGA800SU-20
PGA800SU-21 Fore Cover
21
22 PGA800SU-22 Screw
23 PGA800SU-23 Guard Set
PGA800SU-24 Screw
24
25 PGA800SU-25 Nut M5
26 PGA800SU-26 Inner Flange
Outer Flange
27 PGA800SU-27
PGA800SU-28 Bearing Sleeve
28
29 PGA800SU-29 Wind Baffle Ring
30 PGA800SU-30 Housing
PGA800SU-31 Self Tapping Screw
31
32 PGA800SU-32 Brush Holder
33 PGA800SU-33 Carbon Brush(pair)
Spiral Spring
34 PGA800SU-34
PGA800SU-35 Self Tapping Screw
35
36 PGA800SU-36 Cord Clamp
37 PGA800SU-37 Switch
Switch Lever
38 PGA800SU-38
PGA800SU-39 Trigger
39
40 PGA800SU-40 Housing Cover
41 PGA800SU-41 Cable Protector
PGA800SU-42 Self Tapping Screw
42
43 PGA800SU-43 Power Cord
44 PGA800SU-44 Spanner
Side Handle
45 PGA800SU-45
PGA800SU-101 Rotor Set
101
102 PGA800SU-102 Fore Housing Assembly
103 PGA800SU-103 Fore Cover Assembly
PGA800SU-104 Guard Set
104
105 PGA800SU-105 Brush Holder Assembly
106 PGA115SU-106 Grinding Disc
16
MODEL NUMBER 172.417730
Qty.
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
