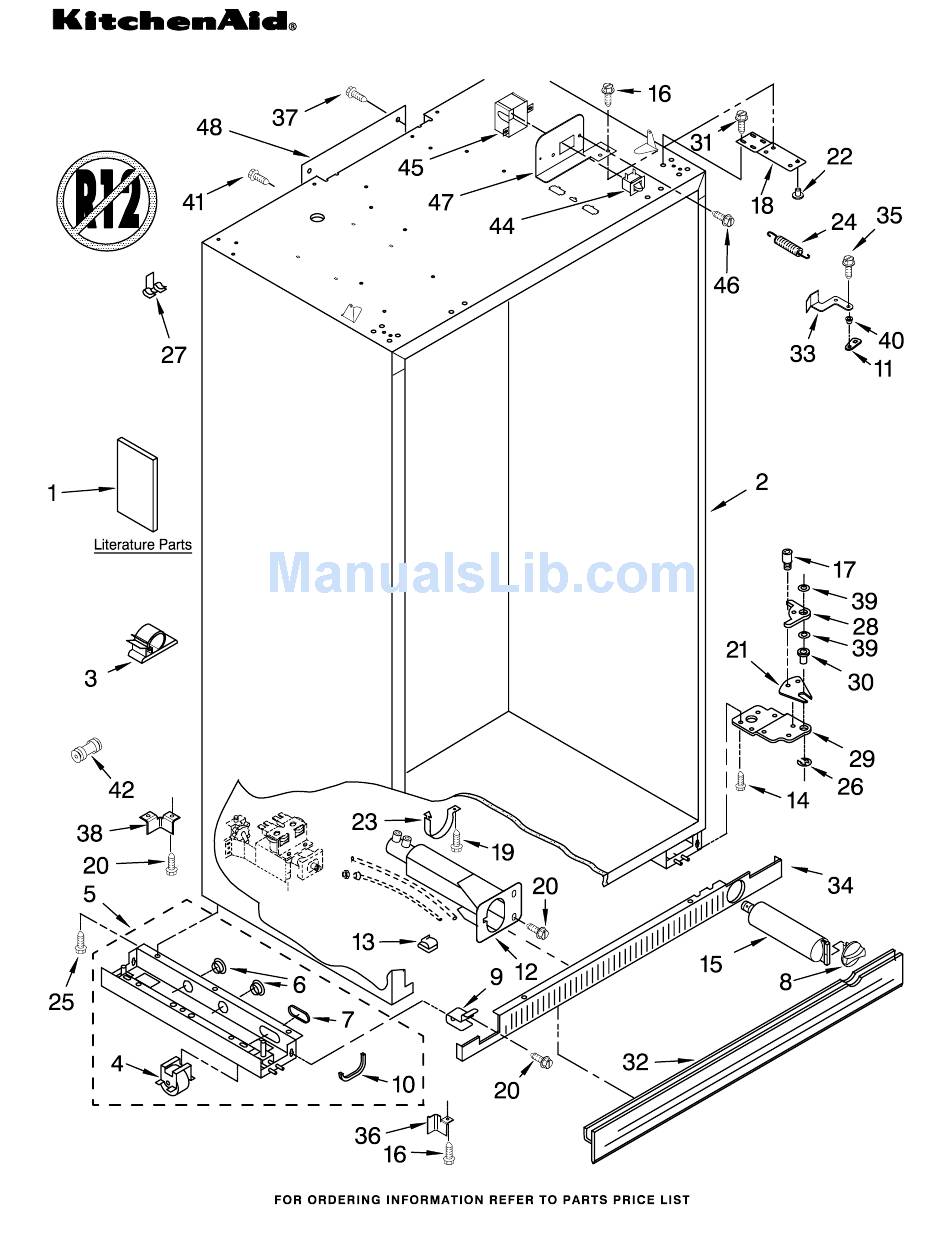

CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00
(White)
(Black)
(Etched Aluminum)
4−04 Litho In U.S.A. (mek)
1
Part No. 8198485

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36QMB00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS36QMB00

Summary of Contents for KitchenAid KSSS36QMB00

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 4−04 Litho In U.S.A. (mek) Part No. 8198485...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Extension Arm, 3400525 Screw Literature Parts 2255709 Filter, Water Door Closer LIT2266808 Use & Care Guide 489399 Screw 2221095 Right LIT2266813 Energy Label 3400230 Screw, Door Stop 2221094 Left...
  • Page 3 CABINET TRIM PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552W White 2222552B Black 2222552X Etched Aluminum Screw 8281251 White 8281252 Black 8281250 Stainless Steel 2254724 Cabinet, Trim (Bottom) 486194 Screw 2257366 Cabinet, Trim Top Cabinet Trim (Left Side)

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2256203 Wire, Shelf 2259002 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 8198485...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid, Meat Pan Baffle 2257526 Baffle, Control Assembly...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2215715 Control Box 2215670 Insert, Control 2252110 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2258914 Panel Control Meat Pan 2221121 Support, Control 489006 Screw (2) 2252067 Touch Pad, Meat 2252068 Display Board, Temperature...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2257401W White 2257401B Black 2257401X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2259095 Cover, Unit Front 487415 Screw 2187429 Wire Assembly RC/FC Light Switch...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2256276 Glass, Meat Pan Cover 2256426 Glass, Crisper Cover 2257611 Trim, Glass Rear Side 2169935 Cover 2257581 Trim, Glass Rear 2252411 Crisper Pan (2) Slide, Meat Pan...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 2259385 Fan Motor 2187520 Harness, Evap Fan 2198665 Tube, P.C. Board Serviceable Part) 2220241 Insulation (4) 2169142 Fan Blade 2266805 Pad, Air Baffle...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2222960 Ice Bin 2222959 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic Handle, Door 2256473W White...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) 2252323W White 2252323B Black 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222813 Door Gasket, Magnetic Handle, Door 2256472W White 2256472B Black 2256472 Etched Aluminum...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187755 Wire Assembly Cover, Dispenser (Not Available− Order Item 25) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw Lever, Ice...
  • Page 21 UPPER UNIT PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 22 UPPER UNIT PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2221559 Inverter Box 487522 Screw 487294 Screw, Ground 489373 Screw, Compressor 857547 Wire Tie (2) 549193 Clamp, Cord Mounting (4) 2252363 Drier 2187625 Wiring Harness, 2223393 Compressor...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2300191 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2259352 Tube, Discharge 2213442 Thermistor 2257639 Clip, Thermistor...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) 8198485...
  • Page 26 ICEMAKER PARTS For Models: KSSS36QMW00, KSSS36QMB00, KSSS36QMX00 (White) (Black) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 488937 Clamp Tube 627985 Thermostat 2198641 Screw 2302756 Tube, Water Inlet (Also Order 2300104 Cover−Bottom, 2257538 Cover 542639 Cement Electrical 2212351 Mold &...
