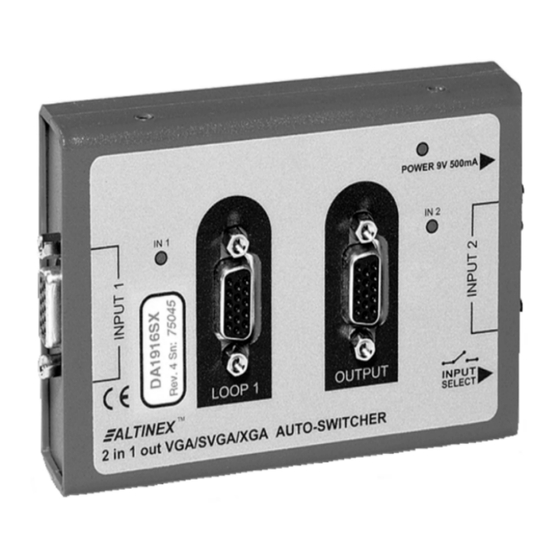

- Page 1 SWITCHERS MANUAL PART NUMBER: 400-0013-003 PRODUCT REVISION: 4 DA1916SX 2–IN, 1–OUT VGA AUTO-SWITCHER WITH LOOP OUTPUT USER’S GUIDE...
-
Page 2: Table Of Contents
INTRODUCTION Altinex appreciates your DA1916SX Switcher. We are certain that you will find it a reliable and useful product. Superior performance for the right price backed by solid technical and customer support is what we have to offer. The product you are holding in your hands is designed using state-of-the-art technology and is superior to anything available on the market. -
Page 3: Precautions / Safety Warnings
Please read this manual carefully before using your DA1916SX Switcher. Keep this manual handy for future reference. These safety instructions are to ensure the long life of your DA1916SX and to prevent fire and shock hazard. Please read them carefully and heed all warnings. -
Page 4: About Your Switcher
If two input signals active DA1916SX will default to Input 2. Please note that the DA1916SX may be custom modified at the factory upon request so that it will default to Input 1 instead of Input 2. -
Page 5: Description Of Da1916Sx
Sync on Green Impedance Frequency Compatibility Horizontal Vertical Typical Video Bandwidth Cross-talk Coupling Power External Power Adapter Power Consumption Table 3. DA1916SX Electrical DESCRIPTION OF DA1916SX TTL(+/-), analog 0.3V-1.0V -0.3V 10 k Ohms 1.5V p-p max 75 Ohms TTL(+/-), analog 0.3V-1.0V -0.3V... -
Page 6: Auto-Switch Mode
When switching a RGsB signal, the DA1916SX will automatically sense the sync from the green channel. When two active sources are present, the DA1916SX selects Input 2 as the default. 4.2 MANUAL SWITCH MODE The DA1916SX can be controlled manually by connecting a contact closure control switch to the channel select port of the DA1916SX. -
Page 7: Installing Your Switcher
Step 6. If a control system is used to control the DA1916SX, connect the channel select port of the DA1916SX to the relays port of the control system. Step 7. Verify that the picture quality on the display is good. If a signal is not being... -
Page 8: Frequently Asked Questions
TROUBLESHOOTING GUIDE We have carefully tested and have found no problems in the supplied DA1916SX unit; however, we would like to offer the following suggestions Please make sure that you have the correct setting Sync Source Switch. If RGBS signal formats are passed, the switch must be in the SYNC position. -
Page 9: Altinex Policy
11.2 RETURN POLICY It is very important to Altinex that you receive the products that you have ordered and that this product fulfills your need. In the unlikely event, that an Altinex product needs to be returned...
