Oki proColor pro900DP Assembly Manual

Oki proColor pro900DP Assembly Manual

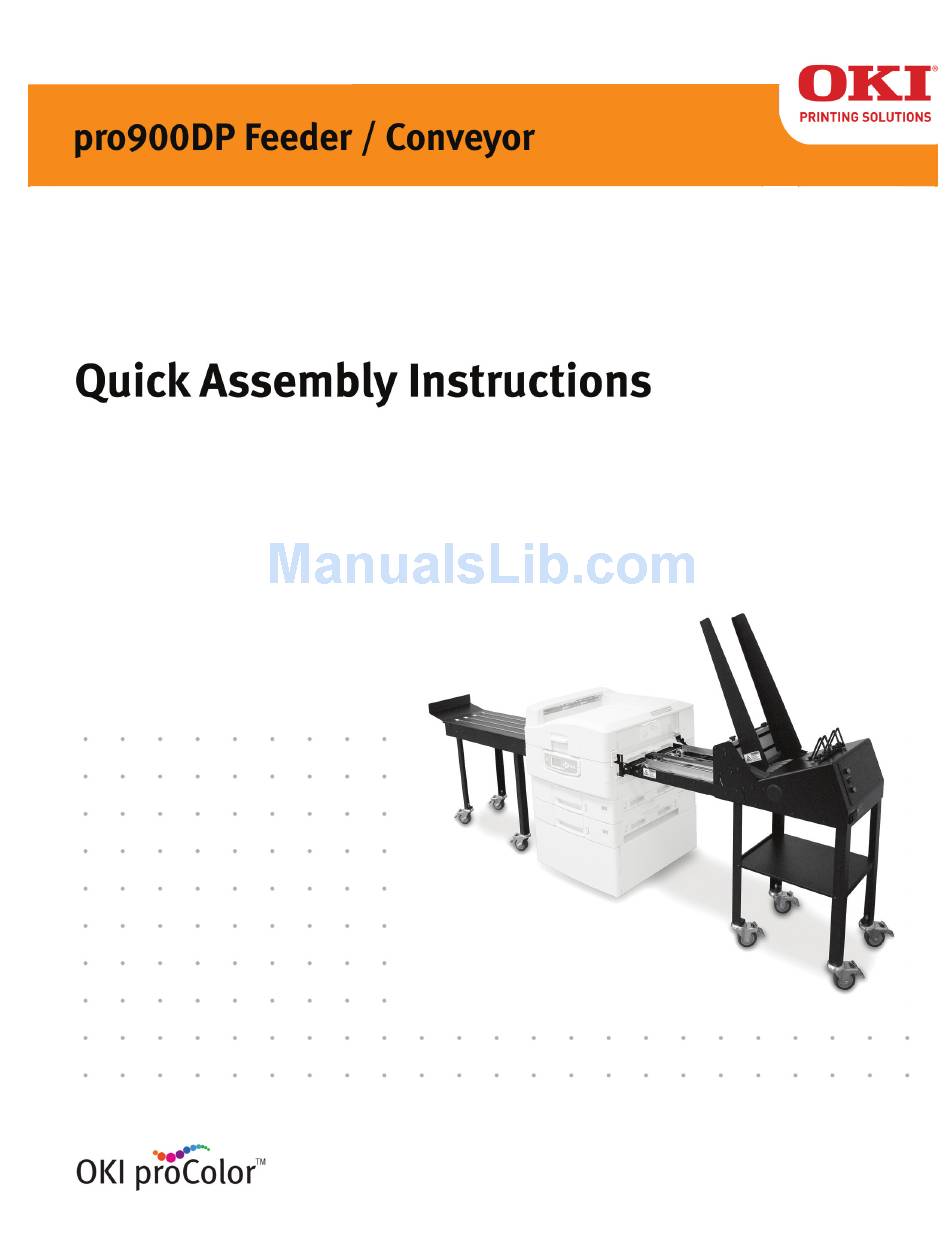

Pro900dp feeder/conveyor assembly guide
Hide thumbs Also See for proColor pro900DP:

Advertisement

Quick Links

Download this manual See also: Manual and Warranty, User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the proColor pro900DP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oki proColor pro900DP

Summary of Contents for Oki proColor pro900DP

  • Page 2: Copyright Information

    The most up-to-date drivers and manuals are available from the web site: http://www.okiprintingsolutions.com Trademark Information ______________________________ Oki and Microline are registered trademarks of Oki Electric Industry Company Ltd. EFI, Fiery, the Fiery logo and Spot-On are registered trademarks of Electronics for Imaging, Inc.
  • Page 3 Contents of Box - Feeder Wedge Legs Side guides Hardware bag Shelf Casters Accessories bag Contents of Box - Conveyor Legs and casters Catch tray Hardware bag Power cord...
  • Page 4 On the printer, disengage the paper inlet from bypass tray and remove bypass tray: Open the bypass tray to expose the hinge Support arms mechanism on both sides. Locate the two white plastic support arms. Rotate the locking lever up ¼ turn on both hinges to unlock the inside arms from the out- side arms.
  • Page 5 4. The outside arms have a flange that moves along a slot. Ease open the slot at its center to free the flange. Rotate the outside arms up and slide inward off of the cross peg. Arm removed. Flip up and close the paper inlet door.
  • Page 6 Locate the small white lift arm (not the support arm) on each side of the bypass tray. Push both of these in to create the clearance for the bypass tray to release upward. Springs under the bypass tray will lift the upper section of the tray to expose a T-lock on the left side.
  • Page 7 10. Pull the release lever on the left side to open the hatch. Hatch opened. 11. Slide the bypass tray to the left (back of printer) to free it from the mounting pegs on each side and free the bypass tray. 12.
  • Page 8 13. Close the hatch. Install reflector on printer: 1. Peel protective tape off the back of the reflec- tor. 2. Adhere the reflector onto the printer, just left of the upper intake roller. On the printer, remove the output tray: Open the output tray.
  • Page 9 Push both curved arm brackets toward the back of the printer to release them. Bracket released. Slide the tray to the front to release the back (left) peg and out to remove it from the front (right) mounting peg. Tray removed.
  • Page 10 Install feeder onto stand: NOTE: Refer to Product Guide for complete parts list. Install casters onto legs by removing the top nut from each caster, inserting the caster bolt into the threaded leg hole and replacing the nut. Bolt one leg set to each end of the shelf plate using the washers and bolts for each set.
  • Page 11 Install side guides on feeder: Install the side guides to the outside holes as shown using four #10-32 X 1/2 screws. Install side guides. Install accordion guards on feeder: Attach the accordion guards as shown using the Velcro strips. Install accordion guards. Install wedge on feeder: Insert the round t-nut of the wedge into the round hole of the slot as shown.
  • Page 12 Attach feeder to printer: Locking bracket 1. On the end of the discharge, locate the mount- ing bracket that does not have the sensor (on the right side when facing the unit from the discharge end). This bracket is mounted back- wards for shipping purposes only. Remove the two socket head cap screws to remove the mounting bracket.
  • Page 13 Slide the "C opening" on to the lower mounting knobs of the printer. Slide the locking brackets (with the circular Locking opening) outward to engage on to the upper bracket mounting pegs on the printer. Tighten mounting thumb screws. Lock the casters on the feeder stand. 10.
  • Page 14 11. To spring load the short discharge belt, lift the short discharge belt assembly to expose the mounting pegs for the springs. Install each end of each spring on to the pegs. Lift Pegs Pegs Short discharge belt assembly. Attach the springs. Lower the assembly. 12. While holding the spring loaded belt assembly down, open the printer inlet to then hold the belt assembly down.
  • Page 15 13. Ease the white plastic bracket arm on the printer (both sides) carefully inward and then down until the mounting peg inserts into the slot on the mounting bracket. 14. Install the power cord. Move inward and down. Insert into slot. Assemble the conveyor: Attach the legs to the conveyor using two bolts and nuts for each leg.
  • Page 16 2. Attach the catch tray using three flat head screws and two button head cap screws to se- cure it. Rollup conveyor to printer: 1. Center the conveyor to the printer, with the sen- sor end of the conveyor toward the output tray side of the printer. Lock the casters on the conveyor. Install power cord.
  • Page 18 OKI ® Oki Electric Industries Company, Ltd. 59405601 © 2010 Oki Data Americas, Inc.
