5. Remove the 3 cartridge "stop" screws (T-15).

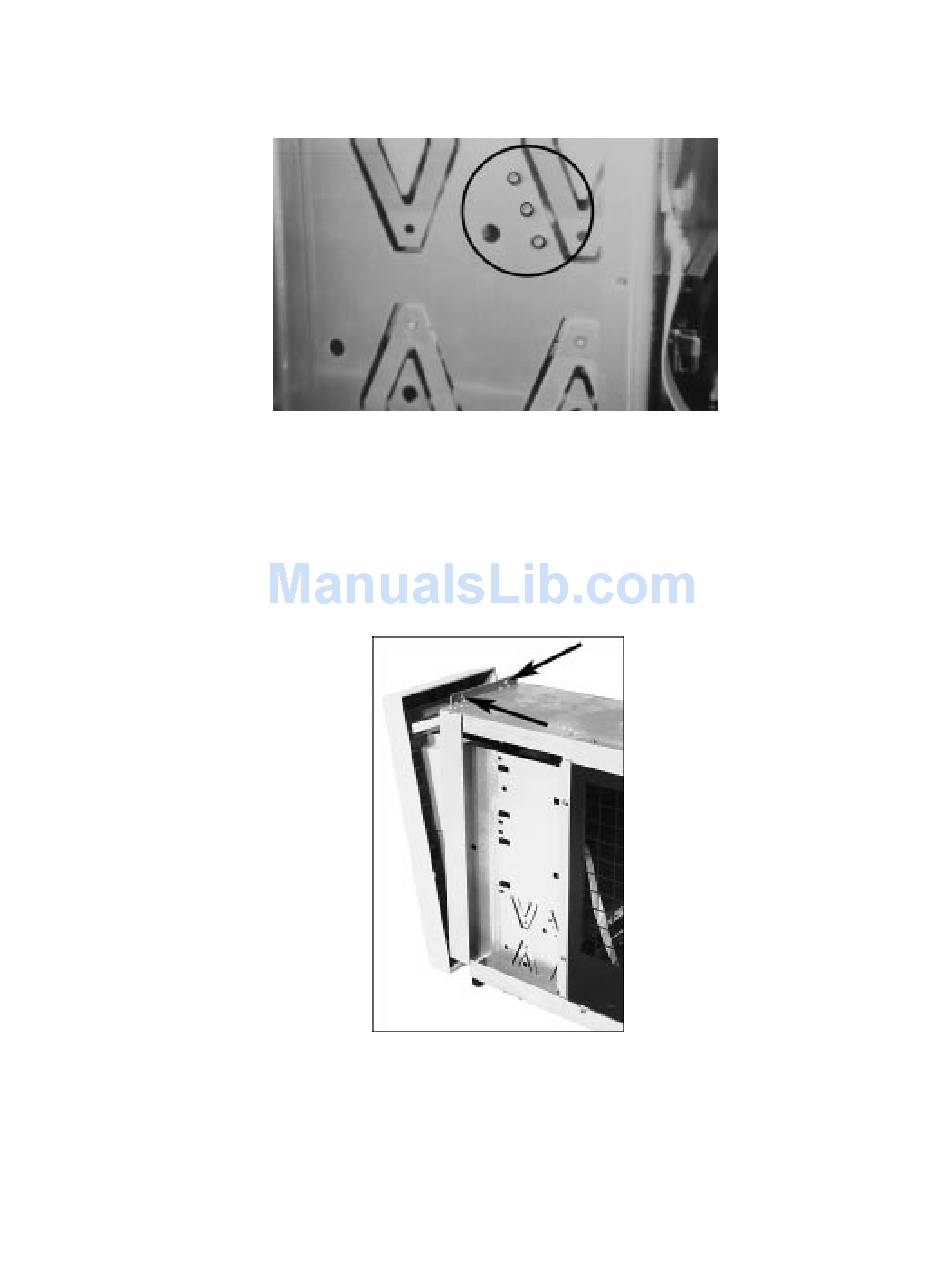

Figure 4: Cartridge "stop" screws

Accessing Components in the Front Bezel

6. Remove the two T-25 screws that secure the front bezel to the chassis. These screws are located

behind the bezel as shown in Figure 5.

Figure 5: Front bezel mounting screws
