KitchenAid KBFO42FSX00 Parts List

42" bottom mount built in refrigerator
Hide thumbs Also See for KBFO42FSX00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Instruction and Installation Manual

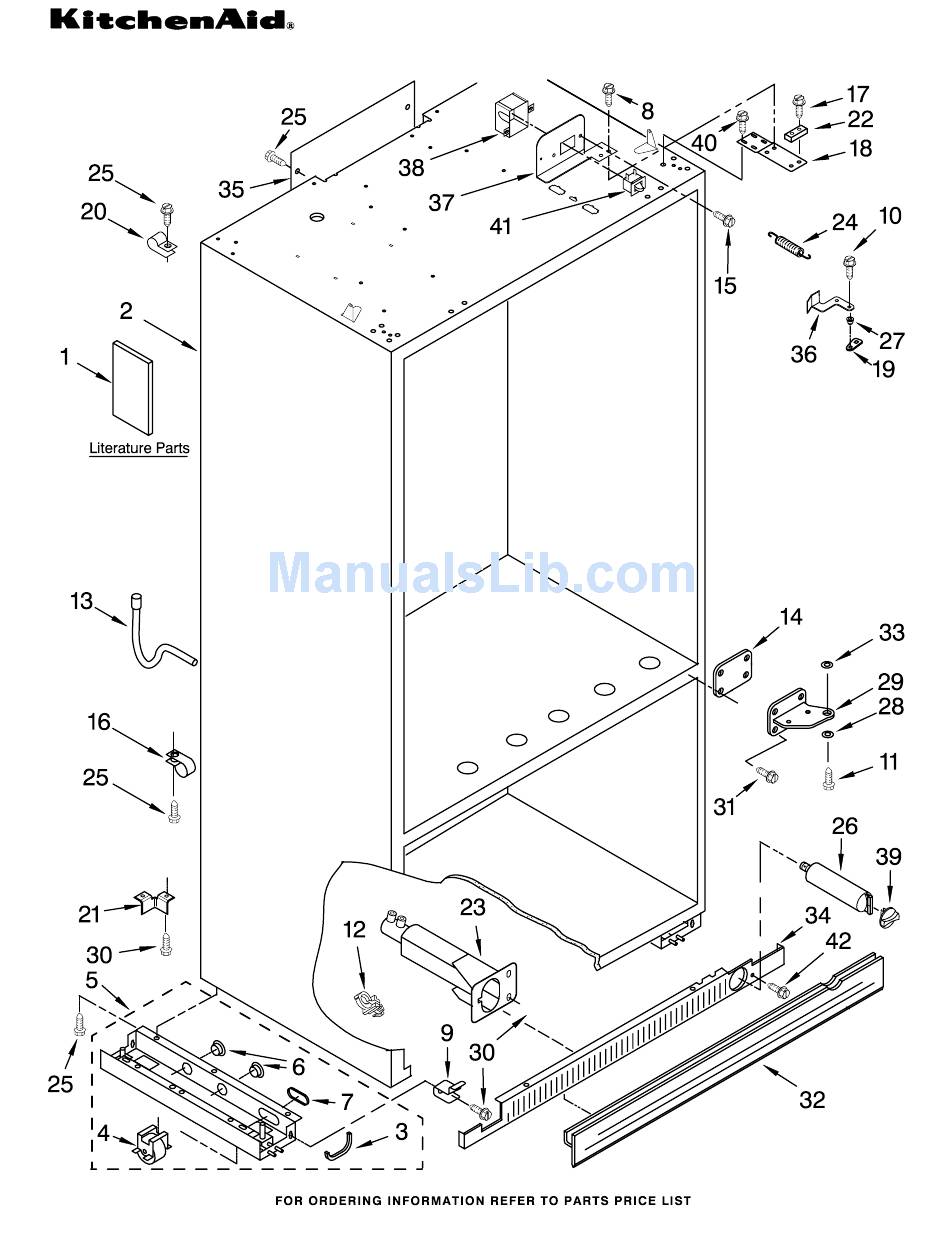

CABINET PARTS
42" BOTTOM MOUNT
BUILT IN REFRIGERATOR
For Model: KBFO42FSX00
(Brushed Aluminum)
9−06 Litho In U.S.A. (dmm)
1
Part No. 8214881 Rev. C

Advertisement

Table of Contents
loading

Related Manuals for KitchenAid KBFO42FSX00

Summary of Contents for KitchenAid KBFO42FSX00

  • Page 1 CABINET PARTS 42" BOTTOM MOUNT BUILT IN REFRIGERATOR For Model: KBFO42FSX00 (Brushed Aluminum) 9−06 Litho In U.S.A. (dmm) Part No. 8214881 Rev. C...

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2006442 Mounting Bracket, 2004994 Bushing, Hinge (2) 2317821 Use & Care Guide Grill (Lock−Adjustable) 2309317 Energy Label 10 W10004850 Screw 2302889 Hinge, Bottom 2316852 Service &...
  • Page 3 CABINET AND BREAKER TRIM PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION Breaker, Trim (Not Serviced) 2317102S Cabinet Trim, Right Side 1163283 Screw 2307783 Cabinet Trim, Bottom 486194 Screw 2313961S Cabinet Trim, Top Cam, Mullion 2316857 Top 2316858 Bottom 2005782 Cover, Hinge 2005925 Seal−Trim,Side 2317103S Cabinet Trim,...
  • Page 4 TOP GRILLE AND UNIT COVER PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2317080S Top Grille Assembly 2320502 Cover, Unit 2317881 Grille, Condenser 2256466 Back Panel 2307682 Front, Unit Cover 487415 Screw 2187946 Wire Assembly, Light Switch 489348 Clamp 2003347 Tee Bolt (4) 1161548 Nut (4) 8214881...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION Liner, Refrigerator (Not Servicable) 2317004 Cover, Air Return (2) 2309244 Control Box (Complete) 2317000 Clip, Control Box 2317046 Bracket, Light Shield 2309248 Shield, Light 487539 Screw, 8−15 x 1/2 488163 Screw 2223857 Socket, Light (3) 2309101 Bulb, Light (3)

  • Page 7: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 8 FREEZER LINER PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION Liner, Freezer (Not Servicable) 2306425 Mounting Bracket, Drawer Slide (2) 3 W10071460 Screw 2309297 Drawer Slide, Freezer Basket (2) 5 W10061370 Screw 2314022 Cover, Light Switch 1118894 Switch, Rocker 486194 Screw 2223857 Socket, Light 2309101 Bulb, Light...

  • Page 9: Shelf Parts

    SHELF PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 10 SHELF PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION Crisper Pan Assembly (Includes # 2) 2268173 Left 2268171 Right 2256247 Front, Crisper Pan Deli Pan Assembly (Incl. #4, 5 & 6) 2317940 Left 2317941 Right 2256365 Front, Deli Pan 2307810 Duct, Deli Pan 2317939 Air Deflector 2179404 Rack, Wine...

  • Page 11: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 12 REFRIGERATOR DOOR PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION Door, Refrigerator (Includes Item 2) 2307903 Left 2307902 Right 2268265 Gasket, Door 2320510 Hinge Assembly, 2256381 Spacer−Hinge, Top 489282 Screw, 10−32 x 3/4 2257647 Spacer, Hinge (Bottom) Bottom Hinge Assembly 2316752 Left 2316751 Right...
  • Page 13 FREEZER DOOR AND BASKET PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 14 FREEZER DOOR AND BASKET PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2257798 Freezer Door Panel (Includes Item 9) 2317101 Divider, Basket (2) 2314024 Mat, Basket 4 W10001170 Screw, 5/16 x 1 5 W10001160 Screw 2313999S Trim−Door, Side 2313998S Trim−Door, Top &...
  • Page 15 UPPER UNIT PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 16 UPPER UNIT PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2304175 Inverter Box 2252363 Drier Following Parts Not Illustrated 489373 Screw, Compressor 2215641 Bracket, Fan Motor and Optional Parts Not Included Mounting (4) 2206036 Motor, Fan 2302967 Compressor 2190685 Blade, Fan...
  • Page 17 LOWER UNIT AND TUBE PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 18 LOWER UNIT AND TUBE PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2309072 Tube, Transition (Condenser) 2309070 Tube, Transition (Drier/Restrictor) 486194 Screw 2307944 Clip 2307945 Bracket, Mounting 2309076 Tube, Suction 2306176 Heater, Defrost 2306178 Scroll Assembly 2223986 Grommet, Motor 2259385 Motor, Fan 2223733 Retainer, Fan Motor...

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Model: KBFO42FSX00 (Brushed Aluminum) 8214881...
  • Page 20 ICEMAKER PARTS For Model: KBFO42FSX00 (Brushed Aluminum) Illus. Part DESCRIPTION 486194 Screw 2221240 Heater, Fill Tube 489136 Screw (2) 2310108 Jumper, Heater Fill Tube 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2317848 Tube Assembly, Water Inlet 1106508 Seal Gasket 2316536 Tube, Filter Outlet 2309417 Valve, Solenoid 2307792 Cover, Bottom...
