Craftsman 919.152143 Owner's Manual

Permanently lubricated tank mounted
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

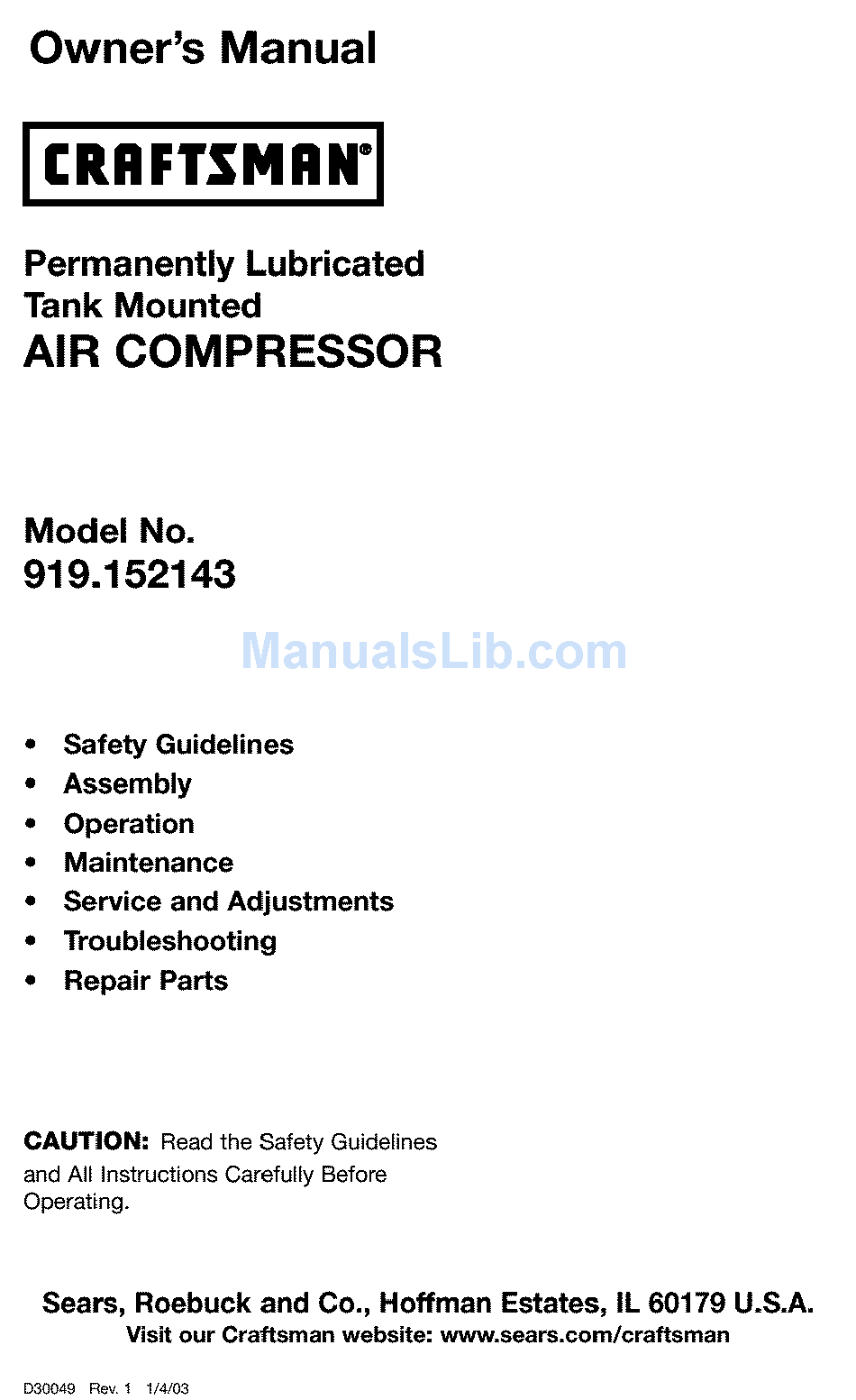

Owner's Manual
I (RRFTSMRNq
Permanently
Lubricated
Tank Mounted
AIR COMPRESSOR
Model No.
919.152143
•
Safety Guidelines
•
Assembly
•
Operation
•
Maintenance
•
Service
and Adjustments
•
Troubleshooting
•
Repair
Parts
CAUTION:
Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
D30049
Rev 1
1/4/03

Advertisement

loading

Related Manuals for Craftsman 919.152143

Summary of Contents for Craftsman 919.152143

  • Page 1 • Maintenance • Service and Adjustments • Troubleshooting • Repair Parts CAUTION: Read the Safety Guidelines and All Instructions Carefully Before Operating. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Visit our Craftsman website: www.sears.com/craftsman D30049 Rev 1 1/4/03...
  • Page 2 HOW TO ORDER REPAIR PARTS ...... back cover FULL ONE YEAR WARRANTY AIR COMPRESSOR If this CRAFTSMAN Air Compressor fails due to a defect in material or workmanship within one year from the date of purchase, Sears will at its option repair or replace it free of charge.

  • Page 3: Glossary

    Model No. g19,152143 Max. Developed Running HP Bore 47.625 Stroke 31.75 Voltage-Single Phase 120V Minimum Branch Circuit Requirement 10 amps Fuse Type Time Delay Air Tank Capacity Approx. Cut-In Approx. Cut-out SCFM @ 40 psig SCFM @ 90 psig Refer to Glossary for abbreviations.
  • Page 4 Save these instructions Improper operation or maintenance of this product could result in serious injury and property damage. Read and understand all warnings and operation instructions before using this equipment. ,l:1"l'J l l n WARNING: Risk of explosion or fire What Could Happen How To Prevent It It is normal for electrical...

  • Page 5: Accessories

    WARNING: Risk of Bursting Air Tank: The following conditions could lead to a weakening of the tank, and result in a violent tank explosion and could cause property damage or serious injury. How To Prevent It What Could Happen Drain tank dally or after each use. If Failure to properly drain condensed water from tank, causing rust and tank develops a leak, replace it...
  • Page 6 :f:1"4_;ll WARNING: Risk of Electrical Shock What Could Happen How To Prevent It Your air compressor is powered by Never operate the compressor outdoors electricity. Like any other electrically when it is raining or in wet conditions. powered device, If it is not used Never operate compressor with properly it may cause electric shock.
  • Page 7 WARNING: Risk of Burns How To Prevent It What Could Happen Never touch any exposed metal parts Touching exposed metal such as the on compressor during or immediately compressor head or outlet tubes, can after operation. Compressor will remain result in serious burns. hot for several minutes after operation.
  • Page 8 WARNING: Risk of Serious Injury or Property Damage When Transporting Compressor (Fire, Inhalation, Damage to VehicleSurfaces) What Could Happen How To Prevent It Oil can leak or spill and could result in Always place COMPRESSOR on a fire or breathing hazard; serious injury or protective mat when transporting death can result,...

  • Page 9: Duty Cycle

    Become familiar with these terms When the tank pressure drops to a certain low level the motor will restart before operating the unit. automatically. The low pressure at CFM: Cubic feet per minute. which the motor automatically SCFM: Standard cubic feet per restarts is called "cut-in"...

  • Page 10: Installation

    IMPORTANT: The outlet being used HOW TO SET UP YOUR must be installed and grounded in UNIT accordance with all local codes and ordinances. Location of the Air Compressor Make sure the outlet being used Locate the air compressor in a clean, has the same configuration dry and well ventilated area.
  • Page 11 Extension Cords Voltage and Circuit Protection Refer to the specification chart for the Using extension cords is not recommended. The use of extension voltage and minimum branch circuit requirements. cords will cause voltage to drop resulting in power loss to the motor Risk of Unsafe and overheating.
  • Page 12 Know Your Air Compressor READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Pressure Quick Switch Connect Tank...
  • Page 13 Air Compressor Pump (not shown): Compresses air into the air tank. Working air is not available until the compressor has raised the air tank pressure above that required at the air outlet. On/Auto/ Check Valve: When the air Off Lever compressor is operating, the check valve is "open", allowing compressed air to enter the air tank.
  • Page 14 How to Start: Before Each Start-Up: Place On/Auto/Off lever to Turn the On/Auto/Off lever to "AUTO" and allow tank pressure "OFF" and close air regulator. to build. Motor will stop when Pull regulator knob out, turn tank pressure reaches "cut-out" counterclockwise until it stops.
  • Page 15 Customer Responsibilities Before Daily or each after each _heck Safety Valve • )rain Tank • To Drain Tank Risk of Unsafe Operation. Unit Set the On/Auto/Off lever to cycles automatically when power is "OFF" and unplug unit. on. When servicing, you may be Pull the regulator knob out and exposed to voltage sources, turn counterclockwise...

  • Page 16: Maintenance

    NOTE: The hose clamp is not ALL MAINTENANCE AND REPAIR reusable. You must purchase a new OPERATIONS NOT LISTED MUST hose clamp, see the ParLs List BE PERFORMED BY A TRAINED Manual or purchase a standard hose SERVICE TECHNICIAN. clamp at a local hardware store. Unscrew the check valve (turn _Risk of Unsafe...
  • Page 17 Assemble the regulator and To Replace Regulator orient as shown. Release all air pressure from air tank. See "To Drain Tank" in the Maintenance section. Set the On/Auto/Off lever to "OFF" and unplug unit. Using an adjustable wrench remove the outlet pressure gauge and quick connect from the regulator.
  • Page 18 Before you store the air compressor, Risk of Bursting. make sure you do the following: Water will condense in the air tank. If not Review the "Maintenance" drained, water will corrode and section on the preceding pages weaken the air tank causing a risk and perform scheduled of air tank rupture.

  • Page 19: Service And Adjustments

    d:{ollJ :] il ::F,."] -" [oIo]l III _[I Risk of Unsafe Operation. Unit cycles automatically when power is on. When servicing, you may be exposed to voltage sources, compressed air, or moving parts. Before servicing unit unplug or disconnect electrical supply to the air compressor, bleed tank of pressure, and allow the air compressor to cool.
  • Page 20 PROBLEM CAUSE CORRECTION Pressure reading It is normal for "some" If there is an excessive on the regulated )ressure drop to occur. amount of pressure drop pressure gauge when the accessory is used, drops when an adjust the regulator following accessory is the instructions in the...
  • Page 21 PROBLEM CAUSE CORRECTION Regulator will Damaged regulator. Replace. not shut off air outlet. Motor will not Let motor cool off and Motor overload protection run. overload switch will switch has tripped. automatically reset. Motor will start automatically Tank pressure exceeds pressure switch "cut-in"...
  • Page 22 Air Compressor Model Number 919.152143 \\\\7 D30049 22- ENG...
  • Page 23 Air Compressor Model Number 919.152143 PART NUMBER DESCRIPTION Z-D24671 Tank SST-1O8 Recess Rubber Bumper (3 used) 91895680 Screw (3 used) SSF-621 Screw (2 used) D24888 Nipple, 1/4-18 NPT X 2.50 AC-0430 Drain Valve D20114 Safety Valve D27253 Regulator Quick Connect 1/4 NPT D20675 Z-D27212 Gauge 2"...
  • Page 24 Air Compressor Model Number 919.152143 Torque 30-45 in. Ibs "\\\\\ Hand Tight Torque 10 inlbs D30049 24_ ENG...
  • Page 25 Air Compressor Model Number 919.152143 PART NUMBER DESCRIPTION CAC- 1320 Shroud (left) D25735 Shroud (right) D25877 Head CAC-1212 Tube Seal D22253 Outlet Tube Z-D24819 Head Gasket Z-D29777 Valve Plate Assembly SSG-8169 O-Ring 2.132/2.0961D .073/.067W +> Cylinder Sleeve SSF-3147 Screw, 3/8-16UNC Socket Head >...

  • Page 26: Notes/Notas

    GARANT|A TOTAL DE UN AI_IO DEL COMPRESOR DE AIRE Si este compresor de aire Craftsman fallase debido a defectos de materiales o de fabricaci6n dentro del aSo de su fecha de compra, Sears, a su opei6n, Io reparar& o reemplazar& sin eosto alguno.
  • Page 27 Modelo N ° 919-152143 Max. HP desarrollado 1 HP Potencia de trabajo Di&metro interior 1,875 (47,625mm) Carrera 1,250 (31,75mm) 120V Voltaje-corriente manofAsica Circuito mfnimo requerido Tipo de fusibleAcci6n retardada Capacidad de aire en el tanque 4 Galones (15,1 Iitros) Presi6n de eorte de entrada 120 psig Presi6n de corte de salida 150 psig...
  • Page 28 GUARDE ESTAS INSTRUCCIONES La operaciSn o el mantenimiento inadecuados de este producto podrian ocasionar serias lesiones y dafios a la propiedad. Lea y comprenda todas las advertencias instrucciones de funcionamiento antes de utilizar este equipo. ',]=lm [_ ;{_ ADVERTENCIA: Riesgo de Explosi6n o Incendio qud puede occurrir cbmo...
  • Page 29 d=1![t-];{q F 3%q ADVERTENCIA: Riesgo de Explosi6n T_ue de aire: Ins siguientes condiciones poddan, causar el debilitamiento del tanque, determinar su explosi6n violenta, dafios a la propiedad o serias lesiones. qud puede occurrir c6mo ptevenido Drenaje inadecuado del agua condensada Drene el tanque diariamente o despu_s de...
  • Page 30 _=l![et;{i ADVERTENCIA: Riesgo de choque eldctrico puede occurrir c6mo prevenirlo Su compresor de aire est_ 8ccion ado por Jamas opere el compresor a la intemperie electricidad. Como cualquier otto dispositivo cuando est& Iloviendo o en condic+ones de el_ctrico impulsado el6ctricamente, si no se Io humedad.
  • Page 31 ADVERTENCIA: Riesgo de Quemaduras qu_ puede occurrir c6mo prevenirlo Jam&s toque partes de metal expuestas en el Tocar el metal expuesto tal como el cabezal compresor duraqte o inmediatamente despu_s del compresor o los tubos de salida del de la operaci6n, el compresor permanecerd escape, puede ocasionarle serias...
  • Page 32 ADVERTENCIA: Riesgo de Serias Lesiones o Da_os a la Propiedad al Transportat el Compresor (Fuego, inhalacibn, da_o a la superficie de vehlculos) qud puede occurrir c6mo prevenido 'J=1![_1;{_ ADVERTENCIA: Riesgo de Operacibn Insegura qud puede occurrir c6mo prevenirlo La operacion insegura de su compresor Revise y comprer_la todas las instrucciones y...
  • Page 33 Presibn minima de corte: Cuando el Familiarfcese con los siguientes t6rminos, motor esta apagado, la presion del tanque antes de operar la unidad: de aire baja a medida que usted contint_a OFM: (Cubic feet per minute) Pies cQbicos usando su accesorio. Cuando la presiSn por minuto.
  • Page 34 C(_MO PREPARAR LA UNIDAD AsegQrese de que el tomacorriente que ser& utilizado tenga la misma configuracion que el enchufe de Ubicacibn del compresor de aire conexi6n a tierra. NO UTIMCE UN Ubique al compresor de aire en una zona ADAPTADOR. Ver figura.
  • Page 35 Cables de extensibn eldctrica Proteccibn del voltaje y del circuito No se recomienda la utilizaci6n de cables Acerca del voltaje y ]a minima cantidad de de extensi6n el_ctrica+ El uso de cables circuitos requeridos, refierase al cuadro de de extensi6n el_ctrica originar& una caida especificaeiones.
  • Page 36 Conozca su compresor de aire LEA ESTE MANUAL DEL PROPIETARIO Y SUS NORMAS DE SEGURIDAD ANTES DE OPERAR LA UNIDAD. Compare las ilustraciones contra su unidad a fin de familiarizarse con la ubicaci6n de los distintos controles y regulaciones. Conserve este manual para referencias futuras.
  • Page 37 Bomba de compresibn del aire (no mostrada): Comprime el aire dentro del tanque. El aire de trabajo no se encuentra disponible haste que el compresor haya alcanzado a Ilenar el tanque hasta un nivel de presi6n per encima del requerido pare la salida del aire.
  • Page 38 Antes de cada puesta en marcha: C6mo poner en marcha: CoJoque el interruptorOn/Auto/Off en la Mueva la palanca On/Auto/Off a la posicidn "OFF" y cierre el reguiador de posici6n "AUTO" y deje que se aire. incrementala presi6n del tanque. El motor se detendr_ una vez alcanzado el Tire de la perilla del regulador, gffe en valor de presi6n "de corte"...
  • Page 39 Responsabilidades del cliente Antes _iadamente cada _luego de _ada u so Verifique la v_lvula de seguridad • Drenaje del tanque Cbmo drenar el tanque Riesgo de Operaci6n Apagar la unidad colocando Insegura: La unidad arranca interruptor an On/Auto/OFF automdticamente cuando esta ,,OFF..
  • Page 40 TODO TIPO DE MANTENIMIENTO NOTA: La abrazaderade ta manguerano os OPERACIONES DE REPARACION NO reuti3izable. Debera comprarse una nueva MENCIONADOS, DEBEP_N SER abrazadera,vet la lists de partesdel manuel o EFECTUADOS POR PERSONAL TI_CNICO compre una abrazadera_.Ander en cualquier ESPECIALIZADO. comerciode ferreteria. Riesgo de DesenrosqueIsv_lvu3areguladora(gireen Operaci6n...
  • Page 41 Ensamble el regulador y ori6ntelo de Para reemplazar el i_gulador acuerdo a Io mostrado. Libere toda ta presi6n del aire del tanque. Vea "Drenaje del tanque" en la secci6n "Mantenimiento", Apagar la unidad colocando interruptor en On/Auto/OFF Regulador "OFF". Utilizando una Ilave regulable, extraiga el man6metro de presi6n extema y la conexi6n r_pida del regulador.
  • Page 42 Antes de guardar se compresor de eire, Riesgo de Explosibn. El asegQrese de hacer Io siguiente: ague se condensa dentro del tanque de Revise la seecion "Mantenimiento" aire. Si no se drena, ella corroera de Iss p&ginas precedentes y ejecute debilitando le parecles del tanque de el mantenimiento...
  • Page 43 Riesgo de Operaci6n Insegura: La unidad arranca automaticamente cuando esta enchufada. AI hacer el mantenimiento, el operador puede quedar expuesto a fuentes de corriente y de aire comprimido o a piezas movibles. Antes de intentar hacer reparaciones, desconectar el compresor del tomacorriente, drenar la presi6n de aire del tanque y esperar a que el compresor...
  • Page 44 PROBLEMA CORRECCI(_N CAUSA Si hubiese ana caida exoesiva de La lectura de la Es normal qae ocurra algt_n )resi6n durante el uso del descenso an la presi6n, prasion sobra un accesorio, ajuste el regulador de manomatro acuerdo alas instrucciones de la viene aquipado section Operacion.
  • Page 45 CORRECCI6N PROBLEMA CAUSA El motor no Fusiblefundido;interruptor Vefilque la caja de fusibles observando funciona, autom_ticodel circuitodisparado. la existencia de fusibles fundidos y sustt_yalos en caso de necesidad. Rsetablezca el interruptor autom_tico. No use unfusible o interruptcrautom_ico con valorse que excedan los especificados para la rama de su circuito, Venfique el uso del fusible adecuado.
  • Page 46 D30049 46_ S P...

  • Page 47: Repair Protection Agreements

    Protection Agreements Reparaciones Congratulations on making a smart Felicitaciones per hater una compra purchase. Your new Craftsman '_ product is inteligente, Su nueva unidad Craftsman ® est& designed and manufactured for years of diseffada y fabricada para afros de operaci6n dependable operation.
  • Page 48 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
