Table of Contents

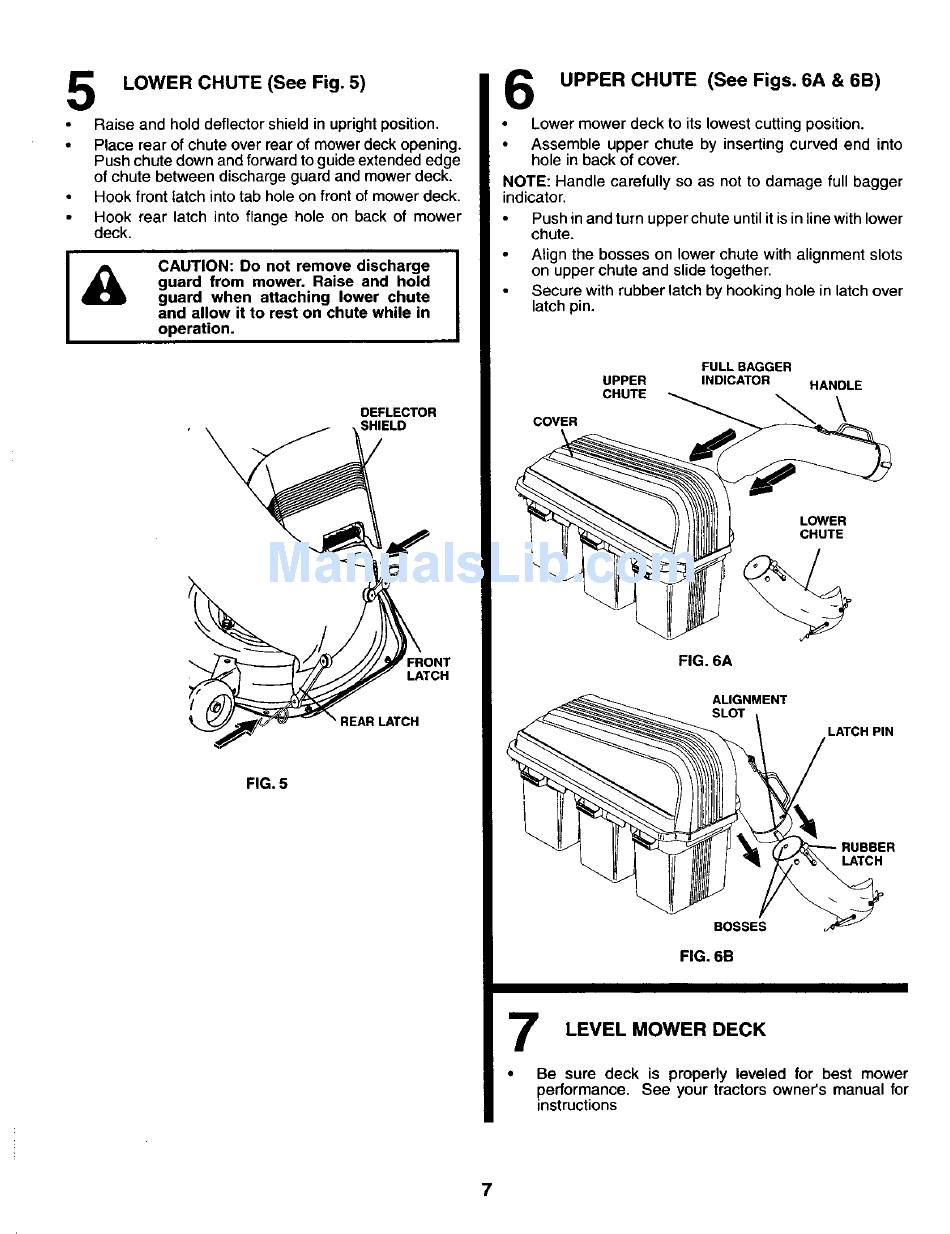

LOWER
CHUTE
(See Fig. 5)
Raise and hold deflector shield in upright position.
Place rear of chute over rear of mower deck opening.
Push chute down and forward to guide extended edge
of chute between discharge guard and mower deck.
Hook front latch into tab hole on front of mower deck.
Hook rear latch into flange hole on back of mower
deck.
|
CAUTION: Do not remove discharge
|
guard from mower. Raise and hold
I
guard when attaching
lower chute
and allow it to rest on chute while in
operation.
\
DEFLECTOR
SHIELD
FIG. 5
UPPER
CHUTE
(See
Figs.
6A & 6B)
Lower mower deck to its lowest cutting position.
Assemble upper chute by inserting curved end into
hole in back of cover.
NOTE: Handle carefully so as not to damage full bagger
indicator.
Push in and turn upper chute until it is in line with lower
chute.
Align the bosses on lower chute with alignment slots
on upper chute and slide together.
Secure with rubber latch by hooking hole in latch over
latch pin.
COVER
FULL BAGGER
UPPER
INDICATOR
HANDLE
CHUTE
\
LOWER
CHUTE
FIG. 6A
ALIGNMENT
SLOT
LATCH PIN
RUBBER
LATCH
BOSSES
FIG. 6B
LEVEL MOWER
DECK
Be sure deck is properly
leveled for best mower
performance.
See your tractors owner's manual for
instructions
7
