CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Model: KSSO36FMX02
(Etched Aluminum)
11−05 Litho In U.S.A. (mek)
1
Part No. 8214652

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSO36FMX02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSO36FMX02

Summary of Contents for KitchenAid KSSO36FMX02

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSO36FMX02 (Etched Aluminum) 11−05 Litho In U.S.A. (mek) Part No. 8214652...

  • Page 2: Cabinet Parts

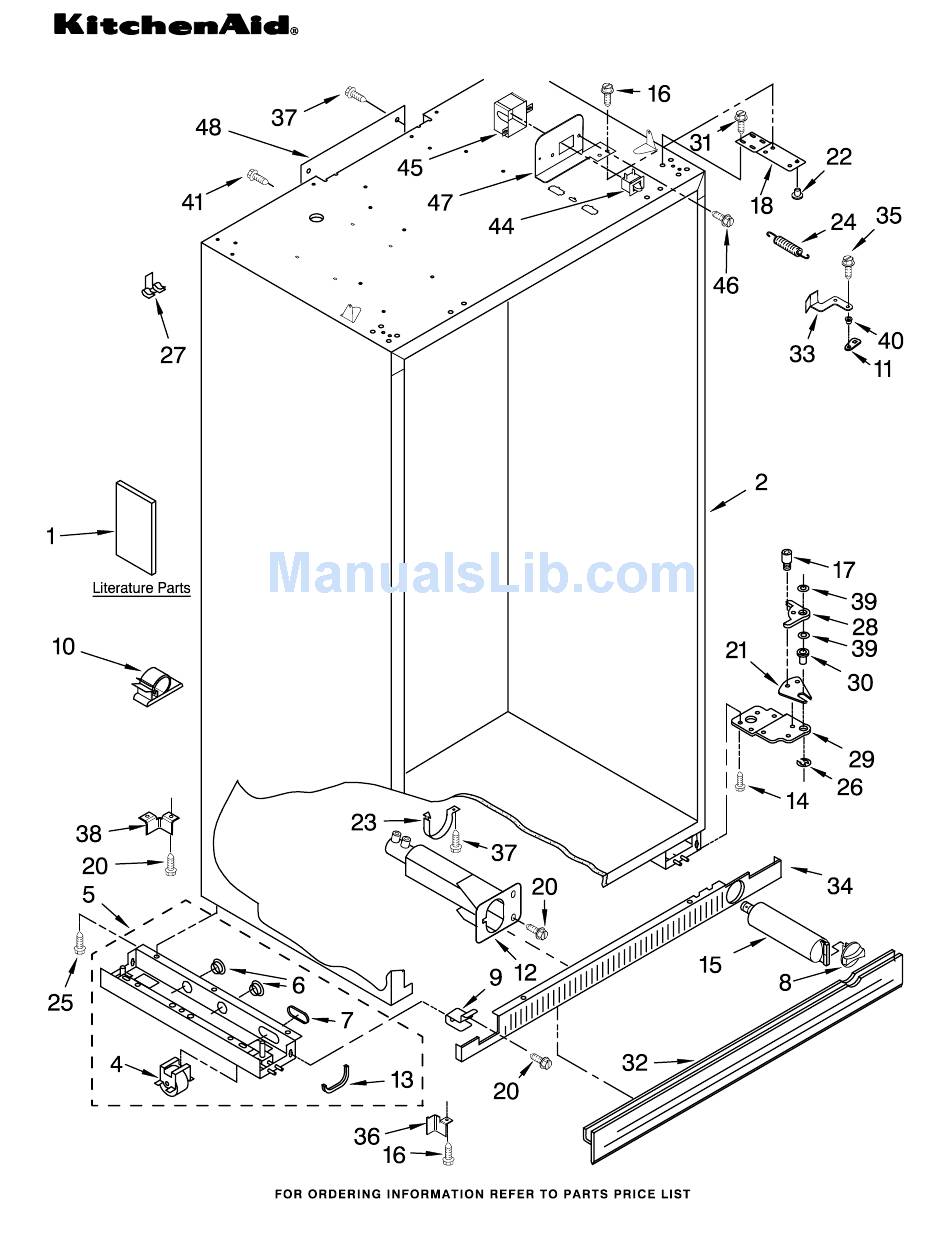

    CABINET PARTS For Model: KSSO36FMX02 (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2005004 Grommet, Crossover Extension Arm, 2317086 Use & Care Guide Tube Door Closer 2307362 Energy Label 3400525 Screw 2266882 Right 2306324 Service & Wiring 2255709 Filter, Water 2266881 Left Sheet...
