- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSC48QVS00 (Stainless Steel) Part No. W10180982 Rev. A 03−08 Litho In U.S.A. (mat)
-

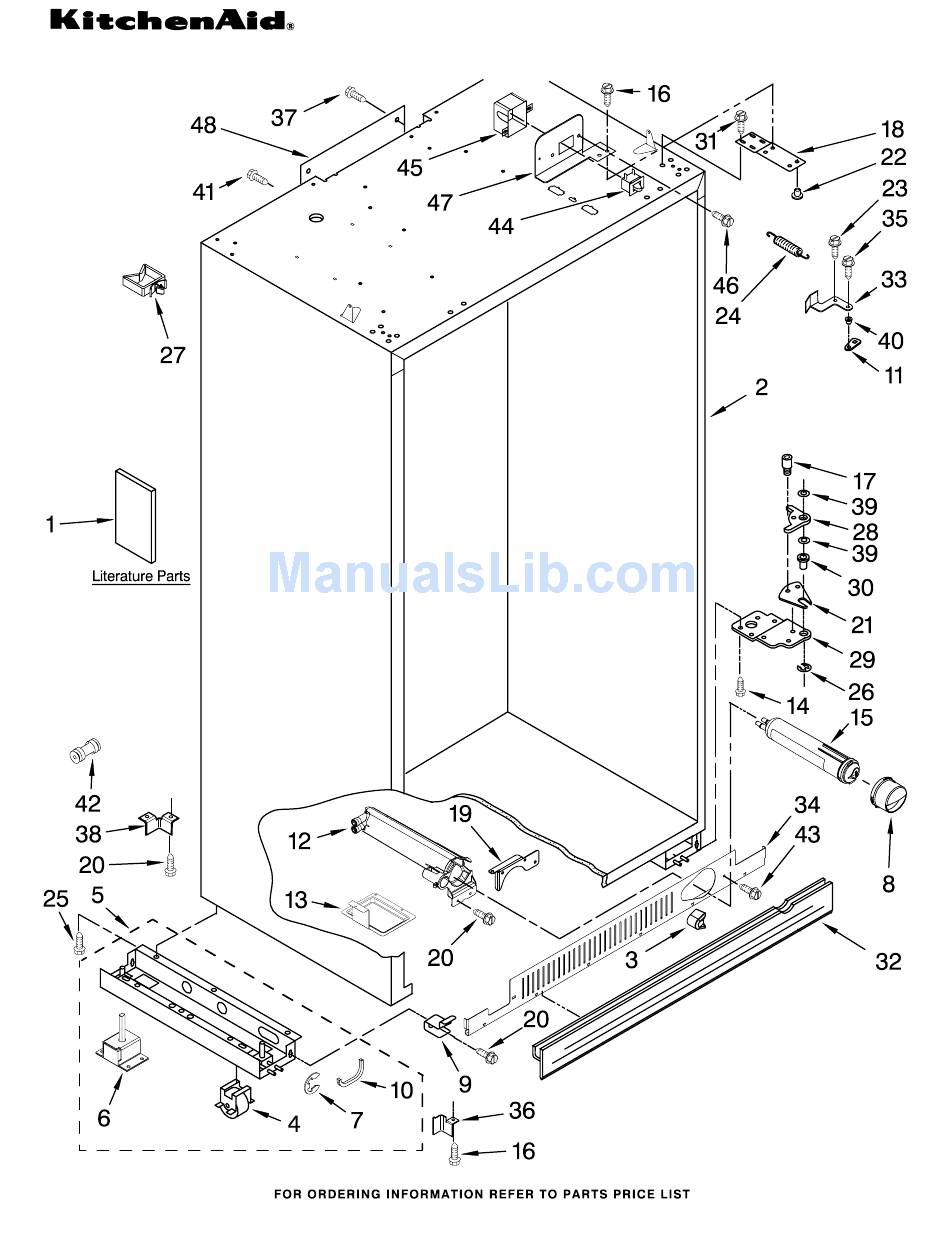

Page 2: Cabinet Parts
CABINET PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2005783 Cam, Door Closer Extension Arm, W10161714 Use & Care Guide 2260526 Housing, Water Door Closer W10163489 Energy Guide Filter 2266882 Right W10159832 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316688 Cabinet, Trim (Bottom) 486194 Screw 2314018 Cabinet, Trim Top Cabinet Trim (Left Side) W10132541 Stainless Steel 8 W10121451 Nutsert (4) 2005925 Seal−Trim, Side 489464 Screw W10180982...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION 2302869 Wire, Shelf (4) 2302884 Shelf, Fixed (2) 2259083 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10180982... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2003577 Guard, Air Return 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 11 W10169528 Baffle Control...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION 2316546 Control Box 2317000 Clip, Box 2310390 Wire, Jumper 2324973 Bracket, Control Box 2307596 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10180982... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorative Assembly 2316738S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 2317923S Badge, Kitchen Aid 489348 Clamp 2004333 Nut...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION 2222593 Shelf Assembly (4) 2179404 Rack, Wine 2302843 Assembly, Meat Pan Cover 2302836 Assembly, Crisper Cover 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side Trim, Glass Front (Not Serviceable)
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259385 Fan Motor 2220904 Gasket (2) 2215650 Cover, Emitter 2198665 Tube, P.C. Board Evaporator Cover Liner (Not A 2169142 Fan Blade 2259493 Cover, Receiver Serviceable Part) 2223733 Retainer,...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION 2222970 Ice Bin 2 W10134777 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION 2252331 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222797 Rail, Lid 2222983 Gaasket, Utility 2222812 Door Gasket, Magnetic Skin, Door...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982... - Page 18 FREEZER DOOR PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10157905 Freezer Door (Includes #7) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222812 Door Gasket, Magnetic Handle, Door 2316868 Stainless Steel Spacer, Door−Skin (Handle Side) 2309060 For Stainless Steel Model...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982... - Page 20 DISPENSER FRONT PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly Housing, Middle...
- Page 21 UPPER UNIT PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982...
- Page 22 UPPER UNIT PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2309432 Gasket, Condenser 1 W10133449 Inverter Box 489399 Screw 489373 Screw, Compressor 2259350 Power Supply, 2155774 Wire Tie Mounting (4) Ingredient Care 2317982 Drier 2223393 Compressor Center 22 W10136614 Bracket, Fan Motor...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part DESCRIPTION 9791833 Clip 486194 Screw 3 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box 9 W10121374 Tube, Discharge 2188820 Thermistor 2306094 Evaporator 12 W10140162 Heater, Defrost...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSC48QVS00 (Stainless Steel) W10180982... - Page 26 ICEMAKER PARTS For Model: KSSC48QVS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 W10122527 Mold & Heater 626680 Module Assembly 2320601 Shield, Valve (Also Order (Includes Items 2310191 Wire Assembly, 542638 Silicone 21 & 33) Icemaker Grease) 489136 Screw (2) 628379 Clip, Fuse...
