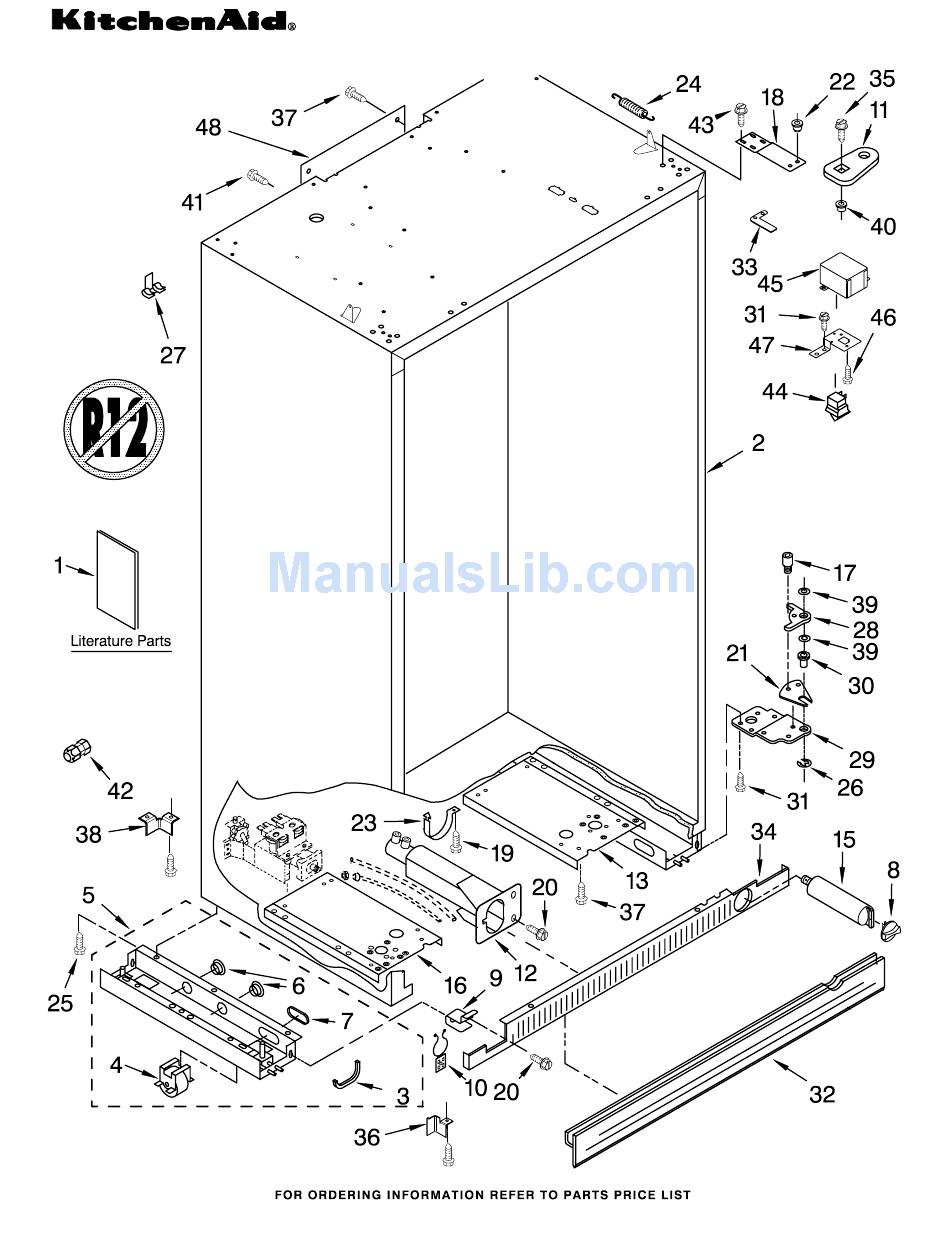

- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Part No. 8197666 5−05 Litho In U.S.A. (rcg)
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2006806 Support, Bottom 8201584 Extension Arm, LIT2215850 Use & Care Guide (Right Side) Door Closer LIT2221053 Energy Label 2203220 Filter, Water 2209425B Grille Bottom, LIT2221021 Service &... - Page 3 CABINET TRIM PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919S Stainless Steel 2215919B Black 2003857 Screw Screw 8181250 Stainless Steel 8281252 Black 2209073 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top Cabinet Trim (Left Side) 2215936S Stainless Steel...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2220889 Solid Shelf 2220846 Front, Ice Compartment 1113636 Shelf, Fixed (2) 1113564 Shelf, Deep 2208192 Basket 2220843 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 2003046 Hole Plug, Front 2003047 Hole Plug, Rear... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2208975 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2215715 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2215941 Control Box Wire Harness 2003841 Retainer, Knob 2162085 Socket, Light 2160708 Light Bulb (2) 486194 Screw 2221067 Overlay 8197666... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorator 2215952S Stainless Steel 2215952B Black 2209490 Cover, Unit 486194 Screw 2215830 Back Panel 2209492 Guard, Wiring 2005292 Nameplate 8201530 Baffle−Air, Condenser 2004333 Nut 2005483 Bracket, Louver Grille, Louver 2215933S Stainless Steel...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006523 Frame, Assembly Meat Pan 1113893 Cover, Crisper 2003378 Glass, Crisper (Includes #9) 2000742 Meat Pan,...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155788 Gasket, Cover 2208968 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666... - Page 14 REFRIGERATOR DOOR PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 8201580 Refrigerator Door Panel (Includes Insulation) 2209202 Plate, Door Handle 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top &...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666... - Page 16 FREEZER DOOR PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2215975 Freezer Door Panel (Includes Insulation) 2004520 Spacer−Door, 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top & Bottom 2188495 Door Gasket, Magnetic 486194 Screw (34)
- Page 17 UPPER UNIT PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666...
- Page 18 UPPER UNIT PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209324 Inverter Box 943447 Grommet (4) Following Parts Not Illustrated 489373 Screw, Compressor 2221009 Wire, Jumper and Optional Parts Not Included Mounting (4) 487522 Screw 2208937 Compressor...
- Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666...
- Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve 2209036 Tube, Discharge...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) 8197666... - Page 22 ICEMAKER PARTS For Models: KSSC36FKB00, KSSC36FKS00 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2005038 Plug, Water Valve 841707 Insert, Tube 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2208933 Water Inlet Tube Assembly 1106508 Seal Gasket 2209430 Tube, Filter Outlet 2006766 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2209072 Water Valve,...
