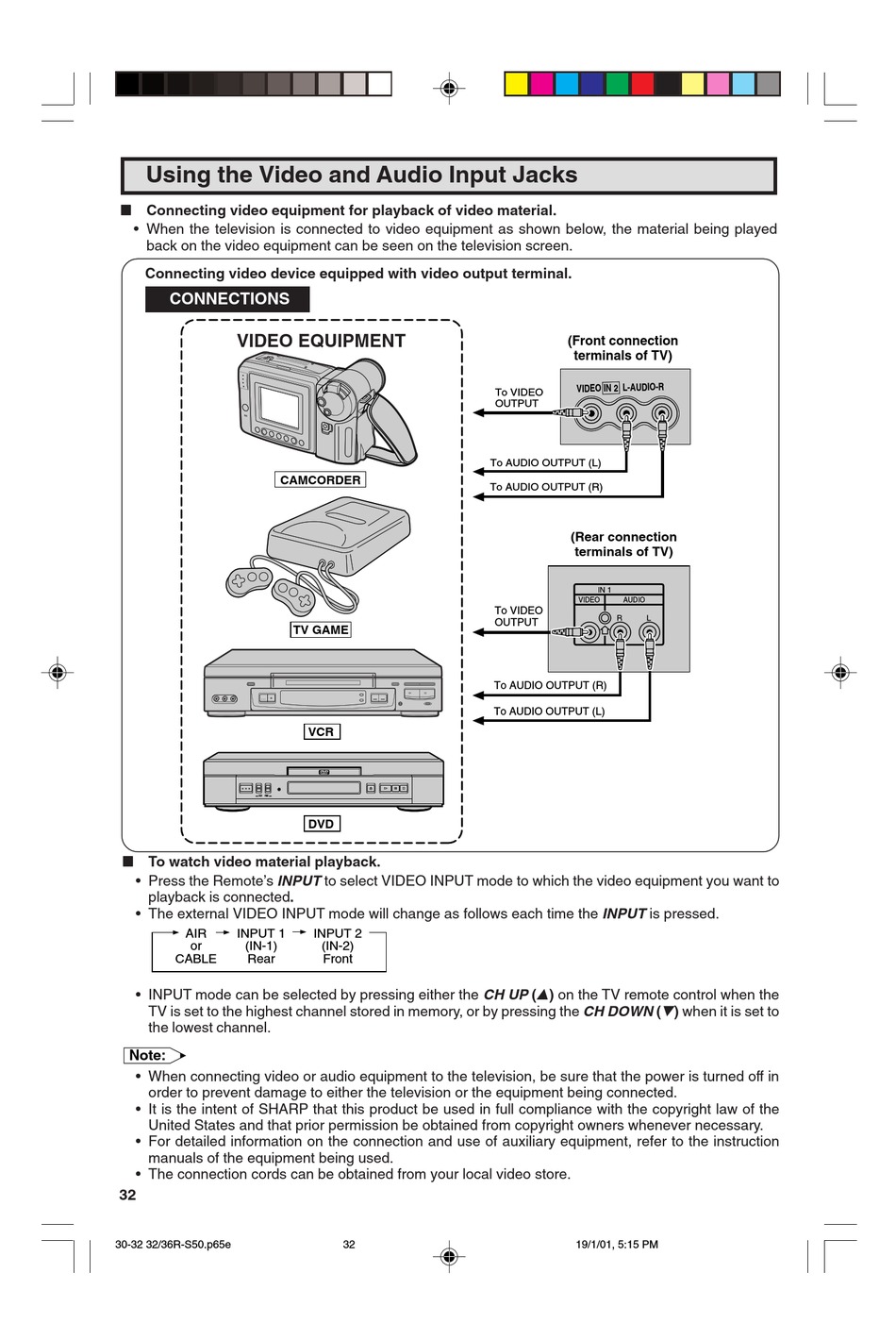

Using the Video and Audio Input Jacks

L Connecting video equipment for playback of video material.
• When the television is connected to video equipment as shown below, the material being played
back on the video equipment can be seen on the television screen.
Connecting video device equipped with video output terminal.
CONNECTIONS
VIDEO EQUIPMENT
CAMCORDER
REV
FWD
L To watch video material playback.
• Press the Remote's INPUT to select VIDEO INPUT mode to which the video equipment you want to
playback is connected.
• The external VIDEO INPUT mode will change as follows each time the INPUT is pressed.
AIR
INPUT 1
or
(IN-1)
CABLE
Rear
• INPUT mode can be selected by pressing either the CH UP ( 8 ) on the TV remote control when the
TV is set to the highest channel stored in memory, or by pressing the CH DOWN ( 9 ) when it is set to
the lowest channel.
Note:
• When connecting video or audio equipment to the television, be sure that the power is turned off in
order to prevent damage to either the television or the equipment being connected.
• It is the intent of SHARP that this product be used in full compliance with the copyright law of the
United States and that prior permission be obtained from copyright owners whenever necessary.
• For detailed information on the connection and use of auxiliary equipment, refer to the instruction
manuals of the equipment being used.
• The connection cords can be obtained from your local video store.
32
30-32 32/36R-S50.p65e
TV GAME
VCR
DVD
INPUT 2
(IN-2)
Front
32
(Front connection
terminals of TV)
To VIDEO
OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
(Rear connection
terminals of TV)
To VIDEO
OUTPUT
To AUDIO OUTPUT (R)
To AUDIO OUTPUT (L)
19/1/01, 5:15 PM
