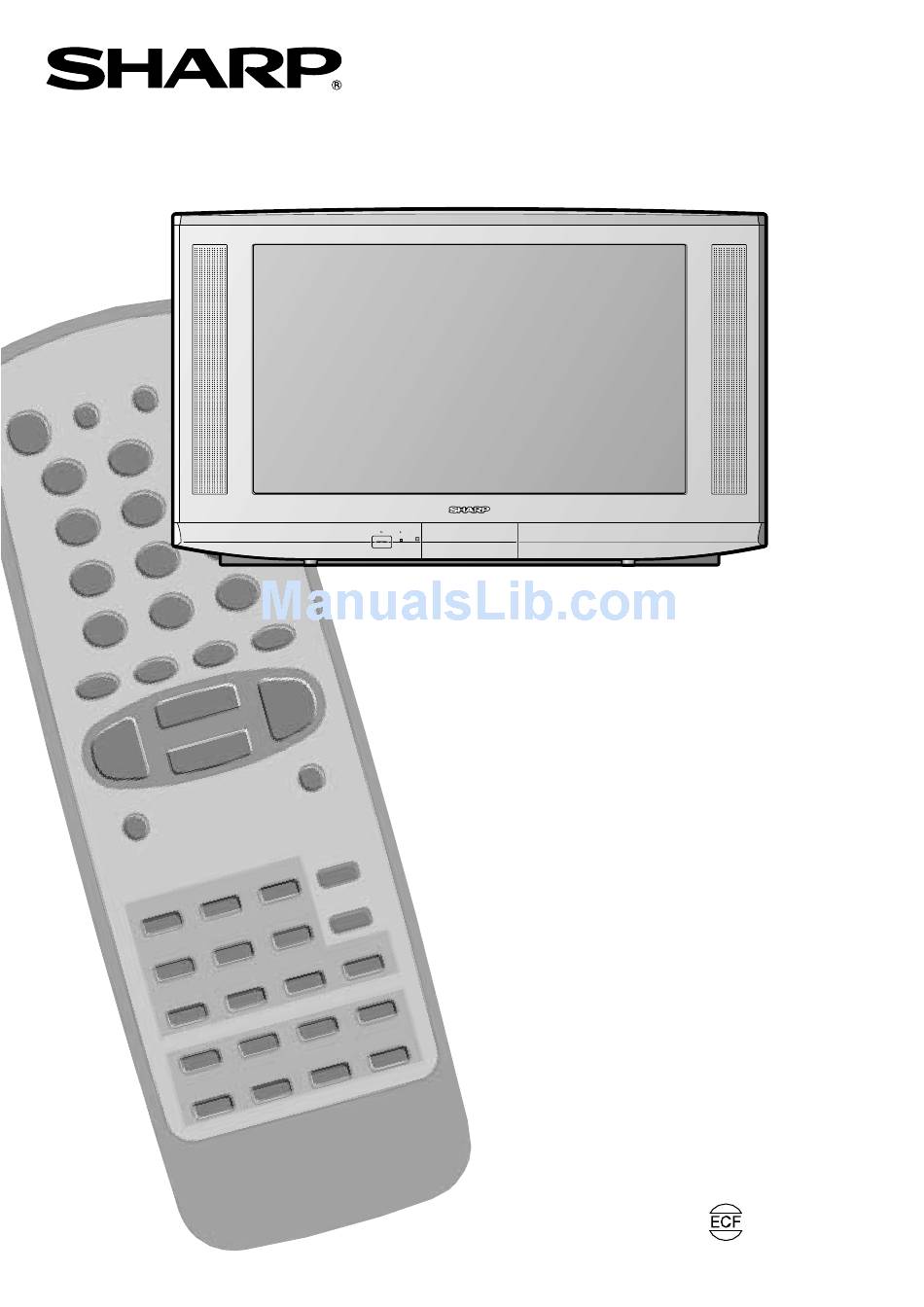

- Page 1 28JF-73H 32JF-73H COLOUR TELEVISION OPERATION MANUAL PRINTED ON ENVIRONMENTALLY FRIENDLY PAPER...
-
Page 2: Terms Of Guarantee
4. In the unlikely event of that your equipment should require repair, please contact the dealer or supplier from whom it was purchased. 5. The cost of carriage to and from the Dealer, Supplier or Sharp approved Service Facility shall be borne by the purchaser. -
Page 3: Safety Precautions
TV set and the stand, table or track. The picture tube of your TV has a special coating. Do not knock or rub on the tube face with sharp or hard surfaces, otherwise you will damage the coating. To prevent damaging the surface... -
Page 4: Table Of Contents
Picture Adjustments ...16 Dear SHARP Customer Congratulations! You are now the proud owner of a SHARP Colour Television Receiver. To ensure proper operation, please read this manual carefully. After reading, keep this manual in a safe place for future reference. -
Page 5: Remote Control
Remote Control 1. Stand-by button (TV) Video 2. Power button (VCR) 3. 0 ~ 9 digit buttons 4. Flash back button Teletext 5. GREEN button 6. RED button 7. Volume DOWN button 8. MENU button Teletext 9. REVEAL button 10. LIST button 11. -
Page 6: Controls & Terminals
Controls & Terminals FRONT TV Main power button Power indicator Remote control sensor Volume DOWN button Volume UP button Channel DOWN button Channel UP button HOW TO OPEN THE DOOR Lift the projection at the lower right of the door with your finger in the direction of the arrow. -
Page 7: Aerial Connections
Aerial Connections - TV set only - Aerial Connections - VCR and TV - SCART Lead (Not supplied) Aerial (Not supplied) Aerial Lead (Not supplied) Aerial in Note: See on -Typical connections- (page 33) for details of further connection possibilities. -
Page 8: Auto Installation
Put the batteries into the remote control and follow the instructions on the screen. Note: If the TV is used with a VCR, turn on the VCR and play back a pre-recorded tape. The TV will go through the following steps automatically and... - Page 9 Exit this menu BLUE button With these options, you will be able to organise the real channels (CH **) memorised in the TV programmes (Pr 01 … Pr 99) and put them intoyour own preferred order. Select a programme to be edited Use this option to select a programme from the list.
-
Page 10: Switching On
Stand-by button When the TV is in Stand-by mode, to turn on the TV press the Stand-by button ( TV) on the remote control, or one of the four buttons on the TV /\, VCH/\). -
Page 11: Menu Structures
Menu Structures This TV set has a MAIN menu with four basic menus, which permit access to the different functions of the TV. These menus are as indicated below. By pressing the MENU button: Main menu Button GREEN YELLOW FUNCTIONS... -
Page 12: Tv Channel Setting
Press any button to start the AUTO INSTALLATION. The TV set searches for frequencies, memorises the channels found and sorts them (according to technical criteria) from Pr-01 of the TV, to a maximum of 99 programmes. This tuning process may take several minutes to perform. - Page 13 Manual Channel Preset (PRESET USING REAL CHANNEL NUMBERS) Depending on the programme channel you want to preset, press the Single/Double entry button entry. Select the programme channel number you want to preset with the 0 ~ 9 digit buttons. Press the MENU button to see the MAIN menu.
- Page 14 Manual Channel Preset (PRESET USING FREQUENCY TUNING) Depending on the programme channel you want to preset, press the Single/Double entry button entry. Select the programme channel number you want to preset with the 0 ~ 9 digit buttons. Press the MENU button to see the MAIN menu.
-
Page 15: After Preset Has Been Performed
Repeat the above procedure for other programme channels as required. Mode This feature allows you to select TV, VCR, SKIP. First follow the above steps 1., 2., and 3. The TUNE menu will appear on screen. Press the Channel DOWN button Press the Volume UP button If the TV signal is weak the image can move. -
Page 16: Tv Operation
TV Operation Channel Selection Channel UP/DOWN Select the programme channel number you want to see, using the Channel UP/DOWN buttons . You can clear the on-screen display by pressing the MENU button Note: The channels that are in SKIP mode cannot be seen when using this method. -
Page 17: Picture Adjustments
Picture Adjustments Picture quality: CONTRAST, COLOUR, BRIGHTNESS, SHARPNESS, NORMALISE, TINT CONTROL, NTSC HUE, ECO MODE and ROTATION are adjustable in this menu. Press the MENU button to see the MAIN menu. Press the RED button to see the PICTURE menu. Press the Channel UP/DOWN buttons an option from the list: CONTRAST, COLOUR, BRIGHTNESS, SHARPNESS or NORMALISE. - Page 18 Select ECO MODE “ON” to reduce contrast in areas of the picture that are excessively white. Select COMB FILTER “ON” to reduce colour interference in picture with fine details and the picture gets sharper. Select NTSC HUE to adjust the skin colour (Green or Red) during NTSC signal reception through the external connectors.
-
Page 19: Wide Mode Fast Menu
* AUTO mode (VPS code): The VPS signal is sent by some broadcasting stations with information of the original size. When the TV is in AUTO mode and receives the VPS signal, it changes the size automatically as indicated below: When the TV is receiving VPS code 16:9 the TV selects CINEMA automatically. - Page 20 Wide Mode (Special detail information) Special detail information about PANORAMA, FULL, NORMAL, ZOOM 14:9 and CINEMA (16:9) . 16:9 PANORAMA The Panorama Mode adapts the broadcast picture to 16:9 format without changing the centre of view. This is especially useful for programmes like the News when the speaker in the centre of the picture needs to be seen clearly.
-
Page 21: Audio Adjustments
When the TV is receiving a MONO (NICAM) programme, the TV set selects MONO NICAM automatically, and you can change: MONO NICAM When the TV is receiving a MONO (FM) programme, the TV set selects MONO automatically but the sound mode cannot be changed. -
Page 22: Sound Setting Mode
Sound Setting Mode Sound quality (VOLUME, BASS, TREBLE, BALANCE, NORMALISE, SOUND MODE and SPATIAL EXPANDER) are adjustable in this menu. Press the MENU button to see the MAIN menu. Press the GREEN button to see the SOUND menu. Press the RED button to select LOUDSPEAKERS or press the GREEN button to select HEADPHONES. - Page 23 Note: The SPATIAL EXPANDER effect does not work with headphones. ** SOUND IDENT. SOUND IDENT. ON: TV automatically identifies the sintonized audio system MONO FM, STEREO NICAM or DUAL NICAM SIGNAL. SOUND IDENT. OFF: Disqualifies the automatic identification of the audio system and forces the sound into MONO FM.
-
Page 24: Features Setting Mode
Press the Stand-by button ( LED indicator on the TV set turns RED to ORANGE during ON TIMER is activated. Note: As a safety precaution, in the case of nobody being home when the television switches on automatically, the television will disconnect itself after 120 minutes;... -
Page 25: Child Lock (Channel Block)
Child Lock (Channel Block) You can lock a TV channel to prevent unsupervised TV viewing by following these procedures; the protection can apply to the television itself LOCK ALL or to specific programmes LOCK PROG.. With the CHILD LOCK function, you can also programme a time period during which the TV will be protected. - Page 26 Note: In order for the timed protection to function correctly, the internal TV clock must be set at the right time. To check the time setting see section Automatic or Manual TIME adjustment on page 23.
-
Page 27: Postcode
Postcode This option allows you to set a code, which will be displayed at TV switch on time. There is a password to change the code. Press the MENU button to see the MAIN menu. Press the YELLOW button Press the Channel UP button menu. -
Page 28: Vcr Mode
VCR Mode SHARP VCR can be operated using the TV remote control. Channel UP/DOWN buttons (VCR) CH These buttons are used for changing channels and setting the timer. Play button Press this button to start playback. Record button Press this button to start recording. If the video cassette is protected against recording, it will be ejected. -
Page 29: Other Features
Other Features TV/VIDEO button (TV/VIDEO) With this button you can select either source of input for the TV. When the TV/VIDEO button is first pressed, the TV/Video menu appears and TV mode changes to VIDEO mode. The screen is displayed in the last VIDEO mode. -
Page 30: Teletext Mode
Teletext features Depending on the TV programme, the Teletext pages are transmitted using different systems. Your SHARP TV is adjusted to receive 2 Teletext systems, namely FLOF and LIST, which are automatically identified by the receiver. The user can easily identify them by the manner in which they appear on the screen. - Page 31 Press the button again to hide the information. CLOCK button TV Mode: When the TV signal with TEXT data is received, by pressing this button the real time information will appear on the top left area of the screen. Teletext Mode: When a selected Teletext page has hidden subpages or timed pages, these pages can be seen by the...
- Page 32 0~ 9 digit buttons HALF PAGE button HOLD button Pressing any other button allows to return on normal TV Mode resetting the SPLIT SCREEN (LIST Mode) feature. Teletext operation - LIST Mode - Teletext Page memory List How to Operate Page Memory Your TV has 40 Teletext page number memories for fast recall of Teletext information.
-
Page 33: 21-Pin Euro-Scart And 21-Pin Audio/Video
21-pin Euro-SCART and 21-pin Audio/Video REAR TV 21-pin In/Out 21-pin Audio/Video (AV-2) With PAL/SECAM/NTSC Video Input 21-pin Audio/Video (AV-1) With PAL/SECAM/NTSC/S-Video Input 21-pin Euro-SCART (RGB) With PAL/SECAM/NTSC Video Input. 21 19 17 15 13 11 21-pin Euro-SCART (RGB) 1. Audio right output 2. -
Page 34: Typical Connections
Typical connection (Videorecorder and TV) through the RF terminal and Decoder through 21-pin Euro-Scart RF out RF in RF in SCART/AV 21 -pin Euro-SCART Decoder Typical connection (DVD, Decoder and TV) through the 21-pin Euro-SCART RF in SCART/AV DVD player Audio out Video out 21-pin Euro-SCART Decoder... - Page 35 Typical connection (VIDEO CAMERA and TV) through the A/V FRONT Note: For further details, please refer to operation manual of your Video camera.
-
Page 36: Troubleshooting
If the fault cannot be corrected by using this guide, remove the mains plug from the wall socket and contact the dealer or supplier from whom it was purchased. Where this is not possible, please visit our web-site at www.sharp.co.uk/support. Customers without Internet access may telephone 08705 274277 (or (01) 676 0648 if telephoning from Ireland) during office hours. -
Page 37: General Specifications For Television Receiver
General Specifications for Television Receiver Item : IC Solid State Colour TV Receiver 28JF-73H/32JF-73H Models: Receiving Broadcast Standard Receiving Channel Receiving System Colour System: Field Frequency: Power Source Power Consumption at 240V AC 50Hz Power Consumption at (Stand-by) Audio Output:Internal speaker: Dimensions (Approx.) -
Page 38: Index
Demonstration ...25 ECO mode ...17 Edit (Programme) ...8 Features Setting Mode ...23 Fine tuning ...14 FLOF (Teletext) ...29 FRONT TV ...5 Guarantee ...1 Headphone jack ...28 LIST (Teletext) ...29, 30, 31 Main power button ...9 Manual Channel Preset ...12, 13 Menu Structures ...10... - Page 39 SHARP ELECTRÓNICA ESPAÑA, S.A SHARP ELECTRONICS (U.K.) LTD. Sharp House, Thorp Road, Newton Heath, Manchester M40 5BE PRINTED IN SPAIN TINS-A069WJZZ 05/02...
