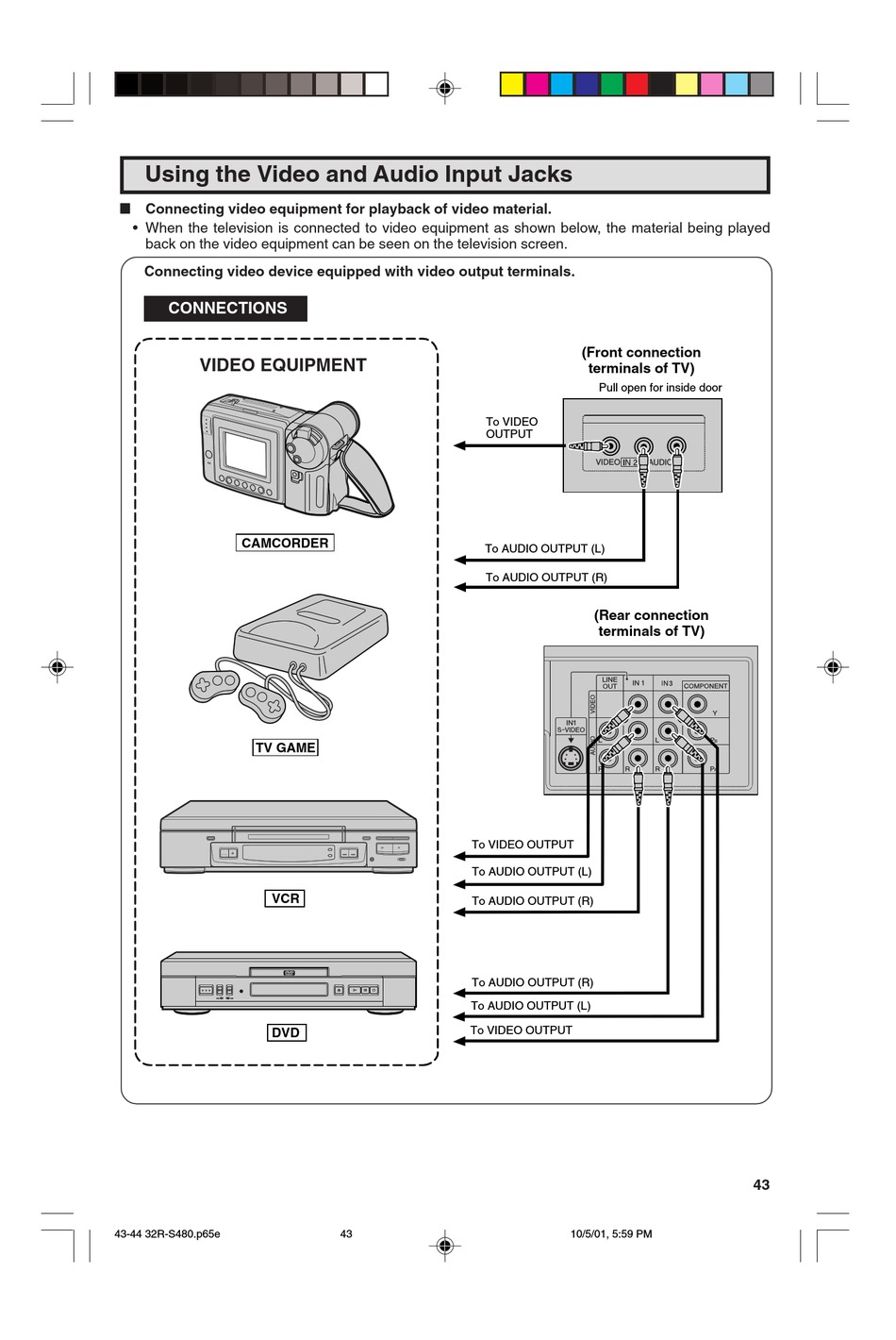

Using the Video and Audio Input Jacks

L Connecting video equipment for playback of video material.
• When the television is connected to video equipment as shown below, the material being played
back on the video equipment can be seen on the television screen.
Connecting video device equipped with video output terminals.
CONNECTIONS
VIDEO EQUIPMENT
CAMCORDER
TV GAME
VCR
REV
FWD
DVD
43-44 32R-S480.p65e
To VIDEO
OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
To VIDEO OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
To AUDIO OUTPUT (R)
To AUDIO OUTPUT (L)
To VIDEO OUTPUT
43
(Front connection
terminals of TV)
Pull open for inside door
(Rear connection
terminals of TV)
10/5/01, 5:59 PM
43
