Using the Video and Audio Input Jacks

L Connecting video equipment for playback of video material.
• When the television is connected to video equipment as shown below, the material being played
back on the video equipment can be seen on the television screen.

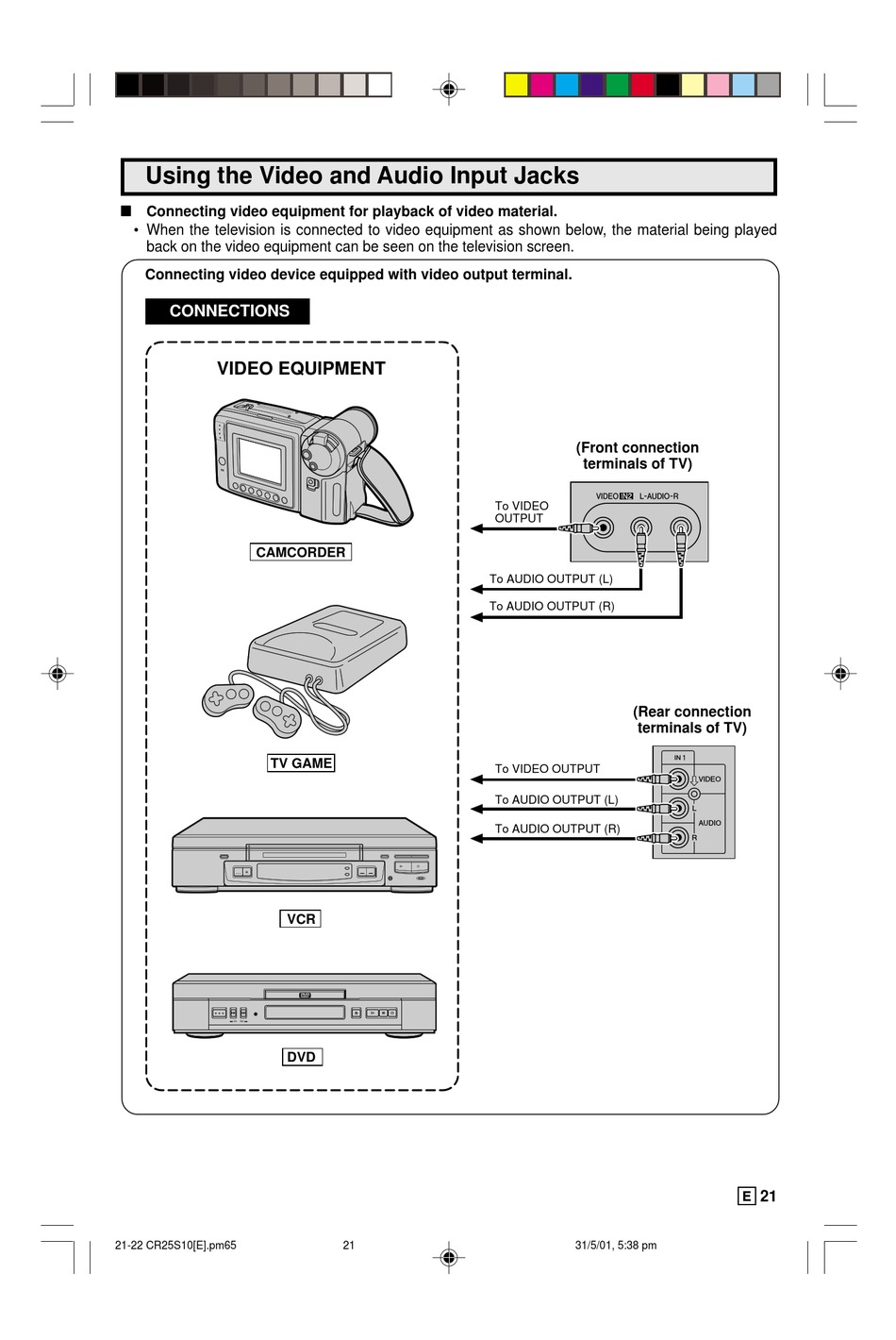

Connecting video device equipped with video output terminal.
CONNECTIONS
VIDEO EQUIPMENT
CAMCORDER
TV GAME
REV
FWD
21-22 CR25S10[E].pm65
VCR
DVD
21
(Front connection
terminals of TV)
To VIDEO
OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
(Rear connection
terminals of TV)
To VIDEO OUTPUT
To AUDIO OUTPUT (L)
To AUDIO OUTPUT (R)
31/5/01, 5:38 pm
21
