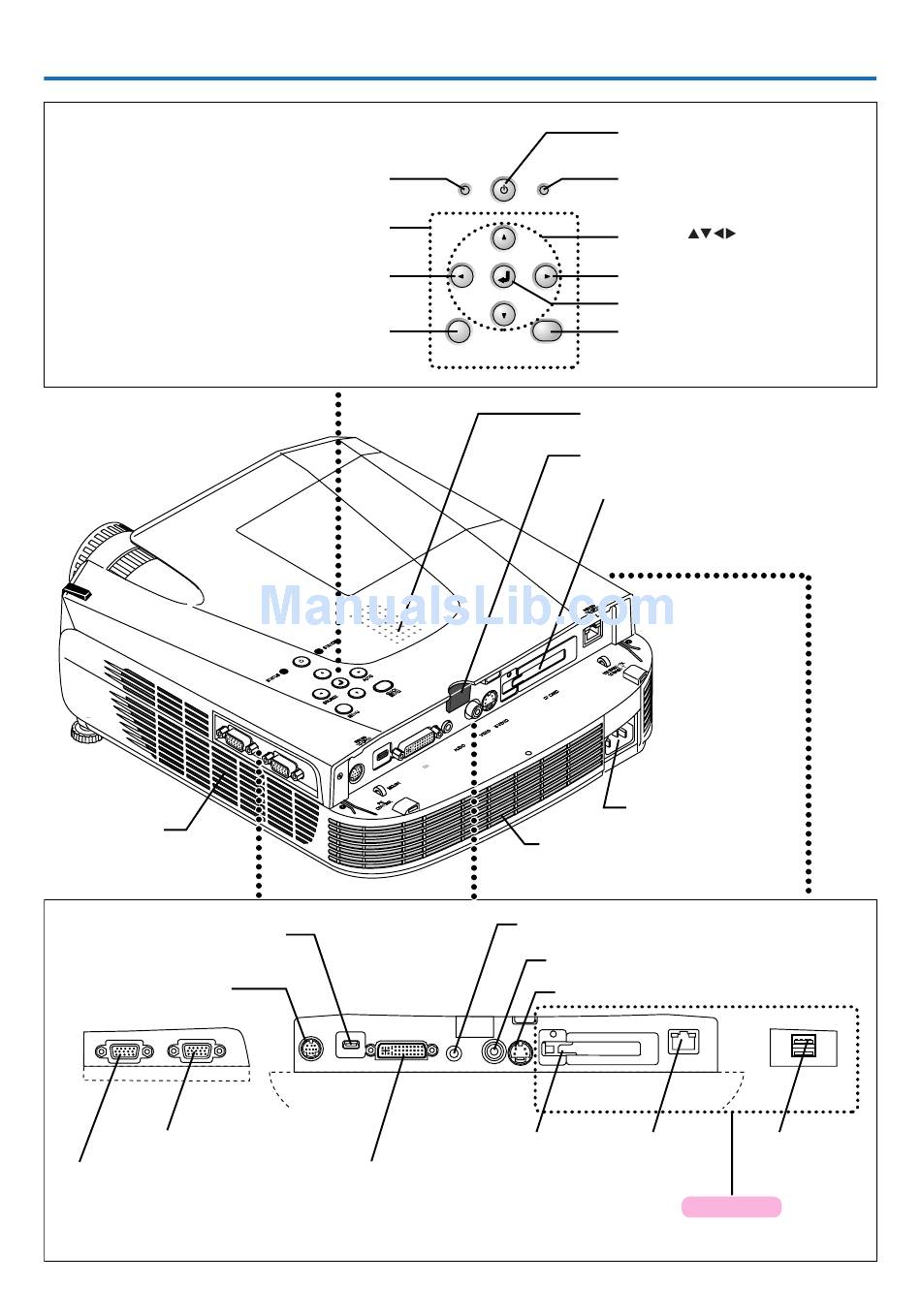

Names of the Main Unit Parts
STATUS indicator [E-22, 58]
Buttons used in menu and quick menu operations
Ventilation slots
MOUSE connector
[E-32]
PC CONTROL connector
(DIN 9-pin) [E-33]
RGB OUT RGB IN
RGB IN connector [E-15, 16]
RGB OUT connector [E-21]
[E-36, 37]
SOURCE button [E-27]
MENU button [E-37]
MOUSE DVI
PC
CONTROL
DVI connector [E-15, 16, 19]
STATUS STANDBY
AUTO
SOURCE
QUICK
MENU
MENU
Speaker
Remote control sensor [E-12]
Ventilation slots
AUDIO connector [E-20]
VIDEO connector [E-18]
S-VIDEO connector [E-18]
AUDIO VIDEO S-VIDEO CF CARD
CF card slot
(See pages 15 and 16 on the "Image Viewer / Network" manual)
E-10
STANDBY button [E-22]
STANDBY indicator [E-22, 58]
SELECT ( ) buttons
AUTO button [E-27]
ENTER button [E-23]
QUICK MENU button [E-36]
Used when using a CompactFlash
card or a wireless LAN card.
AC IN connector [E-22]
100 BASE - TX
10 BASE - T
USB connector
LAN connector
U7-137 only
USB
