Connecting Pin Assignments

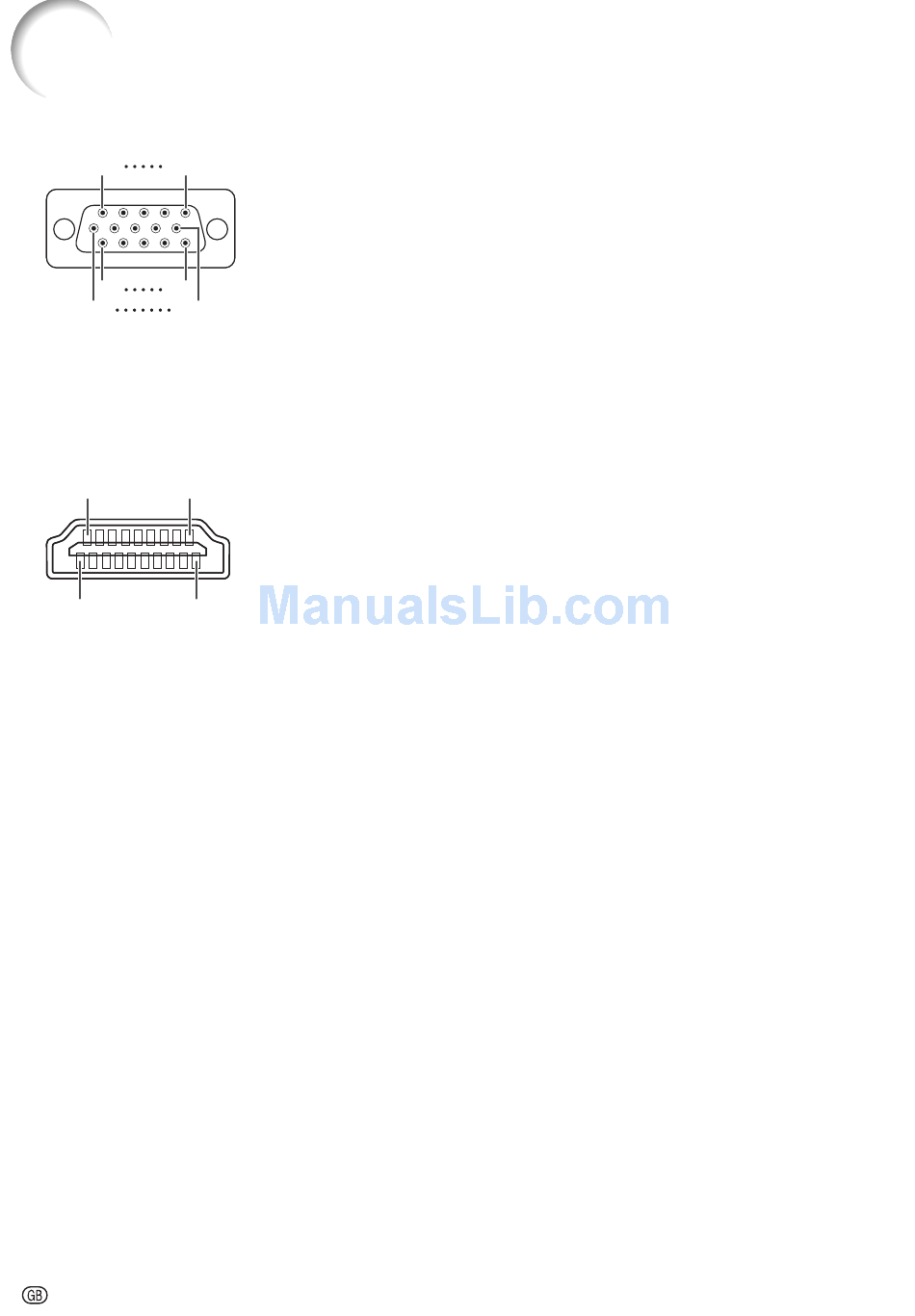

COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals: mini
D-sub 15 pin female connector
11
11
15
15
1
1
5
5
6
6
10
10
HDMI Terminal
18
18
2
2
19
19
1
1
-2
COMPUTER Input/Output
Pin No.
Signal
1.
Video input (red)
2.
Video input (green/sync on green)
3.
Video input (bluea)
4.
Not connected
5.
Not connected
6.
Earth (red)
7.
Earth (green/sync on green)
8.
Earth (blue)
9.
Not connected
10.
GND
11.
Not connected
12.
Bi-directional data
13.
Horizontal sync signal: TTL level
14.
Vertical sync signal: TTL level
15.
Data clock
Pin No.
Name
1.
T.M.D.S data 2+
2.
T.M.D.S data 2 shield
3.
T.M.D.S data 2–
4.
T.M.D.S data 1+
5.
T.M.D.S data 1 shield
6.
T.M.D.S data 1–
7.
T.M.D.S data 0+
COMPUTER Input/Output
Pin No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Pin No.
Name
8.
T.M.D.S data 0 shield
9.
T.M.D.S data 0–
10.
T.M.D.S clock+
11.
T.M.D.S clock shield
12.
T.M.D.S clock–
13.
CEC
Signal
PR (CR)
Y
PB (CB)
Not connected
Not connected
Earth (PR)
Earth (Y)
Earth (PB)
Not connected
Not connected
Not connected
Not connected
Not connected
Not connected
Not connected
Pin No.
Name
14.
Reserved
15.
SCL
16.
SDA
17.
DDC/CEC ground
18.
+5V power
19.
Hot plug detection
