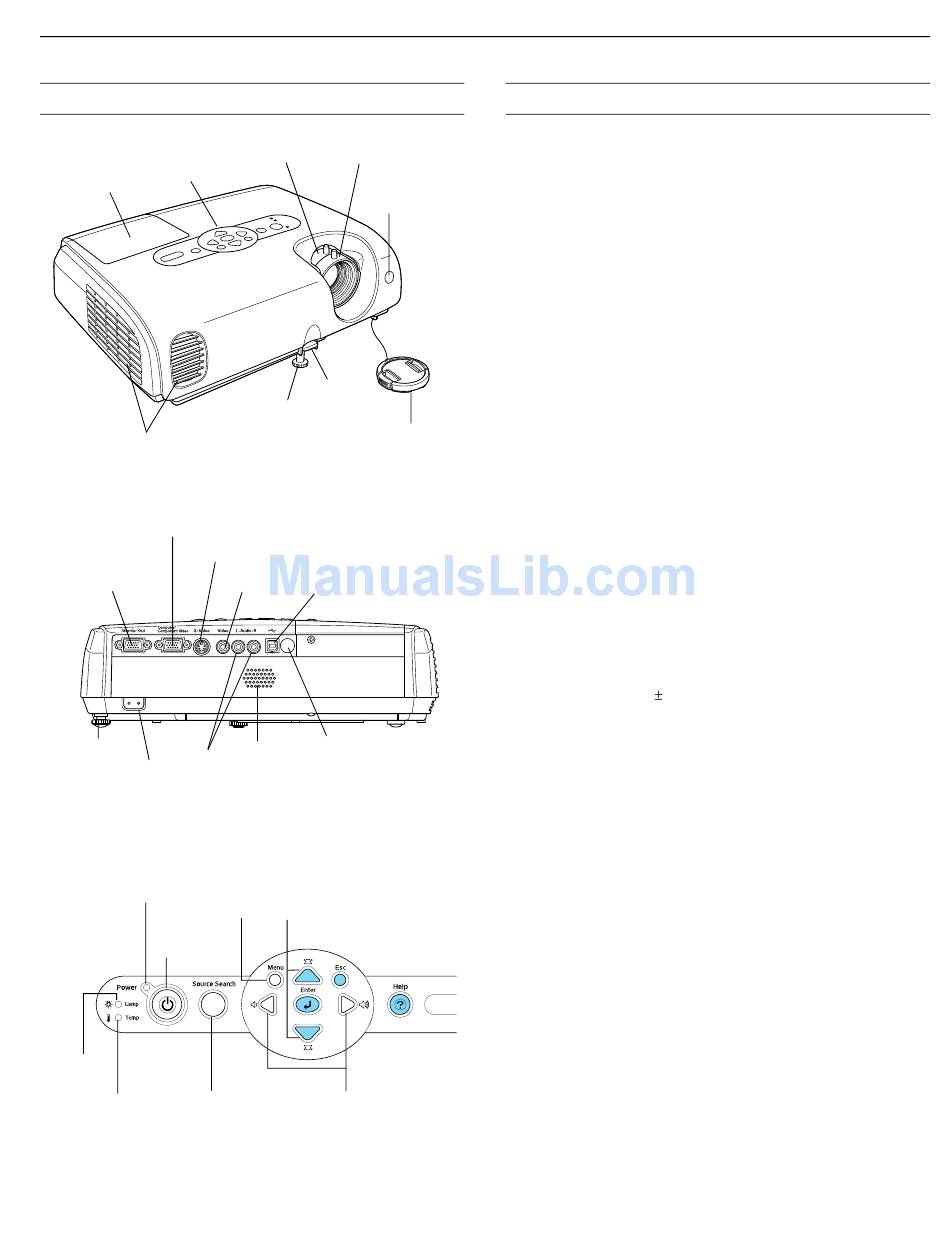

Projector Parts

Control panel
(see below)
Lamp cover
Ventilation outlets
Computer/Component Video port
S-Video port
Monitor out port
Rear adjustable
Audio
foot
AC inlet
input
Control Panel
Power light
Menu
button
Power
button
Lamp
light
Temperature
Source selection
light
button
Zoom ring
Focus ring
Remote control
infrared receiver
Foot
lever
Foot
Lens
cover
USB port
Video port
(not for projecting)
Infrared receiver for
Speaker
remote control
Keystone
buttons
Volume
buttons
Epson PowerLite 76c Projector

Projector Specifications

General
Type of display
Lens
Resolution
Color reproduction
Brightness (ANSI)
Contrast ratio
Image size
Projection distance
Projection methods
Focus adjustment
Zoom adjustment
Internal sound
system
Optical aspect ratio
Zoom ratio
Noise level
Keystone correction
angle
Projection Lamp
Type
Power
consumption
Lamp life
Part number
Remote Control
Range
Batteries (2)
Mouse Compatibility
Supports USB
9/05
Poly-silicon Thin Film Transistor (TFT)
active matrix with Micro Lens Array
F=1.6, 18.4 to 22.12 mm
1024 × 768 pixels (XGA)
Full color, 16.77 million colors
2000 lumens (High brightness mode)
1500 lumens (Low brightness mode)
400:1
30 to 300 inches (0.8 to 7.6 meters)
2.8 to 35.4 feet (0.9 to 10.8 meters)
Front, rear, ceiling
Manual
Manual
1 W monaural
4:3 (horizontal:vertical)
1:1.2
36 dB (High brightness mode)
30 dB (Low brightness mode)
30° vertical (maximum)
UHE (Ultra High Efficiency)
170 W
About 2000 hours (High brightness)
About 3000 hours (Low brightness)
V13H010L34
20 feet (6 meters)
Alkaline AAA
Epson PowerLite 76c Projector
1
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerLite 76c and is the answer not in the manual?

Questions and answers

Related Manuals for Epson PowerLite 76c

Summary of Contents for Epson PowerLite 76c

  • Page 1: Projector Parts

    Batteries (2) Mouse Compatibility Supports USB Volume buttons 9/05 Epson PowerLite 76c Projector Poly-silicon Thin Film Transistor (TFT) active matrix with Micro Lens Array F=1.6, 18.4 to 22.12 mm 1024 × 768 pixels (XGA) Full color, 16.77 million colors 2000 lumens (High brightness mode)
  • Page 2 Epson PowerLite 76c Projector Dimensions Height 3.4 inches (86 mm) 3.9 inches (98 mm) with foot extended Width 12.9 inches (327 mm) Depth 9.7 inches (246 mm) Weight 5.7 lb (2.6 kg) Electrical Rated frequency 50/60 Hz Power supply 100 to 120 VAC, 2.9 A 200 to 240 VAC, 1.2 A...

  • Page 3: Compatible Computer Display Formats

    MAC16 MAC19—60 MAC19 MAC21 * The image is resized using Epson’s SizeWise™ Technology. Positioning the Projector Follow these guidelines to get the best results when projecting: Place the projector on a sturdy, level surface, between 3 and 35 feet from the screen.

  • Page 4: Image Size And Projection Distance

    (in.) 1. Remove the lens cap. Caution: Do not use the projector with the lens cap in place. The heat generated by the lamp can damage the cap. 2. Connect one end of the power cord to the projector’s power inlet.

  • Page 5: You Can't Project An Image

    See your computer’s documentation or online help for details. If you’re using a Macintosh You may need to set up your system to display on the projector screen as well as the LCD screen. Follow these steps: 1. From the Apple menu, select click 2.

  • Page 6: Turning Off The Projector

    To avoid damaging the projector or lamp, never unplug the power cord when the power light is green or flashing orange. 7. If you won’t be using the projector for awhile, store it in the soft case that came with it or in a protective case.

  • Page 7: Zooming Your Image

    To correct the distortion or “keystone” shape, do one or more of the following: If your image looks like projector off to one side of the screen, at an angle. Move it directly in front of the center of the screen, facing it squarely.

  • Page 8: Adjusting The Brightness

    Image menu. Epson PowerLite 76c Projector Adjusting the Volume You can use the buttons on the remote control or projector to increase or decrease the volume for both the projector’s built-in speaker and external speakers connected to the projector. Press button to increase the volume, or the decrease it.

  • Page 9: Turning Off The Picture And Sound

    Freeze Projector Status Lights If your projector isn’t working correctly, first turn it off, wait for it to cool, and unplug it. Then plug the power cord back in and turn on the projector. If this doesn’t solve the problem, check the lights on top of the projector.

  • Page 10: Remote Control Buttons

    Epson PowerLite 76c Projector Using the Remote Control The remote control uses a line-of-sight infrared signal. It lets you access the projector’s features from anywhere in the room— up to 20 feet away. (This distance may be shorter if the remote control batteries are low.)

  • Page 11: Cleaning The Projector Case

    Cleaning and Replacing the Air Filter Clean the air filter and air intake and exhaust vent on the bottom of the projector after every 100 hours of use. If they are not cleaned periodically, they can become clogged with dust, preventing proper ventilation.

  • Page 12: Replacing The Lamp

    Epson PowerLite 76c Projector 2. Turn the projector upside-down and clean the air filter and air vent on the base of the projector. Epson recommends using a small vacuum cleaner designed for computers and other office equipment. If you don’t have one, gently clean them using a very soft brush (such as an artist’s brush).

  • Page 13: Resetting The Lamp Timer

    8. Lower the lamp cover into place. (The opening should be almost covered, and the top of the cover should be flush with the top of the projector.) Then slide the cover closed and tighten the screw. 9. Reset the lamp timer as described in the next section.

  • Page 14: Transporting The Projector

    When you are hand-carrying the projector, be sure to use the supplied carrying case. Note: Epson shall not be liable for any damages incurred during transportation. Epson PowerLite 76c Projector Optional Accessories You can purchase the following accessories from an Epson authorized reseller.
