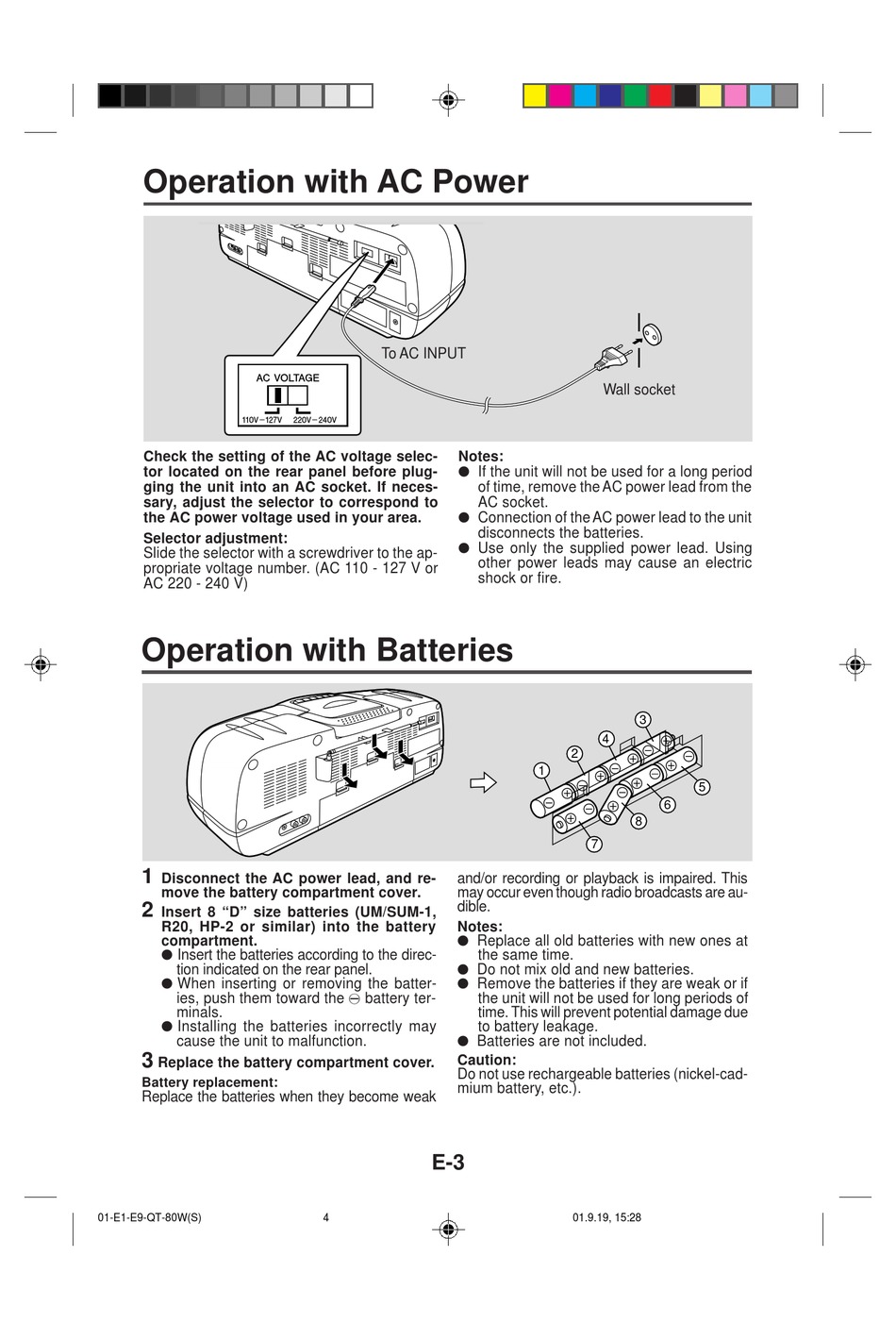

Operation with AC Power

Check the setting of the AC voltage selec-
tor located on the rear panel before plug-
ging the unit into an AC socket. If neces-
sary, adjust the selector to correspond to
the AC power voltage used in your area.
Selector adjustment:
Slide the selector with a screwdriver to the ap-
propriate voltage number. (AC 110 - 127 V or
AC 220 - 240 V)

Operation with Batteries

1
Disconnect the AC power lead, and re-
move the battery compartment cover.
2
Insert 8 "D" size batteries (UM/SUM-1,
R20, HP-2 or similar) into the battery
compartment.
Insert the batteries according to the direc-
tion indicated on the rear panel.
When inserting or removing the batter-
ies, push them toward the ë battery ter-
minals.
Installing the batteries incorrectly may
cause the unit to malfunction.
3
Replace the battery compartment cover.
Battery replacement:
Replace the batteries when they become weak
01-E1-E9-QT-80W(S)
To AC INPUT
Notes:
If the unit will not be used for a long period
of time, remove the AC power lead from the
AC socket.
Connection of the AC power lead to the unit
disconnects the batteries.
Use only the supplied power lead. Using
other power leads may cause an electric
shock or fire.
and/or recording or playback is impaired. This
may occur even though radio broadcasts are au-
dible.
Notes:
Replace all old batteries with new ones at
the same time.
Do not mix old and new batteries.
Remove the batteries if they are weak or if
the unit will not be used for long periods of
time. This will prevent potential damage due
to battery leakage.
Batteries are not included.
Caution:
Do not use rechargeable batteries (nickel-cad-
mium battery, etc.).
E-3
4
Wall socket
3
4
2
1
5
6
8
7
