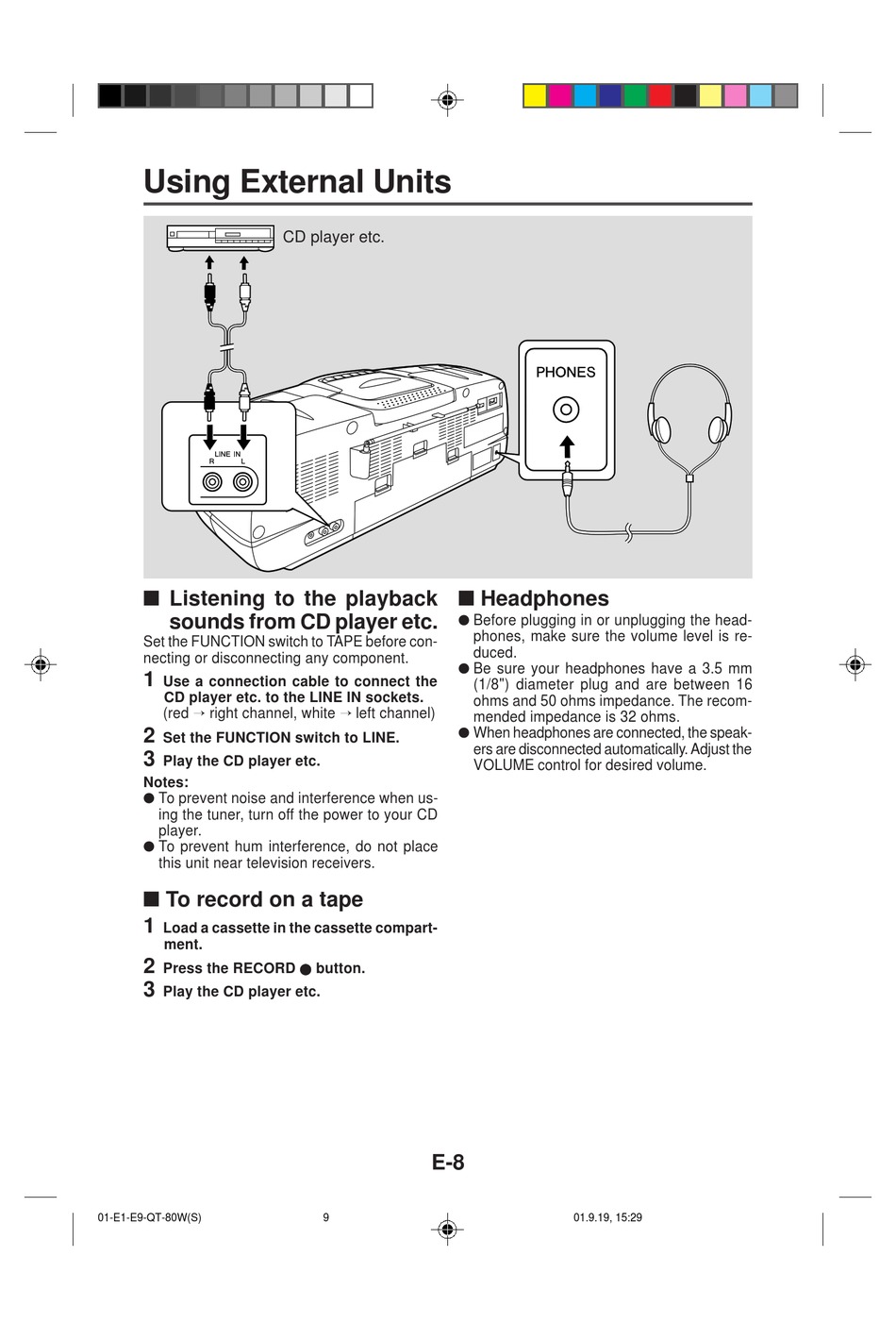

Using External Units

Listening to the playback
sounds from CD player etc.
Set the FUNCTION switch to TAPE before con-
necting or disconnecting any component.
1
Use a connection cable to connect the
CD player etc. to the LINE IN sockets.
(red right channel, white
2
Set the FUNCTION switch to LINE.
3
Play the CD player etc.
Notes:
To prevent noise and interference when us-
ing the tuner, turn off the power to your CD
player.
To prevent hum interference, do not place
this unit near television receivers.
To record on a tape
1
Load a cassette in the cassette compart-
ment.
2
Press the RECORD I I I I I button.
3
Play the CD player etc.
01-E1-E9-QT-80W(S)
CD player etc.
left channel)
E-8
9
Headphones
Before plugging in or unplugging the head-
phones, make sure the volume level is re-
duced.
Be sure your headphones have a 3.5 mm
(1/8") diameter plug and are between 16
ohms and 50 ohms impedance. The recom-
mended impedance is 32 ohms.
When headphones are connected, the speak-
ers are disconnected automatically. Adjust the
VOLUME control for desired volume.
