3 MAC-200 Setup

3.1 Mechanical Design

The MAC-200 is in an aluminum case. RF and DC power come
through the back of the case. Internal construction is normal for
fixed location use. Corrosion-resistant hardware and passive alloys
are used throughout. For 99% of installations, the factory settings
for the internal jumpers will be correct.

3.1.1 Opening the MAC-200

PO Box 3526, Bellevue, WA. 98009 13737 SE 26
Toll Free: 800-259-7331 * Phone: 425-746-6310 * Fax: 425-746-6384
.

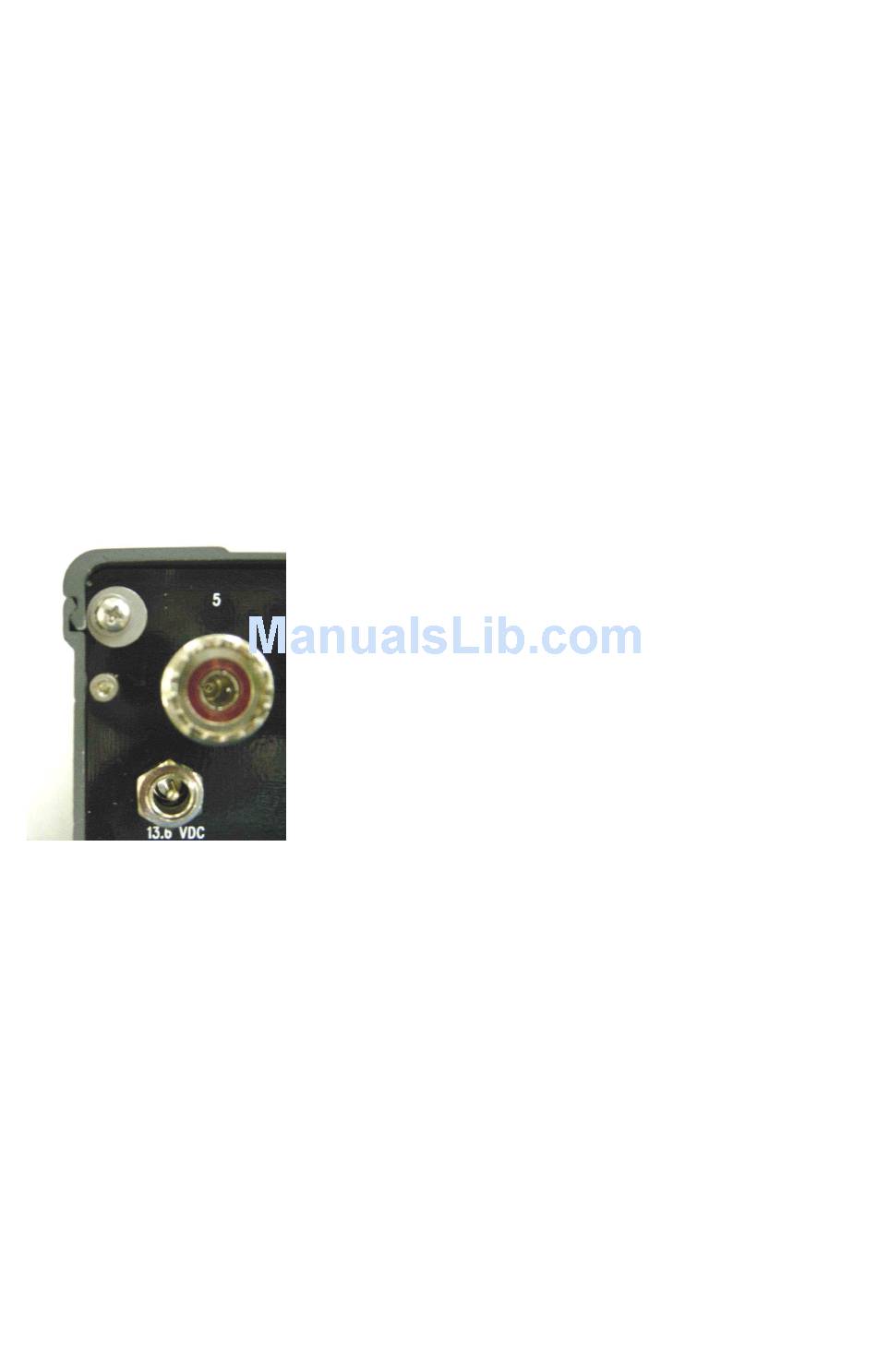

The MAC-200 cover is locked in place
with a simple arrangement using an
oversized washer to engage a small groove
in the side of the cover to prevent its
movement. A #4 screw and a slightly
oversized washer (#6 or #8) are locked in
place by a lock washer to prevent
movement of the cover.
www.sgcworld.com * Email: sgc@sgcworld.com
th
St. Bellevue, WA. 98005
7
