2
Using QuickLoop
Configuration 1: Emulating a Hub
Figure 2-1 on page 2-7
shows multiple hosts and devices connected to a QuickLoop-enabled
switch. The switch serves as a concentrator, similar to a hub except the switch offers throughput
performance on each looplet of 200MB/sec.

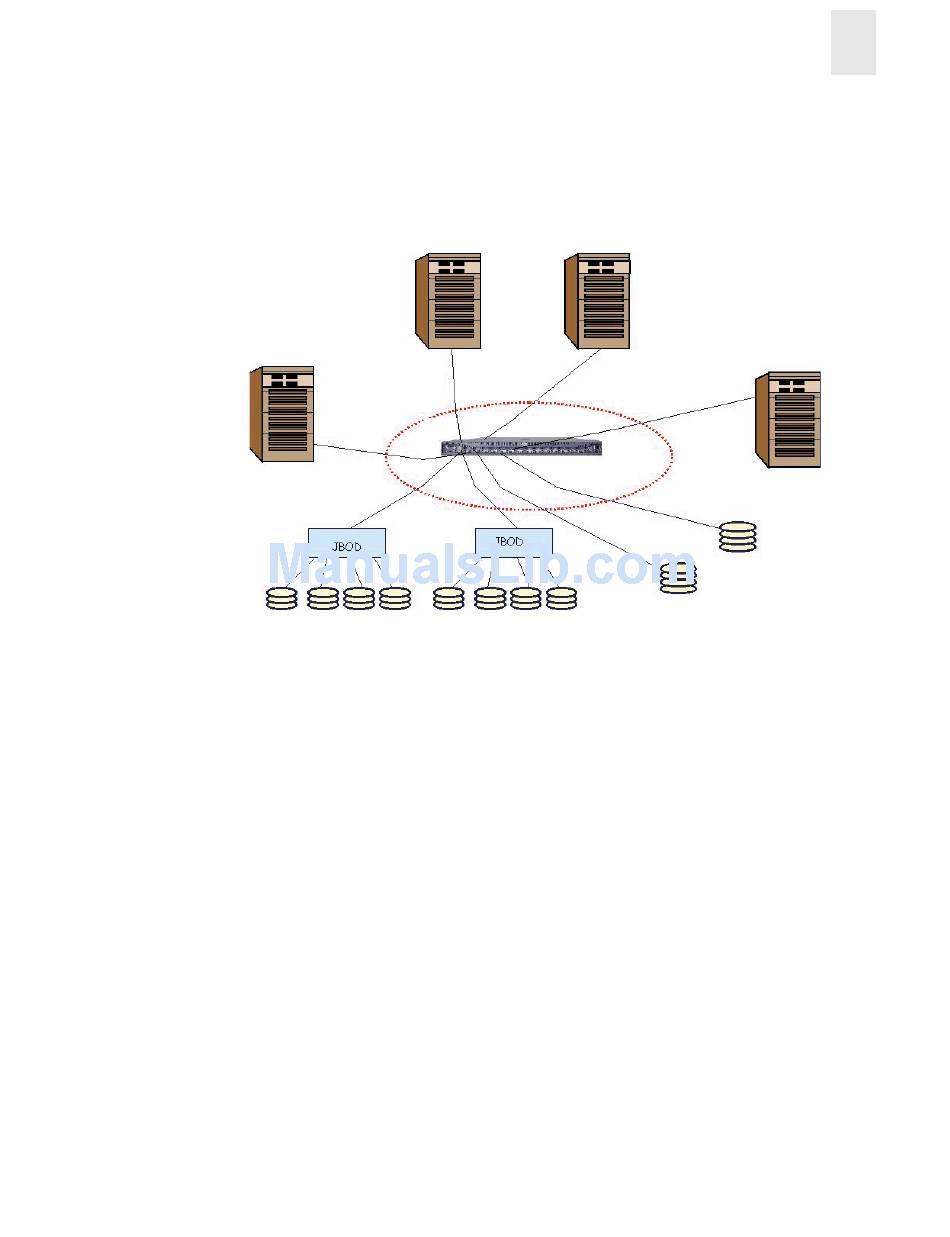

Figure 2-1 QuickLoop-enabled Switch Used as Concentrator
QuickLoop User's Guide
2-7
