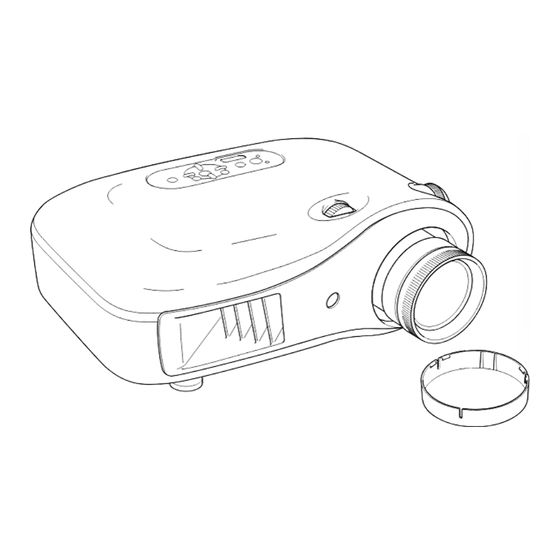

Epson Dreamio EMP-TW1000 U User Manual

Epson home projector user's guide
Hide thumbs Also See for Dreamio EMP-TW1000 U:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

Advertisement

Table of Contents
loading

Related Manuals for Epson Dreamio EMP-TW1000 U

Summary of Contents for Epson Dreamio EMP-TW1000 U

  • Page 2: About The Manuals And Notations Used

    About the Manuals and Notations Used Types of Manual The documentation for your EPSON projector is divided into the following two manuals. Refer to the manuals in the order given below. Safety Instructions/World-Wide Warranty Terms This manual contains information on using the projector safely, and also includes a guide for warranty service, and a troubleshooting check sheet.
  • Page 3 Checking the Components When you unpack the projector, make sure that you have all these components. If any of the components are missing or incorrect, please contact the place of purchase. ❏ Projector (with lens cover) ❏ Power cable (3.0m) Connect to the projector and to a wall outlet.

  • Page 4: Table Of Contents

    Table of Contents ■ Features of the Projector... 4 ■ Part Names and Functions ... 6 Front / Top... 6 Control panel ... 6 Installing the Projector ■ Setting up... 10 Adjusting the projection size... 10 ■ Connecting Image Sources ... 12 Basic Operations ■...
  • Page 5 Appendix ■ Maintenance ... 44 Cleaning... 44 • Cleaning the air filter...44 • Cleaning the projector case ...44 • Cleaning the lens ...44 Consumable replacement periods ... 45 • Air filter replacement period ...45 • Lamp replacement period ...45 Replacing consumables... 46 •...

  • Page 6: Features Of The Projector

    The optimum images for the location can be projected simply by selecting the desired colour mode from the following six preset modes. If "Natural", "Theatre", "Theatre Black 1" or "Theatre Black 2" is selected, the Epson Cinema Filter effect is applied automatically to increase the contrast and to make skin tones appear with more natural tints.
  • Page 7 Some of the other many functions that are available are as follows. EPSON Super White is used to prevent overexposure that can result in images that are too bright. A progressive conversion that lets you obtain ideal results both for images with large amounts of movement and for still images.

  • Page 8: Part Names And Functions

    • Horizontal lens adjustment dial Moves the lens horizontally. Front adjustable feet p.17 Extend to adjust the projection angle so that the projector is horizontal when placed on a desk top. p.37 p.36 • Select/Line menu buttons p.18, 24, 26 p.16...

  • Page 9: Remote Control

    • Remote control light- emitting area p.13 Outputs remote control signals. Part Names and Functions • On/Off buttons p.14 Turns the projector power on/off. • Color Mode button p.18 Selects the colour mode. • Aspect button p.18 Selects the aspect.

  • Page 10: Rear

    Connects to the S-Video out ports of the video equipment. Base • Suspension bracket fixing points (4 points) Install the optional ceiling mount here when suspending the projector from a ceiling. • Lamp cover Open this cover when replacing the lamp inside.

  • Page 11: Appearance

    131.5 *1 Distance from centre of lens to suspension bracket fixing point (Lens shift amount: Max. 8.8 mm vertically) *2 Distance from centre of lens to centre of projector (Lens shift amount: Max. 7.7 mm horizontally) Centre of lens Centre of lens 52.8...

  • Page 12: Setting Up

    120" 150" 300×230 (118×91) Lens shift adjustment The lens shift dials can be used to position the image and is especially useful when using the projector in the following locations. p.16 Hanging from the ceiling A screen in a high location Projector situated to the side so that the screen can be viewed sitting right in front of it Projector situated on a shelf, etc.

  • Page 13: Configuration Menu

    Projection methods Avoid setting the projector up in a place which is very dusty or humid, or where there will be cigarette or other smoke, especially oily smoke. Clean the air filter at least once every 3 months. Clean the air filter more frequently if using the projector in a dusty environment.

  • Page 14: Connecting Image Sources

    Connecting Image Sources • Turn the power off for both the projector and the signal source before connecting them. If the power for either device is on at the time of connection, damage may result. • Check the shapes of the cable connectors and the device ports before making the connections.

  • Page 15: Preparing The Remote Control

    Preparing the Remote Control Inserting batteries into the remote control The remote control is not supplied with batteries already inserted. Insert the accessory batteries before using the remote control. Remove the battery cover. While pressing the knob, lift up. Insert the batteries. Check the (+) and (-) indications inside the battery compartment and...

  • Page 16: Projecting Images

    Remove the lens cover. Connect the power cable. If there is a problem with projection even though the projector is set up and connected correctly, refer to p.15, 36. If you set the "Direct Power On" to "On", the power of the unit will turn ON when the main power switch is turned ON, without having to press the power button of the remote control or the projector's control panel.

  • Page 17: When The Expected Images Are Not Projected

    If more than one signal source has been connected, or if no images are projected, use the remote control or the projector's control panel buttons to select the signal source. For video devices, press the [Play] button on the video equipment first, then select the signal source.

  • Page 18: Adjusting The Projection Screen

    Projection image position adjustment figure on the right when you cannot set up this projector directly in front of the screen, (Lens shift) or when the image is projected too low or too high.

  • Page 19: Correcting Projector Tilt

    Extend Displaying a test pattern You can project a test pattern at times such as when setting up the projector in order to perform adjustments in the line menu, and zoom and focus adjustments without having to connect video equipment.

  • Page 20: Basic Image Quality Adjustments

    Basic Image Quality Adjustments Select Menu Operations Press on the remote control or on on the projector's control panel to select an item. Press to confirm the selection. *If you press , the Select menu disappears. If you project an image that is...
  • Page 21 DVD software. 2: A deep warm tone of colour that gives you the feeling of enjoying a movie at the theatre. , the Epson Cinema Filter will be applied Images recorded by a video camera or DVD Letterbox images...

  • Page 22: Advanced Colour Adjustments

    Advanced Colour Adjustments If you would like to create your own images with settings adjusted the way you want them, you can adjust "Abs. Color Temp.", "Skin Tone" and/or "Advanced" in the "Image" menu. The adjustment values can be stored in the memory so that you can retrieve them and apply them to the projected images at any time.
  • Page 23 This can be used to adjust the skin tones for images of people. The Epson Cinema Filter effect that is automatically applied to images when a "Color Mode" setting is made creates natural-looking skin tones. If you would like to further enhance skin tones, use this "Skin Tone"...

  • Page 24: Rgb Adjustment (Offset, Gain)

    Advanced Colour Adjustments RGB adjustment (Offset, Gain) The image brightness can be adjusted by adjusting the individual R (red), G (green) and B (blue) components of the dark areas (offset) and bright areas (gain). Offset If you would like dark areas to appear more clearly, change the setting to the + (right) side.

  • Page 25: Examining Image Quality Further

    An operation sound of Auto Iris function may be emitted while projecting some images. This is not a failure of the projector. Press , and then select "Image" - "Sharpness". Select "Advanced" at the top-right corner of the screen to confirm the selection.

  • Page 26: Viewing Images At A Preset Image Quality(Memory Function)

    Viewing Images at a Preset Image Quality(Memory Function) After menu commands such as "Image" has been used to adjust the projected images, the adjustment values can then be saved (Save Memory). In addition, the saved data can be retrieved easily, so that you can enjoy viewing images with the adjusted settings at any time (Load Memory).
  • Page 27 Memory settings that have been applied to images will be retained even when the projector's power is turned off. The same memory adjustment settings will be applied to images that are projected the next time the projector's power is turned on.

  • Page 28: Configuration Menu Functions

    Configuration Menu Functions The configuration menus can be used to make a variety of adjustments and settings involving image quality and input signals. The following two types of menu are available. ■ Full menu All items in the configuration menu can be checked while the settings are being made.
  • Page 29 Configuration Menu Functions Changing settings Example: to adjust values. (green): Current setting value to select an item, then press If you press when an item with next to it is selected, the selection screen for that item will be displayed. To return to a previous display, press When setting is complete Press...

  • Page 30: List Of Configuration Menus

    Position Auto Setup Progressive Motion Detection Noise Reduction Output Scaling Setup Level EPSON Super White HDMI Video Range Reset * This is displayed in the line menu. p.30 Dynamic, Living Room, Natural, Theatre,Theatre Black 1, Theatre Black 2 p.30 p.30 p.30...
  • Page 31 Scan Mode Refresh Rate Sync Info Video Signal The "Info" menu is only used to display the projector status. Deep Color Display the color depth of HDMI transmission. This is information about errors that have occurred on the projector. Status This value is sometimes referred to when inquiries are made.

  • Page 32: Image" Menu

    Configuration Menu Functions "Image" menu Color Mode Six different settings can be selected for the Color Mode, to match the images being projected or the projection environment. Brightness Adjust this when the output level of the connected equipment is weak and you feel that images are dark. Contrast Adjusts the difference between bright and dark areas.

  • Page 33: Signal" Menu

    Press Auto Setup This sets automatic adjustment to on or off in order to set whether the projector automatically adjusts images to their optimum condition when the input signal is changed. The three automatically adjusted items are "Tracking", "Position" and "Sync."...

  • Page 34: Progressive

    :Displayed when the signals from [HDMI ] input port are being input. Signals are automatically projected at 100% or 92% size depending on the input signals. (Not displayed when the equipment's DVI port is connected to the projector's [HDMI] input port.) Setup Level...

  • Page 35: Settings" Menu

    The projector is equipped with a power-saving function that causes the power to turn off automatically and the projector to switch to standby if no signal is input to the projector for a continuous length of time. The length of time before the power-saving function operates can be selected from four available settings.

  • Page 36: Input Signal

    • Front : Select when the projector is set up in front of the screen. • Front/Ceiling : Select when the projector is set up in front of the screen and suspended from a ceiling. • Rear : Select when the projector is set up behind the screen.

  • Page 37: Memory" Menu

    Reset Adjustment values for the "Settings" menu functions are returned to their default settings, except for the "High Altitude Mode", "Projection", "Component", "D/SCART", and "Language". "Memory" menu Load Memory This retrieves settings previously saved using "Save Memory". This cannot be selected when nothing is saved at "Save Memory". Save Memory This can be used to save "Image"...

  • Page 38: Problem Solving

    Problem Solving Reading the indicators The projector is provided with the following two indi- cators which notify you of the operating status of the projector. The following tables show what the indicators mean and how to remedy the problems that they indicate.

  • Page 39: When The (Operation) Indicator Is Lit Or Flashing

    You cannot use the remote control or the projector's control panel during cool-down. If the main power switch at the rear of the projector is turned off before cool-down is complete, wait for the lamp to cool down (normally about one hour is required) before turning the power back on again.

  • Page 40: Problems Relating To Images

    Press on the remote control or panel. Turn on the main power switch at the rear of the projector. Disconnect the power cable and then reconnect it. Check the circuit breaker to see if power is being supplied. Press on the remote control to cancel the blank function.

  • Page 41: The Message "Not Supported" Is Displayed

    If the connection is made while the power is already turned on, the function [Fn] key that switches the computer's video signal to external output may not work. Turn the power for the projector and the computer off and then back on again.

  • Page 42: Interference Or Distortion Appear In Images

    Set the projector up in the room approximately one hour before it is to be used. If condensation forms on the lens, turn the power off and wait for the condensation to disappear.

  • Page 43: Image Colours Are Not Right

    Is the lamp due for replacement? Set the computer so that the signals that are output are compatible with this projector. "List of Supported Monitor Displays" p.49 Computer documentation If a composite video or S-Video If projection does not occur when the "Video Signal" menu command is set to "Auto", select the signal format that matches the...

  • Page 44: Projection Stops Automatically

    Press the button on the remote control or the button on the projector's control panel to turn the projector's power back on. To cancel the sleep mode setting, change "Sleep Mode" menu command to "Off". "Settings" - "Sleep Mode" p.33...

  • Page 45: Problems When Projection Starts

    The operating range for the remote control is approximately 10m. p.13 Set the projector up in a location where strong light will not shine onto the remote control light-receiving area. Insert new batteries, while making sure that they face correctly.

  • Page 46: Maintenance

    This section describes maintenance tasks such as cleaning the projector and replacing consumable parts. Cleaning You should clean the projector if it becomes dirty or if the quality of projected images starts to deteriorate. Be sure to read the separate Safety Instructions/World-Wide Warranty Terms booklet for details on safe handling of the projector during cleaning.

  • Page 47: Consumable Replacement Periods

    Consumable replacement periods Air filter replacement period • If the air filter has been broken or the "Replace" message is displayed even though the air filter has been cleaned. Replace with an optional air filter. Replacing the air filter p.46 Lamp replacement period •...

  • Page 48: Replacing Consumables

    Furthermore, you should stand to the side of the projector, not underneath it. Resetting the lamp operating time The lamp operating time must always be reset after the lamp has been replaced with a new one.
  • Page 49 Remove the old air filter. Loosen the lamp fixing screws. Install the lamp and the lamp cover securely. The lamp will not turn on if the lamp or the lamp cover is not installed correctly. This product includes a lamp component that contains mercury (Hg). Please consult your local regulations regarding disposal or recycling.

  • Page 50: Optional Accessories / Consumables

    (with ceiling plate) Use when installing the projector to a ceiling. Celling Pipe 600 (600 mm/white)* Use when installing the projector to a high ceiling or a ceiling with veneer panels. * A special method of installation is required in order to suspend the projector from the ceiling.

  • Page 51: List Of Supported Monitor Displays

    List of Supported Monitor Displays Depending on the setting, the output screen resolution will change slightly. Component Video Signal Resolution 720×480 SDTV (525i, 720×360 * 60Hz) 720×576 SDTV(625i, 50Hz) 720×432 * 720×480 SDTV(525p) 720×360 * 720×576 SDTV(625p) 720×432 * HDTV (750p) 1280×720 16:9 HDTV(1125i)

  • Page 52: Computer Image (Analog Rgb)

    List of Supported Monitor Displays Computer image (analog RGB) Signal Resolution VGA 60 VESA72/75/85, iMac SVGA 56/60/72/ 75/85, iMac XGA 60/70/75/ 1024×576 85, iMac WXGA60-1 WXGA60-2 SXGA 60 MAC13" MAC16" MAC19" *1 Connection is not possible if the equipment does not have a VGA output port. *2 Letterbox signal It may be possible to project signals which are not listed in the above table.

  • Page 53: Specifications

    PC input HDMI input Video input S-Video input RS-232C Trigger out Other detailed spec, please access your location (country/area) from Epson homepage, www.epson.com Pixelworks DNX Pixel clock : 13.5 to 150 MHz Horizontal : 15 to 80 kHz Vertical : 50 to 85 Hz Pixel clock : 13.5 to 150 MHz...
  • Page 54 UL60950-1 Canada CSA C22.2 No.60950-1 The Low Voltage Directive (73/23/EEC) IEC/EN60950-1 , it could damage the projector and cause an accident. º : D-Sub 9-pin (male) : RS-232C <At computer> <At projector> (PC serial cable) <At computer> FCC Part 15B Class B (DoC)
  • Page 55 Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Personal Computers : EPSON AMERICA, INC. : 3840 Kilroy Airport Way MS: 313 Long Beach, CA 90806...

  • Page 56: Glossary

    [Power] button on either the remote control or the projector's control panel has been pressed to turn off the projector. Do not turn off the main power switch while cool-down is in progress, otherwise the cool-down process will not work properly.
  • Page 57 A device consisting of a protector case with a hole in it that a commercially-available theft-prevention cable can be passed through in order to secure the device to a table or pillar. This projector is compatible with the Microsaver Security System manufactured by Kensington. SVGA...

  • Page 58: Index

    Cool-down... 15,36 Correcting projector tilt ... 6,17 Direct Power On ... 29,33 Display ... 29,34 Display Background ... 27,34 Epson Cinema Filter ... 21 EPSON Super White... 28,32 Erase Memory... 29,35 Focus adjustment ... 6,16 Front adjustable foot ... 6,17 Full ...
  • Page 59 Refresh Rate ... 29 Remote control ... 7,13 Replacing the air filter... 46 Replacing the battery... 13 Replacing the lamp... 46 Reset... 28,29,31,33,35 Reset All... 29,35 "Reset" menu... 29,35 Reset Lamp Hours... 29,35,46 Reset Memory ... 29,35 Resolution ... 29,49 RGB...
  • Page 60 MEMO...
  • Page 61 MEMO...
  • Page 62 MEMO...
  • Page 63 Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorised modifications, repairs, or alter- ations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corpora-...
