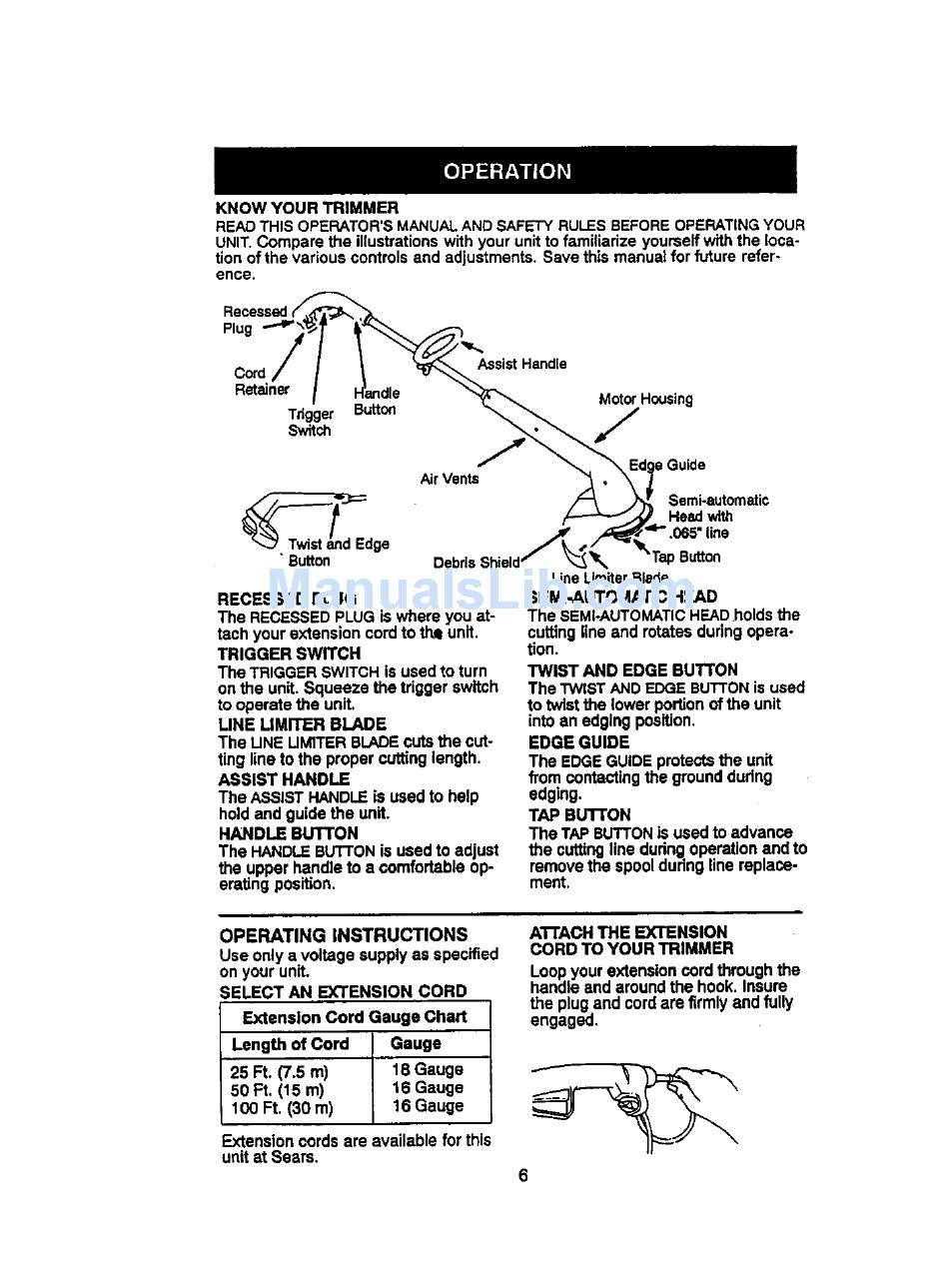

KNOW YOUR TRIMMER
READ THIS
OPERATOR'S MANUALAND SAFETY RULES BEFOREOPERATINGYOUR
UNIT. Compare the illustrationswith your unit to familiadze yourself with the loca-
tion of the various controls and adjustments. Save this manual for future refer-
ence.
Recessed
Plug
Cord
Retainer
Assist Handle
MotorHousing
AirVen_
_dge
"Buffon
RECESSED PLUG
The RECESSED PLUG is where you at-
tach your extension cord to the unit.
TRIGGER SWITCH
The TRIGGER SWITCH is used to turn
on the unit. Squeeze the trigger switch
to operate the unit.
LINE UMITER BLADE
The LINE UM1TERBLADEcuts the cut-
ting line to the proper cutting length.
ASSIST HANDLE
The ASSIST HANDLE is used to help
hold and guide the unit.
HANDLE BUTTON
The HANDLEBUTTON is used to adjust
the upper handle to a comfortable op-
erating position.
3 Guide
Semi-antometic
Headwith
-.065" line
_Tap Button
Une LimiterBlade
SEMI-AUTOMATIC HEAD
The SEMI-AUTOMATICHEADholds the
cutting line and rotates during opera-
tion.
_IST AND EDGE BUII'ON
The TWIST ANDEDGE BURTONis used
to twlst the lower portion of the unit
into an edging position.
EDGE GUIDE
The EDGEGUIDE protects the unit
from contacting the ground dudng
edging.
TAP Bun'oN
The TAP BUTTONis used to advance
the cutting line dudng operation end to
remove the spool during line replace-
ment.
OPERATING INSTRUCTIONS
Use only a voltage supply as specified
on your unit.
SELECT AN EXTENSION CORD
Extension Cord Gauge Chart
Length of Cord Gauge
25 Ft. (7.5 m) 18 Gauge
50 Ft. (15 m) 16 Gauge
100 Ft. (30 m) 16 Gauge
Extension cordsare availableforthis
unitat Sears.
ATI'ACH THE EXTENSION
CORD TO YOUR TRIMMER
Loop your extension cord through the
handle and around the hook, Insure
the plug and cord are firmly and fully
engaged.
