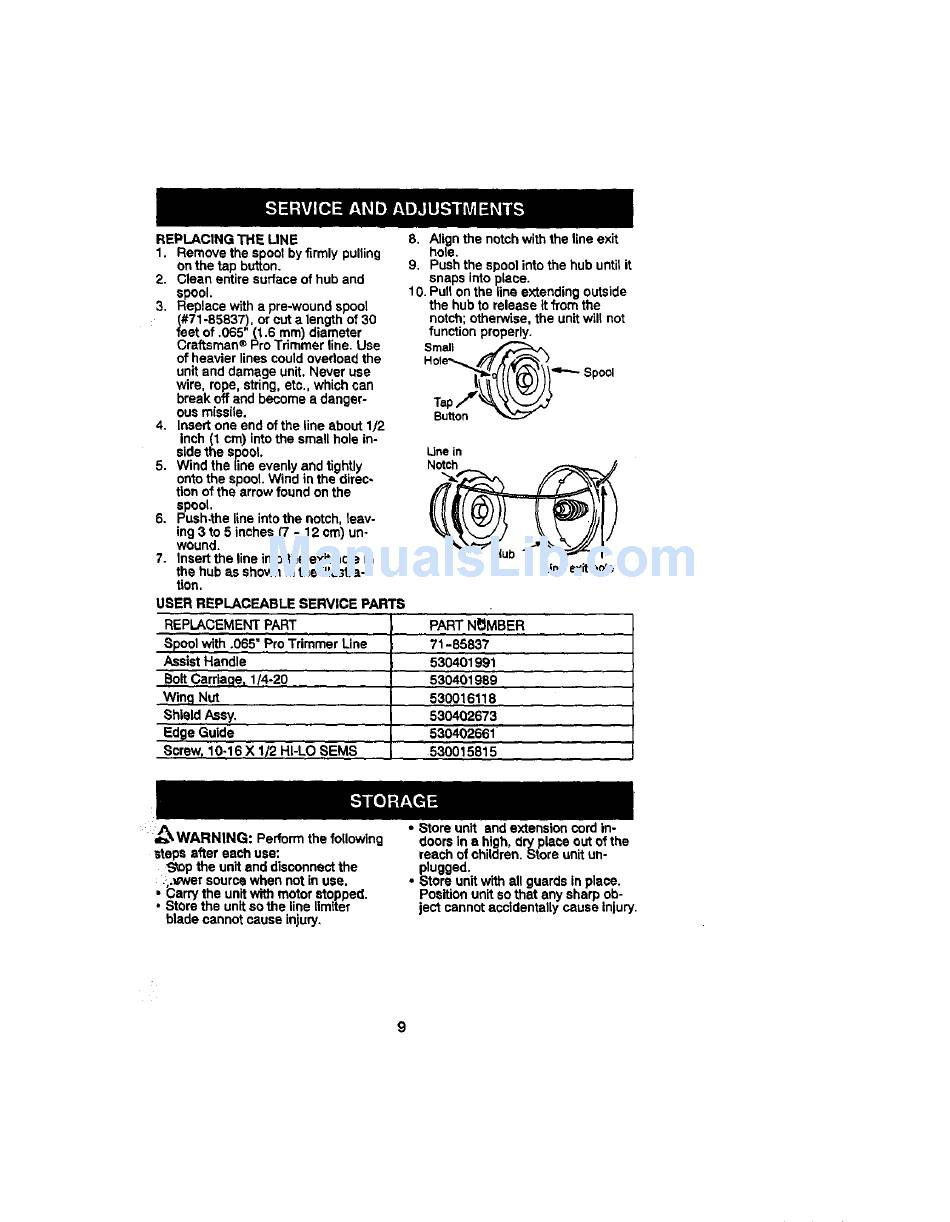

Craftsman WEEDWACKER 358.799470 Operator's Manual page 9

REPLACING THE UNE
1. Remove thespool by firmly pulling
onthetapbutton.
2. Clean e ntire s urface o fhub and
spool.
3. Replace with a pre-wound spool
te#71-85837), or cut a length of 30
et of .065"(1.6 ram) diameter
Craftsman® Pro Trimmer line. Use
of heavier lines could overload the
unit and damage unit. Never use
wire, rope, string, etc., which can
break off and become a danger-
ous missile.
4. Insert one end of the line about lj2
inch (1 cm) into the small hole in-
side the spool.
5. Wind the line evenly and tightly
onto the spool. Wind in the direc-
tion of the arrow found on the
spool.
6. Push.the line intothe notch, leav-
ing 3 to 5 inches (7 - 12 cm) un-
wound.
7. Insert the line into the exit hole in
the hub as shown in the illustra-
tion.
USER REPLACEABLE SERVICE PARTS
8, Align the notch with the line exit
hole,
9. Push the spool into the hub until it
snaps into p[aca.
10. Puff on the line extending outside
the hub to release it fTomthe
notch; otherwise, the unit will not
function properly.
Hol "=-'-- Spool
Button
Line in
Notch
REPLACEMENT PART
Spool with .065" Pro Trimmer Line
Assist Handle
Bolt Carriaqe, 1/4-20
Wing Nut
Shield Assy,
Edge Guide
Screw_ 10-16 X 1/2 HI-LO SEMS
PART N_MBER
71-88837
530401991
530401989
530016118
530402673
530402661
530015815
_WARNING: Perform the following
steps after each use:
Stop the unit and disconnect the
.,._,wer source when not in use.
• Carry the unit with motor stopped.
• Store the unit so the line limiter
blade cannot cause injury,
Line exit hoie
• Store unit and extension cord in-
doors in a high, dry placa out of the
reach of children.Store unit un-
• plugged. , . .
Store unit with all guaros In place.
Position unit so that any sharp ob-
ject cannot accidentally cause Injury.
9
