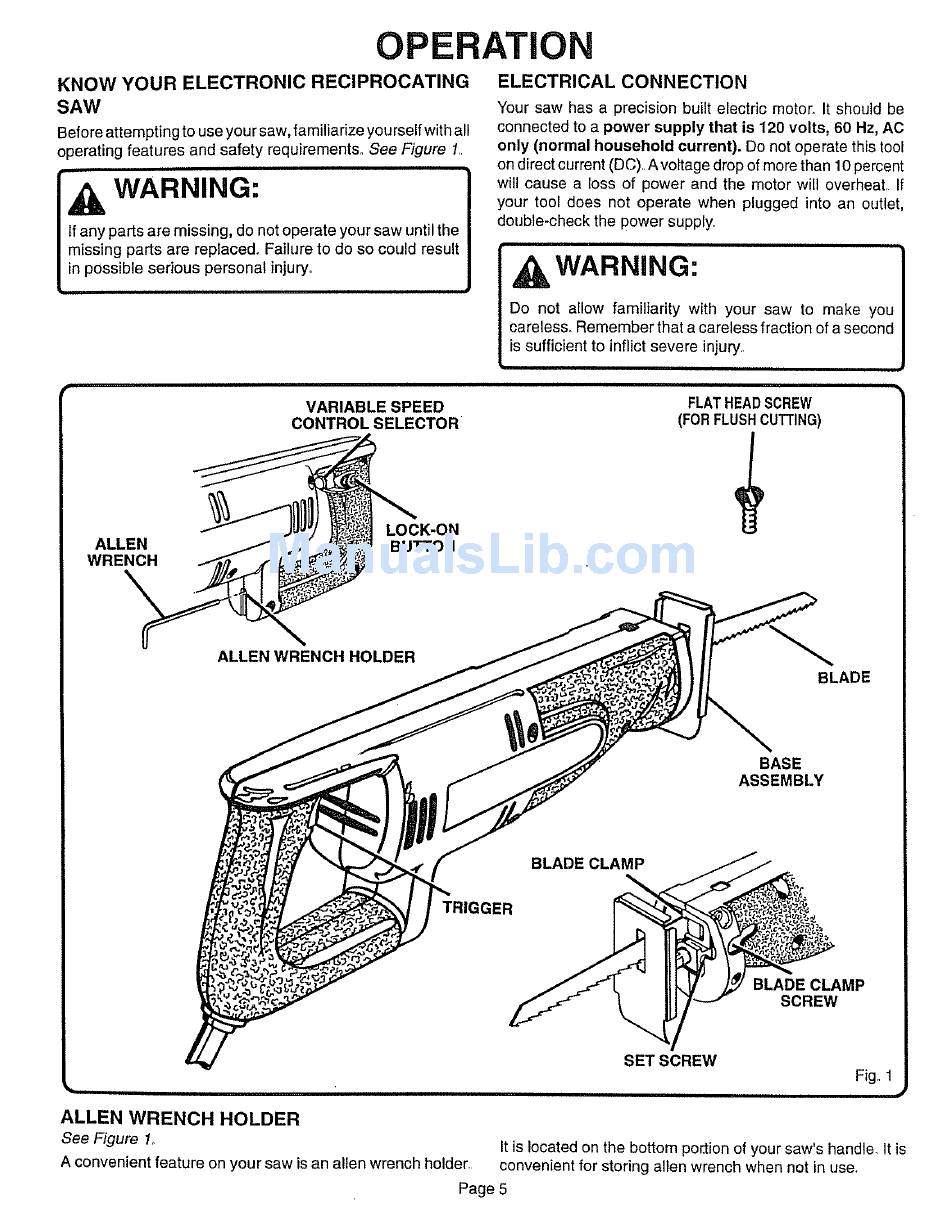

OPERATION
KNOW YOUR ELECTRONIC RECIPROCATING
SAW
Before attempting to use you r saw, familiarize you rself with all
operating features and safety requirements. See Figure 1
WARNING:
If any parts are missing, do not operate your saw until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.
i
ELECTRICAL CONNECTION
Your saw has a precision built electric motor. It should be
connected to a power supply that is 120 volts, 60 Hz, AC
only (normal household current). Do not operate this tool
on direct current (DC) A voltage drop of more than 10 percent
will cause a loss of power and the motor will overheat. If
your tool does not operate when plugged into an outlet,
double-check the power supply
, WARNING:
Do not allow familiarity with your saw to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict severe injury
ALLEN
WRENCH
VARIABLE SPEED
CONTROL SELECTOR
LOCK-ON
BUTTON
FLATHEADSCREW
(FORFLUSHCUTTING)
ALLEN WRENCH HOLDER
BLADE
BASE
ASSEMBLY
TRIGGER
BLADE CLAMP
SCREW
SET SCREW
Fig 1
ALLEN WRENCH HOLDER
See Figure 1,
A convenient feature on your saw is an allen wrench holder,
It is located on the bottom portion of your saw's handle. It is
convenient for storing allen wrench when not in use.
Page 5
