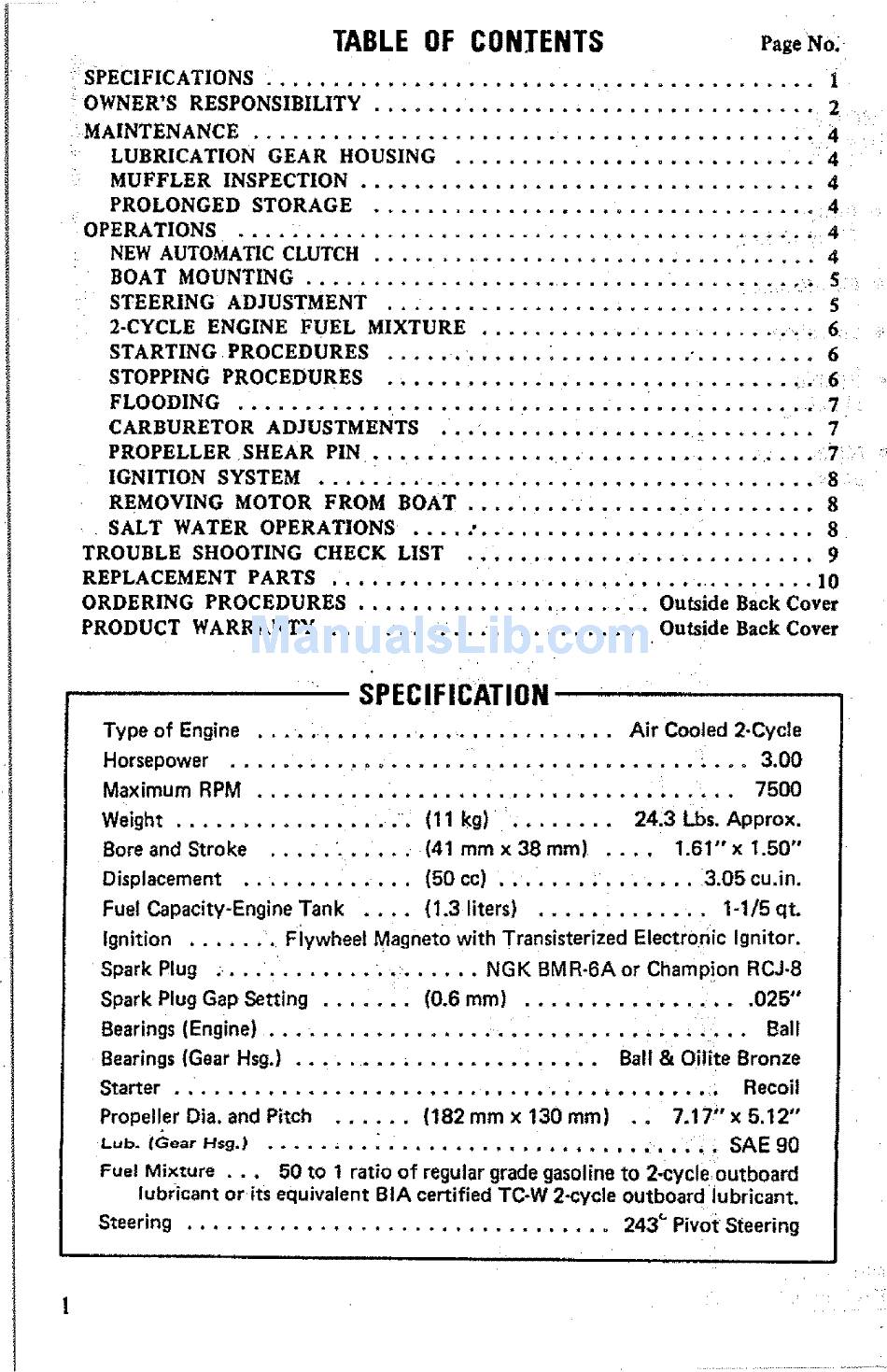

TABLE OF CONTENTS
PageNo:
SPECIFICATIONS ......................................... 1
: OWNER*S RESPONSIBILITY
.................................
2
MAINTENANCE .......................................... 4
LUBRICATION GEAR HOUSING ........................... 4
MUFFLER INSPECTION .................................. 4
PROLONGED STORAGE ................................. 4
OPERATIONS . ............................................. 4
NEW AUTOMATIC CLUTCH ................................. 4
BOAT MOUNTING .................................. _ _ .. 5
STEERING ADJUSTMENT ................................ 5
2-CYCLE ENGINE FUEL MIXTURE ......................... 6
STARTING PROCEDURES ............ _ .......... o......... 6
STOPPING PROCEDURES ................................. 6
FLOODING ........................................... 7
CARBURETOR ADJUSTMENTS ............................ 7
PROPELLER SHEAR PIN ........................ .......... 7
IGNITION SYSTEM ..................................... 8
REMOVING MOTOR FROM BOAT .......................... 8
SALT WATER OPERATIONS ..... "......................... 8
TROUBLE SHOOTING CHECK LIST .......................... 9
REPLACEMENT PARTS ..................................... 10
ORDERING PROCEDURES ...................... Outside Back Cover
PRODUCT WARRANTY ........................ Outside Back Cover
SPECIFICATION
Type of Engine .............................. Air Cooled 2-Cycle
Horsepower ....................................... 3.00
Maximum RPM .................................... 7500
Weight .................. (11 kg) ........ 24.3 Lbs. Approx.
Bore and Stroke ..... . ..... (41 mmx 38 ram) .... 1.61" x 1.50"
Displacement ............. (50 cc) ............... 3.05 cu.in.
Fuel Capacity-Engine Tank .... (1.3 liters) ............. 1-1/5 qt.
Ignition ....... Fiywheet Magneto with Transisterized Electronic Ignitor.
Spark Plug . ........... ........ NGK BMR-6A or Champion RCJ.8
Spark Plug Gap Setting ....... (0.6 mm) ................. 025"
Bearings (Engine) .................................... Ball
Bearings (Gear Hsg.) ....................... Ball & Oilite Bronze
Starter ......................................... Recoil
Propeller Dia. and Pitch ...... (182 mmx 130 ram) .. 7.17" x 5.12"
Lub. tGear Hsg.) .................................. SAE 90
Fuel Mixture . .. 50 tO 1 ratio of regular grade gasoline to 2-cycle outboard
lubricant or its equivalent BtA certified TC-W 2-cycle outboard lubricant.
Steering ................................ 243 _ Pivot Steering
