Craftsman 580.752880 Operator's Manual page 24

CRAFTSMAN 2700 PSi PressureWasher 580.752880

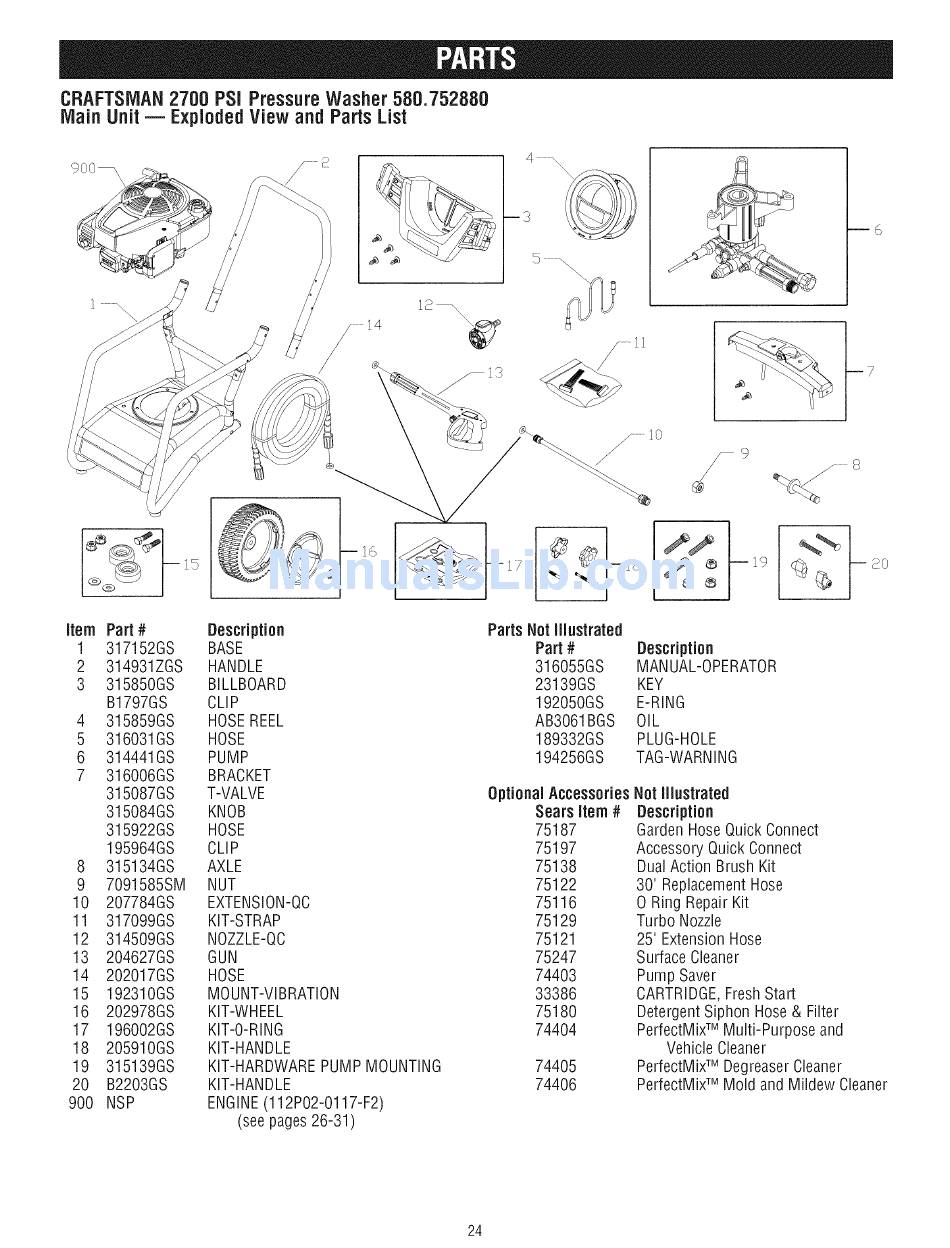

Main Unit = Exploded View and Parts List
/14
Item Part # Description
1 317152GS BASE
2 314931ZGS HANDLE
3 315850GS BILLBOARD
B1797GS CLIP
4 315859GS HOSEREEL
5 316031GS HOSE
6 314441GS PUMP
7 316006GS BRACKET
315087GS T-VALVE
315084GS KNOB
315922GS HOSE
195964GS CLIP
8 315134GS AXLE
9 7091585SM NUT
10 207784GS EXTENSlON-@C
11 317099GS KIT-STRAP
12 314509GS NOZZLE-QC
13 204627GS GUN
14 202017GS HOSE
15 192310GS MOUNT-VIBRATION
16 202978GS KK-WHEEL
17 196002GS KIT-O-RING
18 205910GS KK-HANDLE
19 315139GS KK-HARDWARE PUMP MOUNTING
20 B2203GS KK-HANDLE
900 NSP ENGINE(112PO2-O117-F2)
(see pages 26-31)
Parts Not Illustrated
Part #
316055GS
23139GS
192050GS
AB3061BGS
189332GS
194256GS
Optional Accessories
Sears Item #
75187
75197
75138
75122
75116
75129
75121
75247
74403
33386
75180
74404
74405
74406
m6
18
_9
/
/
@
®
Description
MANUAL-OPERATOR
KEY
E-RING
OIL
PLUG-HOLE
TAG-WARNING
Not Illustrated
Description
Garden Hose Quick Connect
Accessory Quick Connect
Dual Action Brush Kit
30' Replacement Hose
0 Ring Repair Kit
Turbo Nozzle
25' Extension Hose
Surface Cleaner
Pump Saver
CARTRIDGE, F resh Start
DetergentSiphon Hose & Filter
PerfectMix
TM
Multi-Purpose and
Vehicle Cleaner
PerfectMix
TM
DegreaserCleaner
PerfectMix
TM
Mold and Mildew Cleaner
