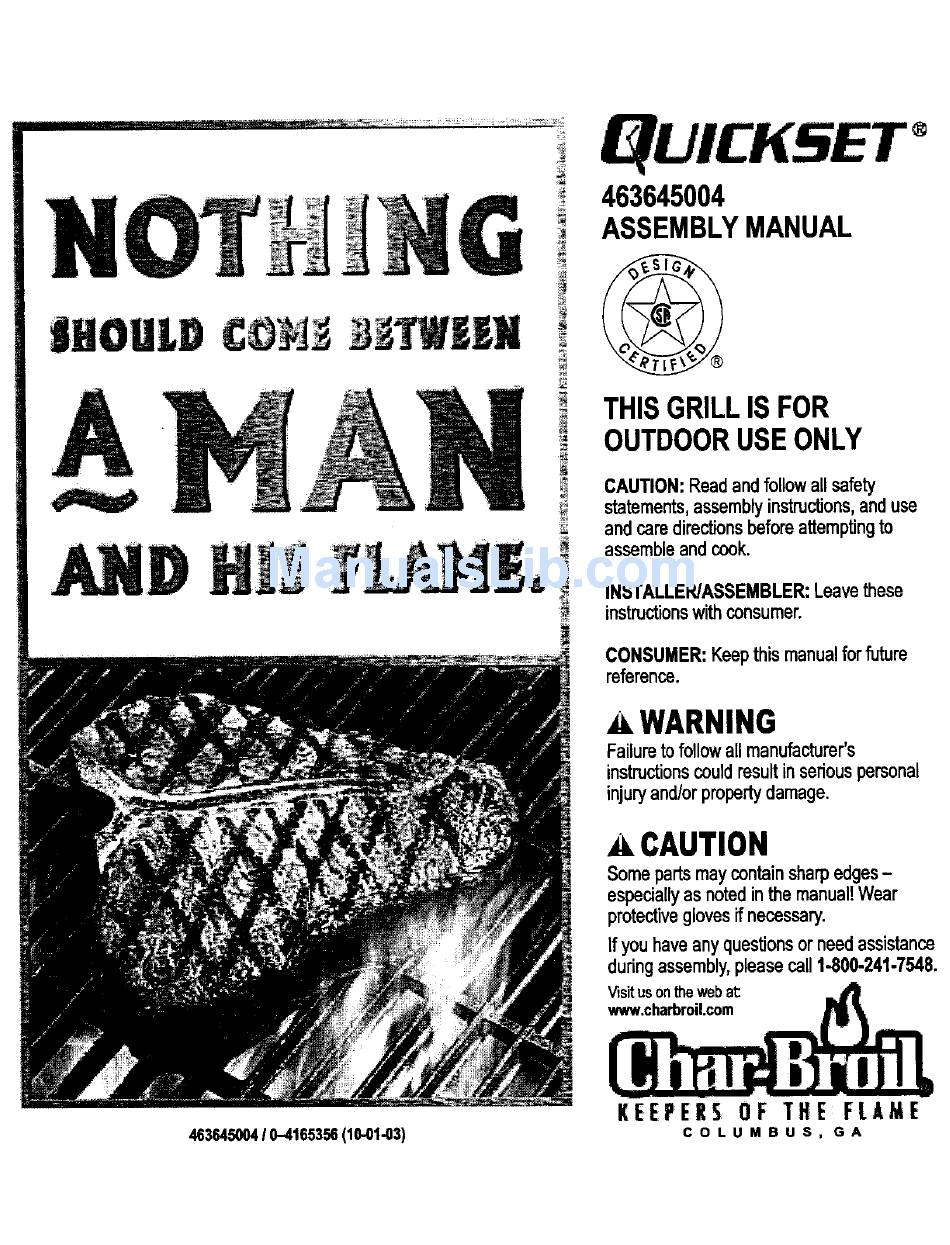

( UIEKSET
®
463645004
ASSEMBLY MANUAL
THISGRILLIS FOR
OUTDOOR USEONLY
CAUTION:Readandfollow allsafety
statements, assembly instructions, anduse
andcaredirections b eforeattempting t o
assemble andcook.
O
J
INSTALLER/ASSEMBLER: Leavethese
instructions withconsumer.
CONSUMER: K eepthismanual f orfuture
reference.
A WARNING
Failure tofollow allmanufacturer's
instructions couldresult in seriouspersonal
injuryand/orpropertydamage.
46364500410-4165356 (10-01-03)
A CAUTION
Somepartsmay containsharpedges-
especially a snotedin themanual!Wear
protective g loves if necessary.
If you haveanyquestionsorneedassistance
during assembly, pleasecall1-800-241.7548.
Visituson the.webat:
..41_
KEEPERS OF THE FLAME
COLUMBUS,
GA
Advertisement
Related Manuals for Char-Broil Quickset 463645004
Summary of Contents for Char-Broil Quickset 463645004
- Page 1 • ...._;_':_iLL_,_,_i_ _j_i_! ¸ _ i • _!i_ i_ •_ _!_ _ ( UIEKSET ® 463645004 ASSEMBLY MANUAL THISGRILLIS FOR OUTDOOR USEONLY CAUTION:Readandfollow allsafety statements, assembly instructions, anduse andcaredirections b eforeattempting t o assemble andcook. INSTALLER/ASSEMBLER: Leavethese instructions withconsumer. CONSUMER: K eepthismanual f orfuture reference.
- Page 2 1 SideSupport B race D.Securewithcarriage bolts andtee knobs. 4 Carriage Bolt, 2 " NOTE:Leaveteeknobs looseonright side. 4 Plastic TeeKnob Front Leave these loose. Qty.4 Side (Fits inside legs.) iii! Qty.4 NOTE:To prevent s cratching, laygrill o npacking materialtoassemble,...
- Page 3 Partsto assemble: 1 BackSupport B race 4 Carriage Bolt,2" 4 Plastic Tee Knob Wheel 2 AxleBolt Extender i 2 Wheel TankSupport 1 TankSupport B racket ..Bracket 2 HitchPin 2 LegExtender Leavetee knobs A. Turnassemblyupside-down. on this side B. Secureback braceand sidebraceto left leg loose, and back braceto right legwith carriagebolts and tee knobs.
- Page 4 Partsto assemble: 1 CondimentBasket A. Standcart upright. B. Placecondiment basket hooksoverfront panelbolts on insideof front leg. !iil See insetA. C.. Placecondimentbasket hooksover backsupport Condiment braceboltson outsideof Basket brace.See insetlB. D.. Fullytighten tee knobs on bothlegs.
- Page 5 Partsto assemble: Grill Bottom 1 Grill BottomAssembly 4 CarriageBolt, 1¼" 4 MetalWing Nut 2 ControlKnob A. Makesureignitor w ireisconnected ControlKnobs to ignitor. B. Placegrillbottomontosupports.Control paneloverlaps front panel. C. Secure withcarriage bolts andwingnuts. D. Presscontrol knobs ontovalves. Panel Qty. 4 Qty. 4...
- Page 6 Partsto assemble: 1 Vaporiser B ar CookingGrate 1 Cooking Grate A. Placevaporiserbar ontothetwo inner supportridgesat eachendof grill bottom. Bar should rest betweenthe outersupport ridges.See inset below. B. Placecookinggrate ontogrill bottom. NOTE: Ceramicbriquetsare not required, Support Ridge...
- Page 7 Partsto assemble: A. Placeshelvesonto legs (curvededge inward). 2 Side Shelf B. Securewith carriageboltsandcrownfasteners or T knobs. 8 CarriageBolt,2" 8 Crown Fasteners or PlasticT Knobs SideShelf CurvedEdge Qty. 8 Qty.8 Qty.8...
- Page 8 Partsto assemble: 1 GrillLid Logo Plate_ 1 Handle 1 Machine Screw,1¾" 1 MetalWing Nut 2 HingePin 2 HitchPin GrillLid 1 LogoPlate NOTE:Grill lid A. Attachlidto gdllbottom with stylemayvary. hingeandhitchpins. B.Attach handle tolid withmachine screwandmetalwingnut. C. Snaplogo plateintogrilllid. Qty,2 Qty.1 Qty.1...
- Page 9 Partsto assemble: 1 SwingAway A. Slide rear pivotwireof SwingAwayinto holes in grilllid. Wire B. Insertlegwires into top hole of three-holepattern in side of grill bottom. NOTE:Grilllid style mayvary.
- Page 10 Parts to assemble: 1 TankRetainerWire 1 CarriageBolt, 1¼" 1 PlasticTee Knob A. Attach retainer wire to left side brace with carriage bolt and tee knob. Leave loose. ii!i Qty. 1 Tank Retainer Wire...
- Page 11 Partsto assemble: LP tank is soldseparately.Fill and 1 LP GasTank leakcheckbeforeattachingto grill (notincluded) andregulator. A. CenterLP tank on supportbracket with collar openingto front. B. Slide retainerovertank collarand tightentee knob. LP GasTank CAUTION Tankcollaropeningmustfaceto frontof cartonce tank is attached. Failureto install tank correctlymay allowgas hoseto be damagedin operation,resultingin the riskof fire.
- Page 12 Partsto assemble: 1 GreaseClip A. Hang grease clip beneathgrill bottom. B. Hang an emptysoup can (not included)from grease clip. CAUTION • Failureto install can in clip will causehot grease to drip from bottom of grill with risk of fire or property damage.
