Carrier 48SD Owner's Information Manual
Comfort 13 single-packaged gas heat/electric cooling unit with r-22 refrigerant
Hide thumbs
Also See for 48SD:
- User's information manual (6 pages) ,
- Installation instructions manual (28 pages)
Table of Contents
Advertisement
_rn to the Expertg[
Owner's Information Manual

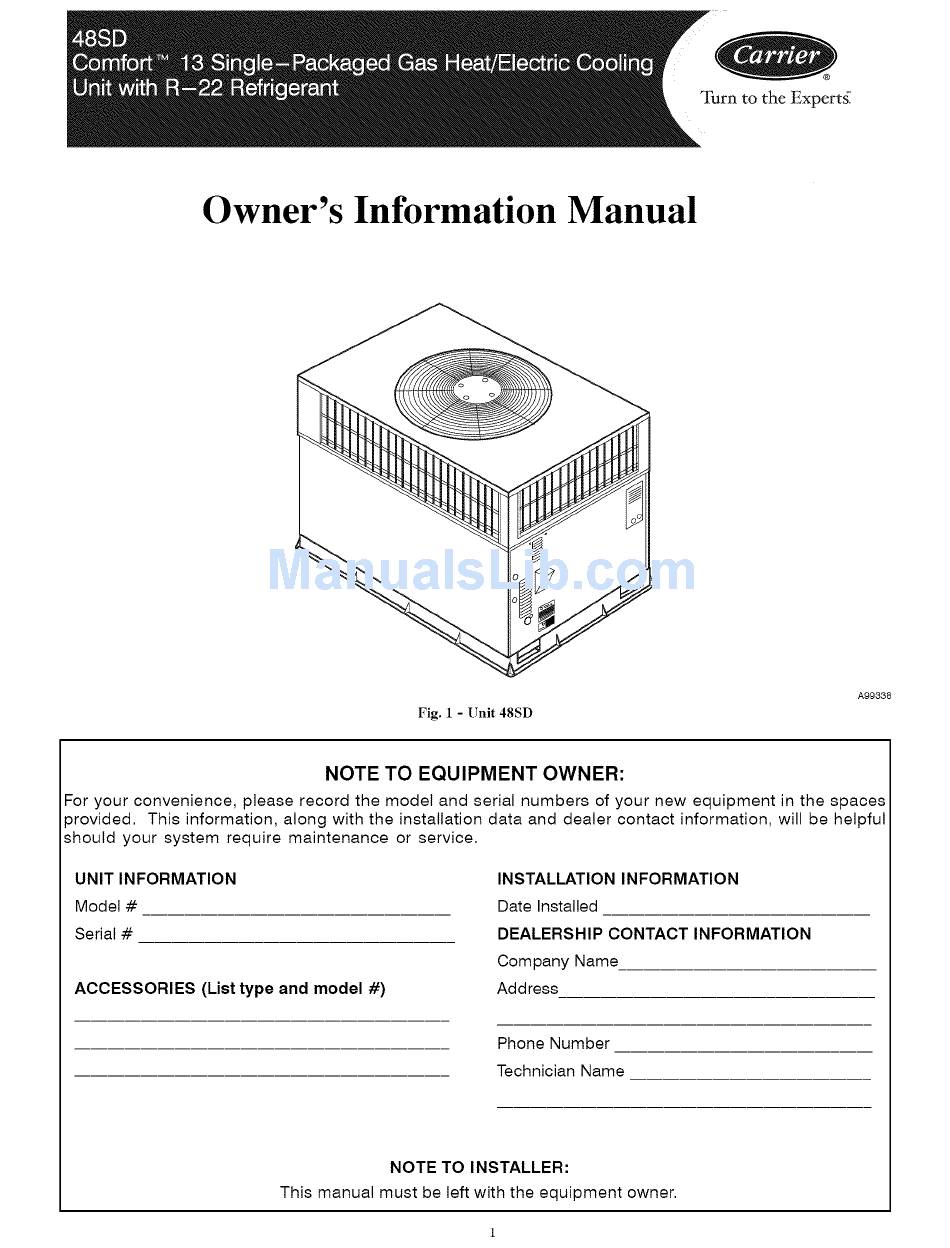

Fig. 1 - Unit 48SD
A99338
NOTE TO EQUIPMENT
OWNER:
For your convenience,
please record the model and serial numbers
of your new equipment
in the spaces
provided.
This information,
along with the installation
data and dealer contact information,
will be helpful
should
your system
require maintenance
or service.
UNIT INFORMATION
Model #
Serial #
ACCESSORIES
(List type and model #)
INSTALLATION
INFORMATION
Date Installed
DEALERSHIP
CONTACT INFORMATION
Company Name
Address
Phone Number
Technician Name
NOTE TO INSTALLER:
This manual must be left with the equipment
owner,
