Black & Decker FS2400D Instruction Manual

1/2" - 13mm 24 volt cordless hammer drill
Hide thumbs

Advertisement

Quick Links

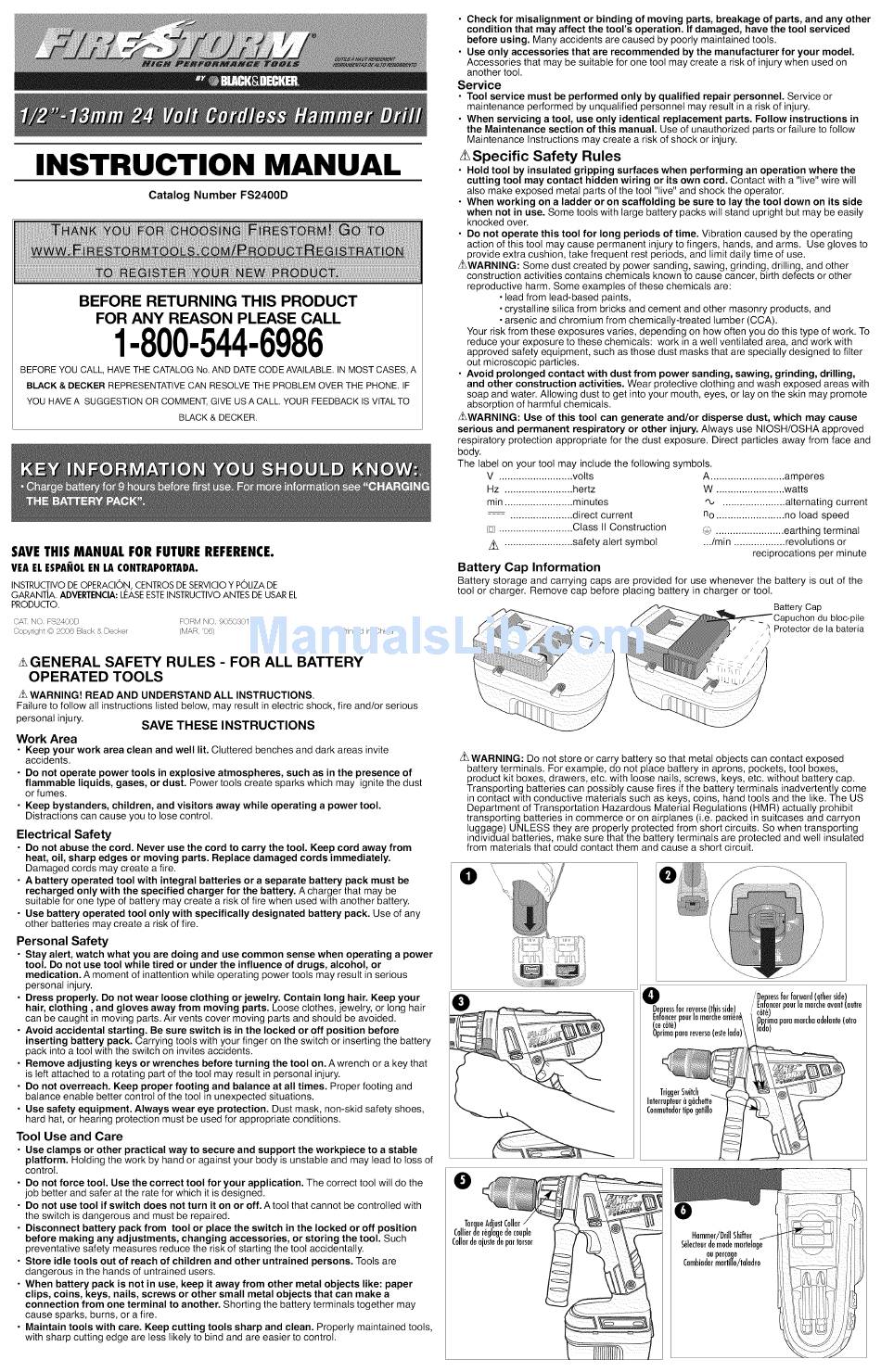

INSTRUCTION
MANUAL
Catalog
Number
FS2400D
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON PLEASE CALL
1-800-544-6986
BEFORE YOU CALL, HAVE THE CATALOG No. AND DATE CODE AVAILABLE. IN MOST CASES, A
BLACK & DECKER REPRESENTATIVE CAN RESOLVE THE PROBLEM OVER THE PHONE. IF
YOU HAVE A SUGGESTION OR COMMENT, GIVE US A CALL. YOUR FEEDBACK IS VITAL TO
BLACK & DECKER.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
VEA EL ESPANOL EN LA CONTRAPORTADA.
INSTRUCTIVO DEOPERACION,CENTROS DESERVICIO Y P©LI_ DE
GARANTJA. A DVERTENCIA: LEASE ESTE INSTRUCTIVO ANTES DE USAREL
PRODUCTO.
CAT, NO, FS2400D
Copyright COP 2006 Black & Decker
FORMNO. 90503016
(MAR.'O6)
Printed in China
GENERAL
SAFETY RULES - FOR ALL BATTERY
OPERATED
TOOLS
Z_WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result in electric shock, fire and/or serious
personal injury.
SAVE THESE
INSTRUCTIONS
Work Area
• Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
• Do not operate power tools in explosive atmospheres,
such as in the presence of
flammable
liquids, gases, or dust. Power tools create sparks which may ignite the dust
or fumes.
• Keep bystanders,
children,
and visitors
away while operating
a power tool.
Distractions can cause you to lose control.
Electrical
Safety
• Do not abuse the cord. Never use the cord to carry the tool. Keep cord away from
heat, oil, sharp edges or moving parts. Replace damaged cords immediately.
Damaged cords may create a fire.
• A battery operated tool with integral batteries or a separate battery pack must be
recharged only with the specified charger for the battery. A charger that may be
suitable for one type of battery may create a risk of fire when used with another battery.
• Use battery operated
tool only with specifically
designated
battery pack. Use of any
other batteries may create a risk of fire.
Personal
Safety
• Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use tool while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
• Dress properly.
Do not wear loose clothing
or jewelry. Contain
long hair. Keep your
hair, clothing,
and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts. Air vents cover moving parts and should be avoided.
• Avoid accidental
starting.
Be sure switch is in the locked or off position
before
inserting
battery pack. Carrying tools with your finger on the switch or inserting the battery
pack into a toot with the switch on invites accidents.
• Remove adjusting
keys or wrenches
before turning the tool on. A wrench or a key that
is left attached to a rotating part of the toot may result in personal injury.
• Do not overreach.
Keep proper footing and balance at all times. Proper footing and
balance enable better control of the toot in unexpected situations.
• Use safety equipment.
Always wear eye protection.
Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used for appropriate conditions.
Tool Use and Care
• Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss of
control.
• Do not force tool. Use the correct tool for your application.
The correct toot will do the
job better and safer at the rate for which it is designed.
• Do not use tool if switch does not turn it on or off. A toot that cannot be controlled with
the switch is dangerous and must be repaired.
• Disconnect
battery pack from tool or place the switch in the locked or off position
before making any adjustments,
changing
accessories,
or storing the tool. Such
preventative safety measures reduce the risk of starting the tool accidentally.
• Store idle tools out of reach of children
and other untrained
persons. Tools are
dangerous in the hands of untrained users.
• When battery pack is not in use, keep it away from other metal objects
like: paper
clips, coins, keys, nails, screws or other small metal objects that can make a
connection
from one terminal
to another. Shorting the battery terminals together may
cause sparks, burns, or a fire.
• Maintain tools with care. Keep cutting
tools sharp and clean. Properly maintained tools,
with sharp cutting edge are less likely to bind and are easier to control.
• Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the tool's operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
• Use only accessories
that are recommended
by the manufacturer for your model.
Accessories that may be suitable for one toot may create a risk of injury when used on
another toot.
Service
• Tool service must be performed
only by qualified
repair personnel.
Service or
maintenance performed by unqualified personnel may result in a risk of injury.
• When servicing a tool, use only identical
replacement
parts. Follow instructions
in
the Maintenance section of this manual. Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of shock or injury.
z Specific
Safety Rules
• Hold tool by insulated gripping surfaces when performing an operation where the
cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will
also make exposed metal parts of the tool "live" and shock the operator.
• When working
on a ladder or on scaffolding
be sure to lay the tool down on its side
when not in use. Some tools with large battery packs will stand upright but may be easily
knocked over.
• Do not operate this tool for long periods
of time. Vibration caused by the operating
action of this toot may cause permanent injury to fingers, hands, and arms. Use gloves to
provide extra cushion, take frequent rest periods, and limit daily time of use.
z_WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated
lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a welt ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling,
and other construction
activities. Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote
absorption of harmful chemicals.
Z_WARNING: Use of this tool can generate
and/or disperse
dust, which may cause
serious and permanent
respiratory
or other injury. Always use NIOSH/OSHA approved
respiratory protection appropriate for the dust exposure. Direct particles away from face and
body.
The label on your toot may include the following symbols.
V .......................... volts
Hz ........................ hertz
min ........................ minutes
....
...................... direct current
[] .......................... Class II Construction
Z_ ........................ safety alert symbol
Battery
Cap Information
A .......................... amperes
W ........................ watts
...................... alternating current
no ........................ no load speed
G ........................ earthing terminal
.../min .................. revolutions or
reciprocations per minute
Battery storage and carrying caps are provided for use whenever the battery is out of the
toot or charger. Remove cap before placing battery in charger or toot.
Battery Cap
)uchon du bloc-pile
Protector de la bateria
/
I
J /
z_ WARNING: Do not store or carry battery so that metal objects can contact exposed
battery terminals. For example, do not place battery in aprons, pockets, toot boxes,
product kit boxes, drawers, etc. with loose nails, screws, keys, etc. without battery cap.
Transporting batteries can possibly cause fires if the battery terminals inadvertently come
in contact with conductive materials such as keys, coins, hand tools and the like. The US
Department of Transportation
Hazardous Material Regulations (HMR) actually prohibit
transporting batteries in commerce or on airplanes (i.e. packed in suitcases and carryon
luggage) UNLESS they are properly protected from short circuits. So when transporting
individual batteries, make sure that the battery terminals are protected and well insulated
from materials that could contact them and cause a short circuit.
O
\
\
_ress for reverse,
"Dearess for forward (otherside)
Enfoncer
pouremerche e vent ( eutre
lapare marcha a delante (otto
0
Torque Adjust Collar
Collier d er6glege decouple
Collar deejuste d eperterser
Hammer/Drill
Shifter
S61ecteur
demode mertelage
oupercage
Cambiador
maitillo/taladro
