- Page 1 CABINET PARTS REFRIGERATOR For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Part No. W10189682 Rev.A 7−09 Litho In U.S.A. (pl) (psw)
-

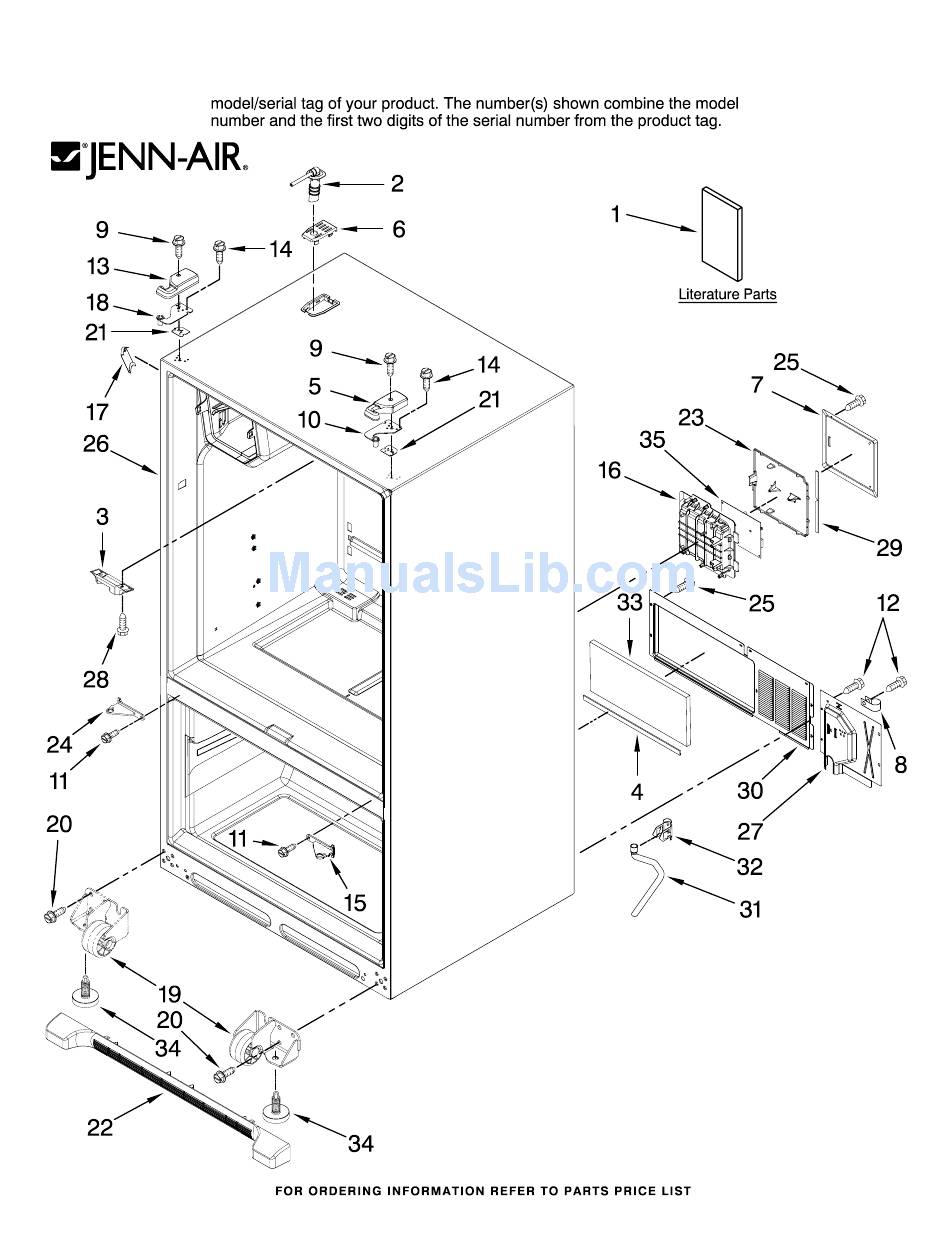

Page 2: Cabinet Parts
CABINET PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Shim, Top Hinge Literature Parts 67006380 Screw, Center 67006308 Left W10189628 Tech Sheet Hinge... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the W10189682... - Page 4 REFRIGERATOR LINER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67006328 Module, Light 67006326 Foil, Light 67006327 Cover, Light 67006316 Grille, Air 12466103 Switch, Light (2)
-
Page 5: Shelf Parts
SHELF PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the W10189682... - Page 6 SHELF PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part DESCRIPTION 67002332 Glass, Pantry 67005912 Front, Crisper Pan (2) 3 W10187463 Shelf, Mini (Stationary) 67006010 Extr, Glass Support (2)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the W10189682... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part DESCRIPTION 67007112 Ice Bin Assembly (Includes Auger) 2 W10121282 Inlet, Blower 3 W10121281 Scroll, Blower 4 W10162697 Motor, Fan 5 W10123444 Wheel, Blower...
-
Page 9: Icemaker Parts
ICEMAKER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the W10189682... - Page 10 ICEMAKER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part DESCRIPTION 1 W10122527 Mold & Heater Assembly (Also Order 542638 Grease) 2 W10175514 Arm, Shutoff 628515 Cup, Fill 627843 Ejector 2182124 Ice Stripper...
-
Page 11: Freezer Liner Parts
FREEZER LINER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the W10189682... - Page 12 FREEZER LINER PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002355 Thermistor Kit 12002497 Gear (Left) (Incl.
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the W10189682... - Page 14 REFRIGERATOR DOOR PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006314 Frame, Chiller Door, Left Handle, Door (Front) W10187650 White...
-
Page 15: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Control Assembly Housing, Dispenser Chute, Ext/Yoke W10187560 White (Not Serviced) (Includes Switch) -
Page 16: Freezer Door Parts
FREEZER DOOR PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door Gasket, Door 67007118 Glide, Upper W10187641 White W10162897 White Retainer, Glide... -
Page 17: Unit Parts
UNIT PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the W10189682... - Page 18 UNIT PARTS For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 21 W10169124 Grommet (4) 67006433 Screw Following Parts Not Illustrated 22 W10184230 Evaporator 2 W10162928 Blade, Fan...
- Page 19 OPTIONAL PARTS (NOT INCLUDED) For Models: JFI2089AEB10, JFI2089AEP10, JFI2089AES10, JFI2089AEW10 (Black) (Black) (Stainless) (White) The model(s) number shown may be different than what is printed on the Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black...
