CABINET PARTS
REFRIGERATOR
REFRIGERATOR
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
1
10−11 Litho In U.S.A. (MMS)(bay)
Part No. W10268073 Rev.C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JFC2290VEP1 and is the answer not in the manual?

Questions and answers

Related Manuals for Jenn-Air JFC2290VEP1

Summary of Contents for Jenn-Air JFC2290VEP1

  • Page 1 CABINET PARTS REFRIGERATOR REFRIGERATOR For Models: JFC2290VEP1, JFC2290VEM1 (Stainless Steel)(Monochromatic Stainless) 10−11 Litho In U.S.A. (MMS)(bay) Part No. W10268073 Rev.C...

  • Page 2: Cabinet Parts

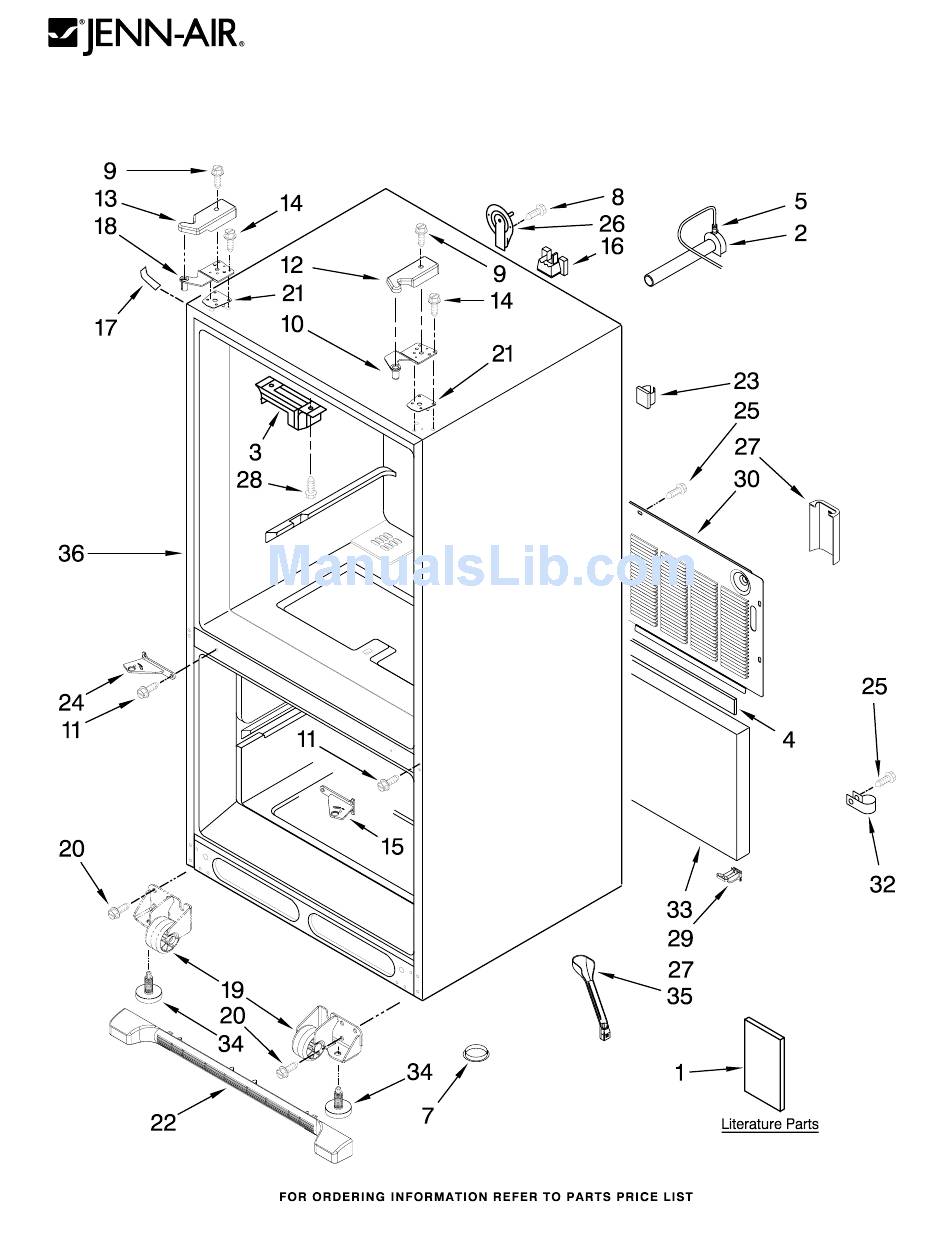

    CABINET PARTS For Models: JFC2290VEP1, JFC2290VEM1 (Stainless Steel)(Monochromatic Stainless) Illus. Part DESCRIPTION Literature Parts W10238853 Tech Sheet 12828196SP Owners Manual W10214832 Tag, Energy 2 10463203SP Elbow, Fill Tube 3 W10120087 Block, Pivot B5759655 Gasket 5 M0114003SP Clip, Speed A3076901 Plug, Button 12990504 Screw 12992603 Screw 10 W10210891 Hinge, Top Right...
