Crosscut Fence; Extension Fence; Extension Table - Woodstock SHOP FOX W1822 Owner's Manual

Model W1822 (For Machines Mfg. Since 9/10)

Crosscut Fence

The crosscut fence can be positioned anywhere along the
sliding table and at angle between 50° left and 50° right.
To position the fence along the sliding table, loosen the
two pivot handles, the set screw on the forward end
of the miter gauge bar, and the miter gauge lock knob
(see Figure 15). Then, move the fence to the desired
location and re-tighten the set screw, lock knob, and pivot
handles.
To adjust the fence angle, loosen the two pivot handles
and rotate the fence to the desired angle. Then,
re-tighten the pivot handles to secure the setting.

Extension Fence

Use the extension fence to expand the support for long
workpieces.
To pull out the extension fence from the crosscut fence,
loosen lock knob shown in Figure 16, position the
extension fence for your operation, then re-tighten the
lock knob.
The extension fence scale can be positioned to display the
actual distance from the blade by loosening the thumb
screw shown in Figure 16, match the reading of the scale
with the distance from the blade as shown with a tape
measure, then re-tighten the thumb screw.

Extension Table

The extension table is used to give the optimum
horizontal support for the workpiece to the side of the
sliding table.
To position the extension table, loosen the two lock levers
shown in Figure 17, slide the extension table along the
sliding table to the desired location, make sure the tables
are even with each other to fully support the workpiece,
then re-tighten the lock levers.
Lock Knob

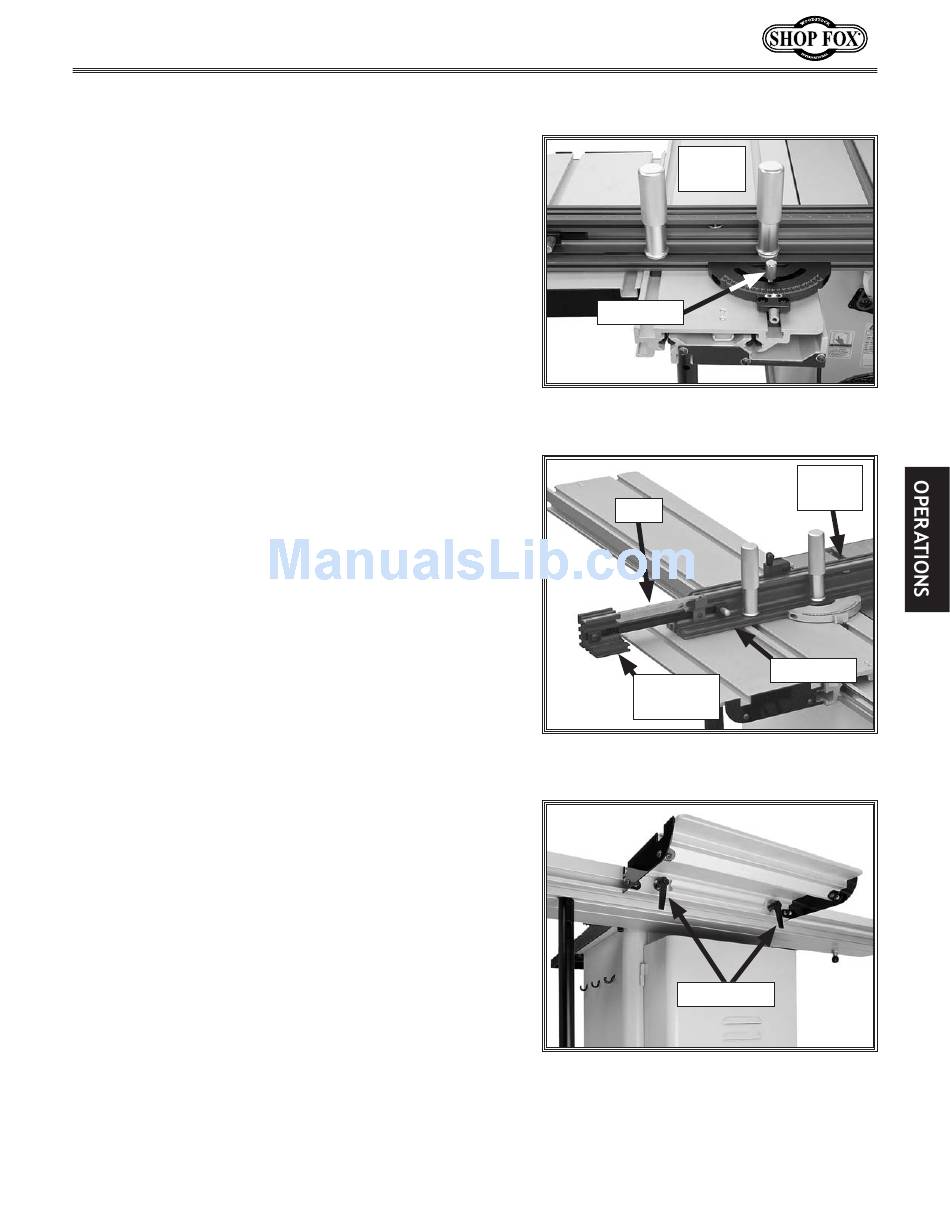

Figure 15. Pivot handles and miter gauge
Scale
Figure 16. Extension fence controls.
Figure 17. Locations of the extension
-13-
Pivot
Handles
lock knob.
Thumb
Screw
Lock Knob
Extension
Fence
Lock Levers
table lock levers.
