Woodstock SHOP FOX W1693 Instruction Sheet

• Read and understand these instructions! Woodstock International Inc. shall not be
responsible for damage or injuries caused by improper use or modification of this
machine.
• If you do not understand these instructions or if you have questions, contact Woodstock
International Technical Support at (360) 734-3482 before proceeding.
Introduction
The elliptical jig enables the Model W1693 Planer/Moulder
to cut up to 6 ⁄ " wide curved mouldings if they have a
1
2
radius greater than 7" and a minimum length of 9". The
moulding material must be pre-cut to the desired arc and
" thick template as shown in Figure 1.
attached to a ⁄
3
4
Elliptical Jig Assembly
To assemble the jig, do these steps:
1. Lay the contents of the shipping box out to take an
inventory of the main components.
Box Contents (Figure 2) .............................QTY
A. Base Plate with Vise .................................1
B. Base Plate Support Studs ............................4
Hex Nuts ⁄
3
8
Flat Washers
C. Flat Head Screws
D. Wrench 12/14mm ....................................1
E. Hex Wrenches 4 & 6mm ......................... 1 Ea
F. Mounting Clamps .....................................2
If any parts appear to be missing, examine the pack-
aging carefully to be sure those parts are not among
the packing materials. If any parts are missing, find
the part number in the back of this instruction sheet
and contact Woodstock International, Inc. at (360)
734-3482 or at tech-support@shopfox.biz.
-16 .......................................8
⁄ " ......................................8
3
8
⁄ -20 x ⁄ " ......................6
1 1
4 2
Model D3393
Elliptical Jig
Instruction Sheet

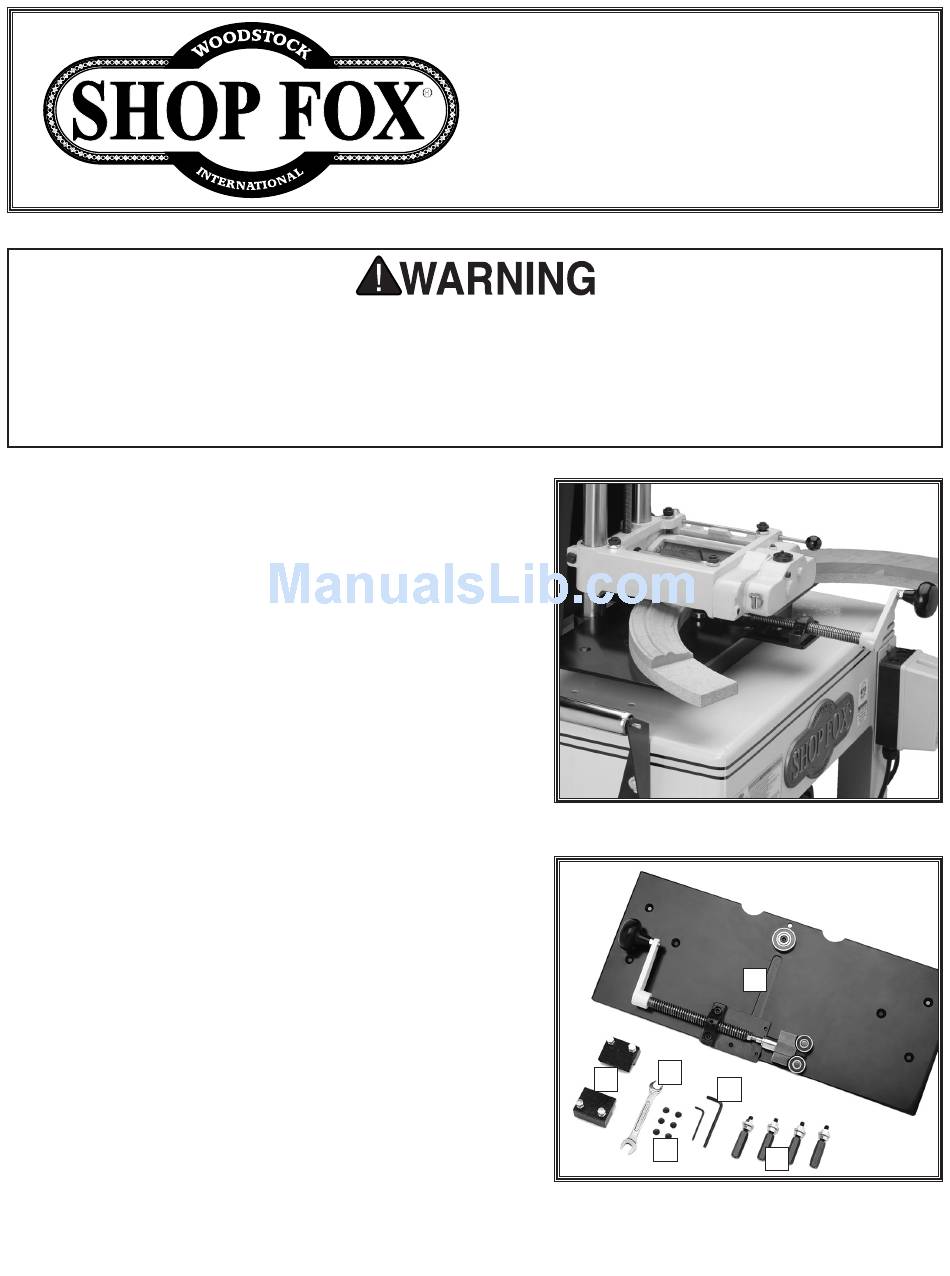

Figure 1. Cutting arched moulding.
D
F
E
C
Figure 2. Elliptical jig inventory.
A
B
