Model W1800
Spray Gun Holder
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

Introduction

Your new Model W1800 Spray Gun Holder (Figure 1) is
designed to hold a spray gun and a paint filter.

Inventory

(Figure 1)
A. Spray Gun Holder Base ...................................1
B. Filter Holder ................................................1
FIRE HAZARD! Mount the spray gun holder in a
location away from potential ignition sources. Many
paints and liquids are flammable. Ignoring this
warning may lead to serious personal injury.

Workbench Mounting

Attach the spray gun holder base to a workbench using
two #12 tap screws (not included).
Note: Consider mounting the base to the front of a work-
bench with the rings facing out for convenience. This also
ensures that a spray gun equipped with a pressure gauge
or adapter will not hit the bench when mounted on the
holder, as shown in Figure 2.

Wall Mounting

Mount the spray gun holder base to a wall with drywall
anchors or fasten it to a board attached to studs using #12
tap screws.
Holder Assembly & Operation
1. Assemble the base and holder, then position the spray
gun and filter (not included), as shown in Figure 2.
2. Pour paint into the filter; it should flow into the feed
cup.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#9573BL
COPYRIGHT © JUNE, 2007 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Qty
A

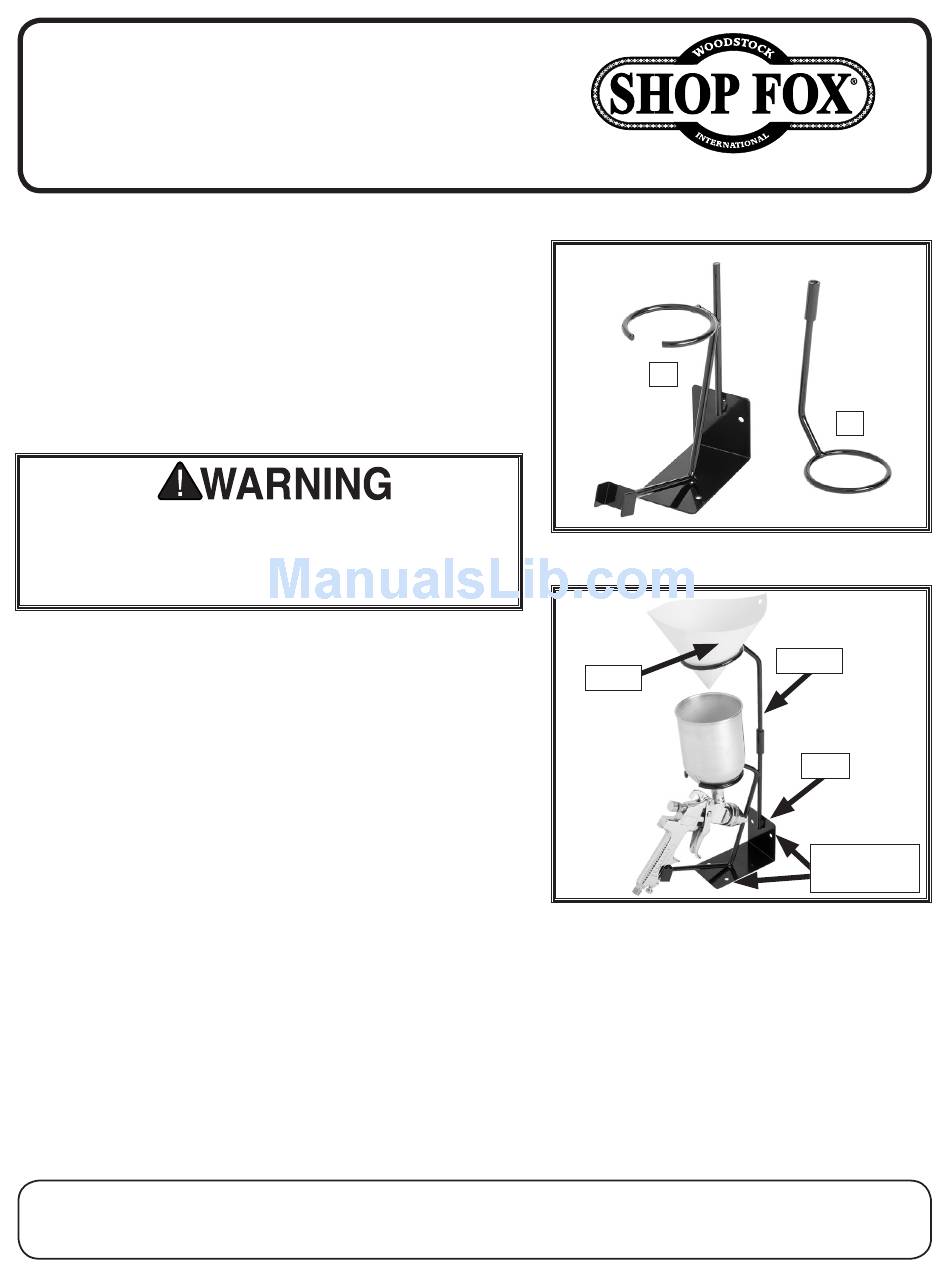

Figure 1. Model W1800 inventory.
Filter
Figure 2. Model W1800 setup to filter
B
Holder
Base
Mounting
Holes
paint.
