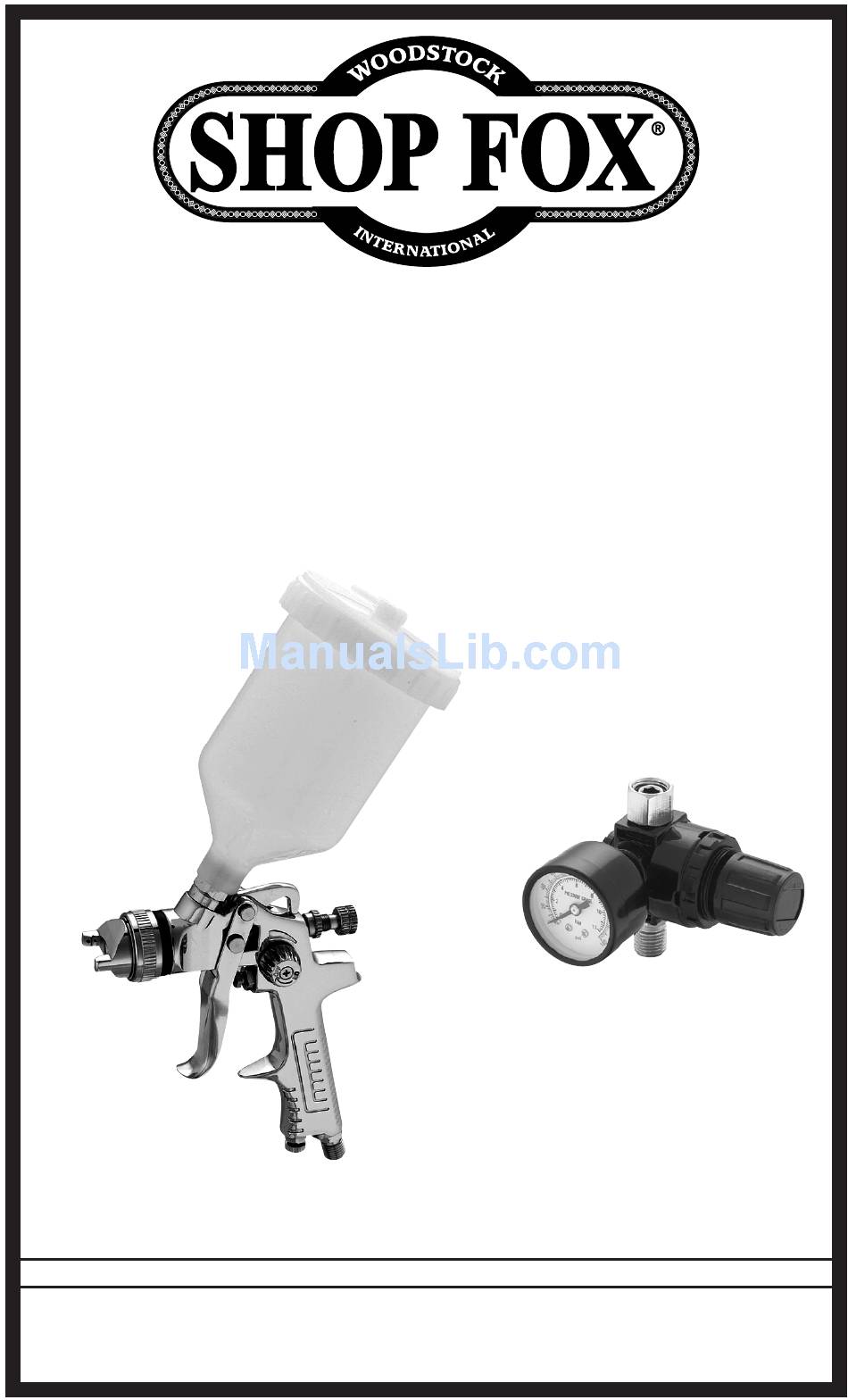

MODEL D3274
GRAVITY FEED SPRAY
GUN W/REGULATOR
OWNER'S MANUAL
Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz
COPYRIGHT © JULY, 2008 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#10833JM PRINTED IN CHINA
Advertisement
Table of Contents
Related Manuals for Shop fox SHOP FOX D3274
Summary of Contents for Shop fox SHOP FOX D3274
- Page 1 OWNER'S MANUAL Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz COPYRIGHT © JULY, 2008 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
-
Page 3: Safety Instructions For Pneumatic Tools
Model D3274 Gravity Feed Spray Gun w/Regulator SAFETY For Your Own Safety Read Instruction Manual Before Operating This Equipment The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. - Page 4 Model D3274 Gravity Feed Spray Gun w/Regulator Safety Instructions for Pneumatic Tools 10. USE PROPER AIR HOSE for the 17. DISCONNECT TOOLS before tool. Make sure your air hose is in servicing, changing accessories, or good condition and is long enough moving to another location.
-
Page 5: Additional Safety Instructions For Spray Guns
Model D3274 Gravity Feed Spray Gun w/Regulator Additional Safety Instructions for Spray Guns READ THIS MANUAL. This manual PROTECTIVE CLOTHING. Protect contains proper operating exposed skin from overspray by instructions for this spray gun. wearing a protective suit or other approved garment. -
Page 6: Woodstock Technical Support
Close attention to detail, ruggedly built parts and a rigid quality control pro- gram assure safe and reliable operation. Woodstock International, Inc. is commit- ted to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product. - Page 7 Model D3274 Gravity Feed Spray Gun w/Regulator SETUP Unpacking This tool has been carefully packaged for safe transportation. If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately. Inventory The following is a description of the main components shipped with the Model D3274. Lay the components out to inventory them.
-
Page 8: Specifications
Model D3274 Gravity Feed Spray Gun w/Regulator Specifications Controls Operating Air Pressure .... 30–50 PSI Material Cup Maximum Air Pressure ....70 PSI Material Cup Capacity ....600 CC Fluid Control Air Consumption ....4.2–7.1CFM Atomizing Pattern Control Maximum Fluid Pressure ....10 PSI Regulator Control Cup Material ......Plastic Body Material ....Aluminum Alloy... - Page 9 Model D3274 Gravity Feed Spray Gun w/Regulator OPERATIONS Spraying The Model D3274 HVLP (high volume, low pressure) spray gun set is designed to spray a wide variety of materials like lacquers, stains, primers, multi- component paints, clear coats, acrylics, epoxies etc. It is ideal for auto body and woodworking projects.
- Page 10 Model D3274 Gravity Feed Spray Gun w/Regulator Note: Trigger position B (Figure 7. Adjust the fluid control knob (Figure 5) introduces air to the paint gun, 3), to start with a low volume of so that position C (spray), is dust, material and keep the atomization as spatter, and cloud free.
-
Page 11: Atomizing Cap And Fan Adjustments
Model D3274 Gravity Feed Spray Gun w/Regulator Atomizing Cap and Fan Pattern Adjustments The atomizing cap needs to be adjusted for horizontal or vertical spraying Stroke patterns. Spraying in the wrong direction may lead to material build up on the atomizing cap horn. -
Page 12: Cleaning And Lubrication
Model D3274 Gravity Feed Spray Gun w/Regulator CLEANING & LUBRICATION 4. Disassemble the gun by unscrewing the fluid control knob by hand, and removing the spring and needle (Figure 9). Filter Fluid Tip EYE INJURY! Always wear safety Fluid Control Knob glasses when disassembling the spray gun. -
Page 13: Explosion Hazard
Model D3274 Gravity Feed Spray Gun w/Regulator Depending on the amount of use and the type of material used, the spray gun may need to be disassembled and cleaned EXPLOSION HAZARD! Chlorinated beyond what is mentioned on Page 10. Solvents like Tricloroethane and If spray patterns become affected due Methylene Chloride (methyl chloride) to internal blockages or the gun will be... -
Page 14: Troubleshooting
Model D3274 Gravity Feed Spray Gun w/Regulator Troubleshooting NOTICE Before Troubleshooting, make sure your paint is properly thinned or reduced according to the instructions given by the paint manufacturer. Symptom Possible Cause Possible Solution Fluttering or 1. Dry or worn fluid tip seat 1. - Page 15 Model D3274 Gravity Feed Spray Gun w/Regulator Symptom Possible Cause Possible Solution Excessive over- 1. Fluid pressure too high. 1. Reduce fluid pressure. spray. 2. Gun is too far from surface. 2. Keep gun at recommended distance. 3. Spraying too fast. 3.
- Page 16 Model D3274 Gravity Feed Spray Gun w/Regulator D3274 PARTS BREAKDOWN 23 24 25 26 35 36 37 38 17 18 19 20 21 22 * Not Included; for aftermarket purchase only -14-...
- Page 17 Model D3274 Gravity Feed Spray Gun w/Regulator D3274 PARTS LIST REF PART # DESCRIPTION REF PART # DESCRIPTION XD3274001A AIR INLET VALVE ASSEMBLY XPEC02M E-CLIP 4MM XD3274001A AIR ADJ. SCREW XD3274030A BREATHER PLUG XD3274001A AIR ADJ. KNOB XD3274030A CONTAINER COVER XD3274001A O-RING 2.5 X 2.1 30A XD3274030A CONTAINER ASSEMBLY XD3274001A DOMED SEAL WASHER...
-
Page 18: Warranty And Returns
Woodstock International, Inc. will repair or replace, at its expense and at its option, the Shop Fox machine or machine part which in normal use has proven to be defective,... -
Page 19: Warranty Registration
Warranty Registration Name ___________________________________________________________________________________ Street __________________________________________________________________________________ City _________________________ State ___________________________Zip ________________________ Phone # ______________________ Email___________________________Invoice # ___________________ Model #_________Serial #______________Dealer Name__________________Purchase Date___________ The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. - Page 20 FOLD ALONG DOTTED LINE Place Stamp Here WOODSTOCK INTERNATIONAL INC. P.O. BOX 2309 BELLINGHAM, WA 98227-2309 FOLD ALONG DOTTED LINE TAPE ALONG EDGES--PLEASE DO NOT STAPLE...
