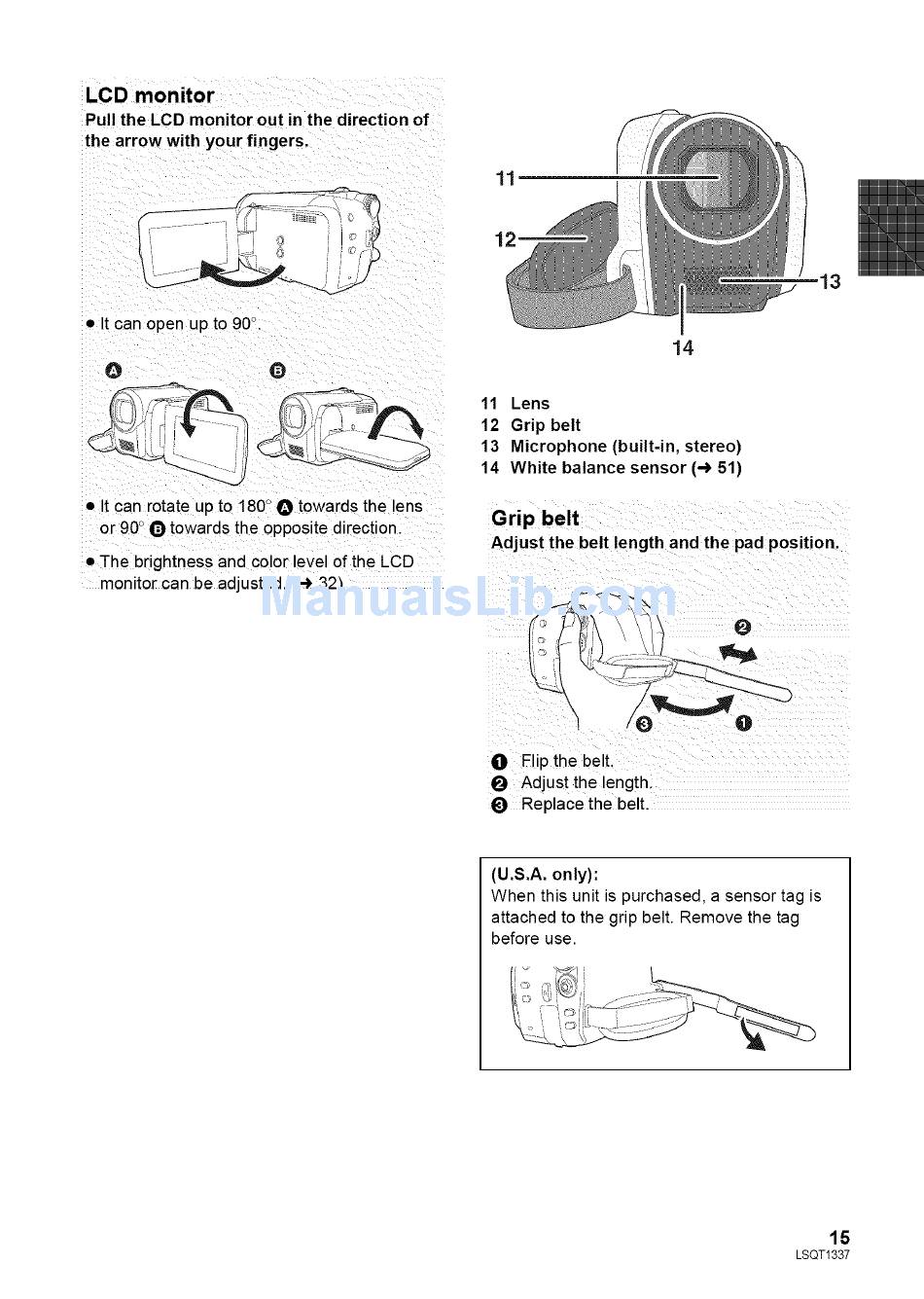

LCD monitor
Pull the LCD monitor out in the direction of
the arrow with your fingers,
• It can open up to 90_.
O Q
• It can rotate up to 180°O towards the lens
or 90 ° O towards the opposite direction.
• The brightness and color level of the LCD
monitor can be adjusted. (-) 32)
11
13
14
11 Lens
12 Grip belt
13 Microphone (built-in, stereo)
14 White balance sensor (4 51)
Adjust t he b:lt len g! h and the pad position!
Flip the belt.
O Adjust the length.
I_1 Replace the belt.
(U.S.A. only):
When this unit is purchased, a sensor tag is
attached to the grip belt. Remove the tag
before use.
15
LSQT1337
