Panasonic SDR-H90P Service Manual

Sd card / hard disk video camera
Hide thumbs Also See for SDR-H90P:
Table of Contents

Advertisement

Quick Links

Download this manual

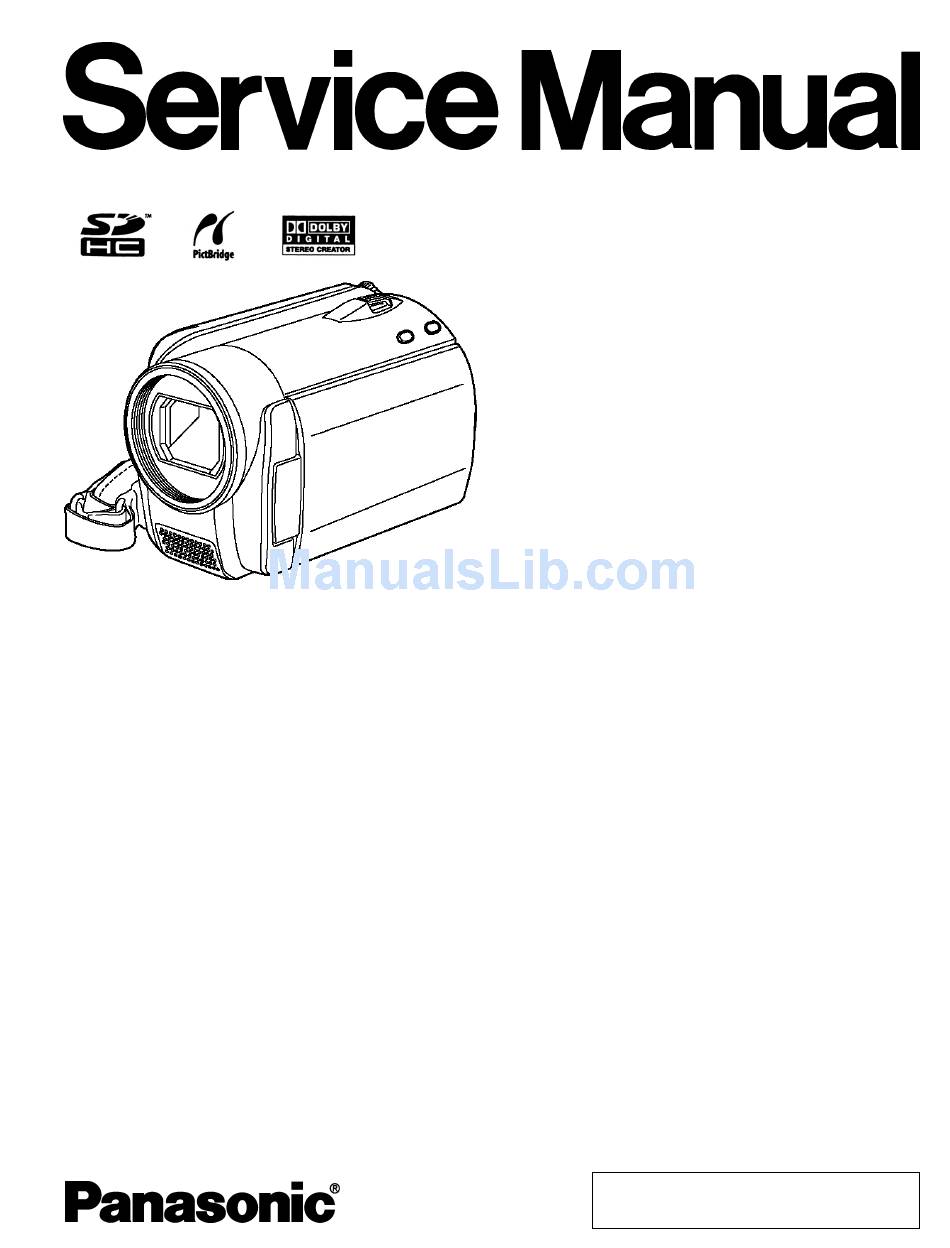

SD Card / Hard Disk Video Camera
SDR-H90P
Model No.
SDR-H90PC
SDR-H90EG
SDR-H90EE
SDR-H90EB
SDR-H90EP
SDR-H90EF
SDR-H90EC
SDR-H90GC
SDR-H90GN
SDR-H90GJ
SDR-H90GK
SDR-H90PU
SDR-H80P
SDR-H80PC
SDR-H80EG
SDR-H80EE
SDR-H80EB
SDR-H80EP
SDR-H80EF
SDR-H80EC
SDR-H80GC
SDR-H80GN
SDR-H80GJ
SDR-H80GK
SDR-H80PU
SDR-H80PR
SDR-H81EE
© Panasonic
copying and distribution is a violation of law.
ORDER NO.VM0812043CE
Corporation
2008.
Unauthorized
B27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDR-H90P and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic SDR-H90P

Summary of Contents for Panasonic SDR-H90P

  • Page 1 ORDER NO.VM0812043CE SD Card / Hard Disk Video Camera SDR-H90P Model No. SDR-H90PC SDR-H90EG SDR-H90EE SDR-H90EB SDR-H90EP SDR-H90EF SDR-H90EC SDR-H90GC SDR-H90GN SDR-H90GJ SDR-H90GK SDR-H90PU SDR-H80P SDR-H80PC SDR-H80EG SDR-H80EE SDR-H80EB SDR-H80EP SDR-H80EF SDR-H80EC SDR-H80GC SDR-H80GN SDR-H80GJ SDR-H80GK SDR-H80PU SDR-H80PR SDR-H81EE © Panasonic Corporation 2008.

  • Page 2: Table Of Contents

    SDR-H90P / SDR-H90PC / SDR-H90EG / SDR-H90EE / SDR-H90EB / SDR-H90EP / SDR-H90EF / SDR-H90EC (K)..Black Type (except DMR-H80GK) SDR-H81EB (S)..Silver Type (except DMR-H80EF, H81, H90) VOL.1 (A)..Blue Type (except DMR-H80EF/EE, H81, H90) Colours (R)..Red Type (except DMR-H80EE, H81, H90)

  • Page 3: Safety Precaution

    SDR-H80P 1 Safety Precaution 1.1. General Guidelines 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock fire, or other hazards.

  • Page 4: Warning

    SDR-H80P 2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatic Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...

  • Page 5: Service Caution Based On Legal Restrictions

    SDR-H80P 2.2. Service caution based on legal restrictions 2.2.1. General description about Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb).

  • Page 6: Caution For Ac Cord (For Eb/Gc)

    A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut 2.

  • Page 7: How To Replace The Lithium Battery (Procedure)

    2. Remove the Lithium Battery “ML-614S/ZTE” and then replace the new one. (See .) Fig. B1 Note: The lithium battery is a critical component. (Type No.: ML-614S/ZTE Manufactured by Panasonic.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in equipment designed specifically for its use.

  • Page 8: How To Recycle The Lithium Battery (U.s. Only)

    SDR-H80P 2.5. How to Recycle the Lithium Battery (U.S. Only)

  • Page 9: Service Navigation

    *Main P.C.B. (LSEP8462A1: SDR-H80P/PC/PU/PR, H90P/PC/PU) (LSEP8462P1: SDR-H80EG/EB/EP/EF/EC/EE/GC/GN/GJ/GK, H81EB/EE, 90EG/EB/EP/EF/EC/EE/GC/GN/ GJ/GK) *Sub P.C.B. (LSEP8463A1: SDR-H80P/PC/PU/PR) (LSEP8463B1: SDR-H90P/PC/PU) (LSEP8463P1: SDR-H80EG/EB/EP/EF/EC/EE/GC/GN/GJ/GK, H81EB) (LSEP8463Q1: SDR-H81EE) (LSEP8463R1: SDR-H90EG/EB/EP/EF/EC/EE/GC/GN/GJ/GK) When a part replacement is required for repairing each Main P.C.B. and Sub P.C.B., replace the assembly parts.
  • Page 10 SDR-H80P (Sub P.C.B.) The following circuits are contained in Sub P.C.B. 1. Sub Connection Circuit 2. Power Circuit 3. G-Sensor Circuit 4. Sub SYSCON Circuit 5. SYSCON Circuit 6. Light Circuit (Only SDR-H81EE)

  • Page 11: Precautions For Handling Hdd

    SDR-H80P 3.2. Precautions for Handling HDD 1. Handle HDD very carefully to prevent the static electricity and shock. 2. Set the HDD quickly after taking it out from the package. Make sure to put the HDD on buffer materials, etc. 3.2.1.
  • Page 12 SDR-H80P 3.2.2. Precautions for installing HDD...
  • Page 13 SDR-H80P 3.2.3. Precautions for inserting and removing HDD FPC Make sure to use the tool (LSVQ0112) when locking and unlocking the lock lever of HDD FPC connector. Do not lock the lock lever without inserting HDD FPC. Otherwise, the connector may be damaged.
  • Page 14 SDR-H80P Make sure to use the tool (LSVQ0112) when opening and closing the lock lever. *See "" () for attaching to the unit.

  • Page 15: Formatting Hdd

    SDR-H80P 3.3. Formatting HDD When HDD is exchanged, format HDD as the procedure below. Without formatting, the error message appears on the LCD display when accessing HDD. <Formatting procedure> Rotate the mode dial to select Select [HDD] in [MEDIA SELECT]. 1.

  • Page 16: Specifications

    SDR-H80P 4 Specifications...

  • Page 17: Location Of Controls And Components

    SDR-H80P 5 Location of Controls and Components Followings are the Location of Controls and Components for SDR-H80P/PC, H90P/PC as a sample. For other models, refer to each Operating Instructions.
  • Page 18 SDR-H80P...

  • Page 19: Service Mode

    SDR-H80P 6 Service Mode 6.1. Service Menu When abnormal detection contents are confirmed, do the (Service Menu) following operation. Automatic diagnosis code will bedisplayed. To enter the Service Menu 1. Turn the Power on and set the Mode Dial to [VIDEO RECORDING MODE]. 2.
  • Page 20 SDR-H80P To select the Item of Service Menu 1. Press [JOYSTICK CONTROL UP/DOWN] to select item [1], [2], [3], [4], [9], [10], [14] or [15]. 2. Press [JOYSTICK CONTROL RIGHT] to display [YES/NO] screen. 3. Press [JOYSTICK CONTROL UP/DOWN] to select [YES]. 4.
  • Page 21 SDR-H80P Fig. 1-3...
  • Page 22 SDR-H80P Fig. 1-4...
  • Page 23 SDR-H80P Fig. 1-5...
  • Page 24 SDR-H80P Fig. 1-6 Fig. 1-7 To exit the Service Menu Unplug the AC Cord.

  • Page 25: About Default Setting

    SDR-H80P 6.2. About Default Setting The data of Menu, Mode, Card and EEPROM setting, etc. is set to the default condition in factory. 6.2.1. How to set the Default Setting 1. Turn the Power on and set the Mode Dial to [VIDEO RECORDING MODE]. 2.

  • Page 26: Service Fixture & Tools

    SDR-H80P 7 Service Fixture & Tools 7.1. Service Tools and Equipment...

  • Page 27: Disassembly And Assembly Instructions

    SDR-H80P 8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart This flow chart indicates the disassembly steps the cabinet parts and P.C.B.. Unit in order to access to be serviced. When reinstalling, perform the steps in the reverse order. 8.2. P.C.B.

  • Page 28: Disassembly Procedures

    SDR-H80P 8.3. Disassembly Procedures Flow-Chart for Disassembly Procedure Item / Part Fig. Removal (Screw,Connector,FPC. & Other) 5-Screws (A) 1-Screw (B) 5-Tabs Grip Cover Unit HDD, HDD Frame HDD Damper Unit 1-Connector FP21 Note for replacing HDD 1) How to Remove HDD Cushion Note for replacing HDD 2) How to Attach...
  • Page 29 SDR-H80P 2) How to Attach Attach the HDD FPC to the new HDD using the tool. Attach the HDD cushion to the HDD. Fig. D3 Note for replacing HDD · Be sure to use the tool when inserting and removing HDD FPC.
  • Page 30 SDR-H80P Fig. D9 Fig. D7 Fig. D10 Fig. D8...
  • Page 31 SDR-H80P Fig. D11 Fig. D13 Fig. D12 Fig. D14...
  • Page 32 SDR-H80P Fig. D15...

  • Page 33: Disassembly Procedures Of Camera Lens Unit

    SDR-H80P 8.4. Disassembly Procedures of Camera Lens Unit The following flowchart describes order or steps for removing the Camera lens unit and certain printed circuit boards in order to make access to the item needing service. To reassemble the unit follow the steps in reverse order. Fig.

  • Page 34: Measurements And Adjustments

    SDR-H80P 9 Measurements and Adjustments 9.1. EEPROM Data for spare parts of the SUB P.C.B. After replacing the SUB P.C.B., be sure to achieve adjustment. As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software. The Adjustment software is available at “TSN Website”, therefore, access to “TSN Website” at “Support Information from NWBG/VDBG-PAVC”.
  • Page 35 SDR-H80P 9.2.2. Checking and repairing individual circuit boards except module parts (Main P.C.B. and Sub P.C.B.) How to use extension cables.

  • Page 36: Location For Connectors Of The Main P.c.b. And Sub

    SDR-H80P 9.3. Location for Connectors of the Main P.C.B. and Sub P.C.B. 9.3.1. Main P.C.B.
  • Page 37 SDR-H80P 9.3.2. Sub P.C.B.

  • Page 38: Electrical Adjustment Procedures

    SDR-H80P 9.4. Electrical Adjustment Procedures 9.4.1. Initial Guideline The table below shows which adjustments are necessary according to the unit parts and individual parts to be replaced. Make sure to perform these adjustments shown below as necessary. 9.4.2. Set-up manual for SD Card/Hard Disk Video Camera. 1.
  • Page 39 SDR-H80P c. Connect the PC and SD Card/Hard Disk Video Camera as shown in and E2. Fig. E1 Fig. E2 Rough image of set-up connection...
  • Page 40 SDR-H80P 9.4.3. Set up of PC-EVR Adjustment Program 1. Turn on the PC and install the PC-EVR Adjustment Program into the PC. 2. Execute the "khd2009.exe" file by double clicking to start up the PC-EVR Adjustment Program. The main menu will be displayed. 3.
  • Page 41 SDR-H80P 2. Select the "Diagnosis" Fig. E2-8 Fig. E2-5 3. Select the "Lock Info" Fig. E2-6 4. Confirm the OneNAND-Flash ROM Error information. Fig. E2-7 5. If "Fatal Error" is displayed, Flash ROM (IC3203) is defective. Replace Main P.C.B. Note: This error information is recorded on EEPROM.

  • Page 42: Maintenance

    SDR-H80P 10 Maintenance 10.1. Cleaning Lens and LCD Panel Do not touch the surface of the lens and LCD Panel with your hand. When cleaning the lens, use air-Blower to blow off the dust. When cleaning the LCD Panel, dampen the lens cleaning paper with lens cleaner, and the gently wipe the their surface. Note: A lens cleaning paper and lens cleaner are available at local camera shops and market place.

  • Page 43: Schematic Diagrams

    SDR-H80P 11 Schematic Diagrams 11.1. OVERALL SCHEMATIC DIAGRAM LENS UNIT FLEX. AV MULTI JACK HDD DRIVE SPEAKER (AV OUTPUT) UNIT ZOOM.M IRIS FOCUS.M IC4801 (MIC AMP) REAR IC3301 AVIO (D/A,A/D,AV OP AMP) AVIO IC701 IC302 IC401 IC7801, IC7802 (ZOOM DRIVE, FOCUS DRIVE, (TG/AFE) (RESIZE) (GYRO SENSOR)

  • Page 44: Interconnection Schematic Diagram

    SDR-H80P 11.2. INTERCONNECTION SCHEMATIC DIAGRAM LENS UNIT HDD DRIVE ECM(L) ECM(R) FP41 ECM_R ECM_R MIC_GND MIC_GND ECM_L ECM_L ECM FPC MAIN P.C.B. LENS DRIVE VIDEO AVIO TG/AFE RESIZE SPOUT1 SPEAKER MEMORY USB HOST SPOUT2 SUB POWER MAIN CONNECTION SPEAKER UNIT OPEN/CLOSE SUB P.C.B.
  • Page 45 SDR-H80P FP81 REAR P.C.B. LCD_RVS D-GND FP8101 FP8102 D-GND SD CARD HOLDER ADKEY2 VCOM D-GND ADKEY3 VVSS D-GND LIBATT++ Vraf D-GND REGD3V SD DOOR SW D-GND ADKEY_GND COMH LCD_/CKH1 BL_CONT LCD_CKH1 LCD_BL_5V LCD_PCG /CKH1 REVERS LCD_BL_5V LCD_8.5V CKH1 SWITCH LCD_OEVE/LCD_COM LCD_R/L LCD_STV LCD_WIDE...

  • Page 46: Rear Schematic Diagram

    SDR-H80P 11.3. REAR SCHEMATIC DIAGRAM (REAR P.C.B.) C6313 0.1u[KB] C6315 SD_CARD_HOLDER 0.1u[KB] CARD_PRO W.P. D.SW R6309 CARD_DETECT CARD_D1 R6310 CARD_D0 C6312 C6310 18p[JC] 18p[JC] CARD_CLK R6304 3.3V R6306 R6315 1/8W CARD_CMD Q6301 CARD_D3 2SB09700RL (CARD IN : ON) R6311 CARD_D2 VOUT SC82-AB SD_DOOR...

  • Page 47: Lcd Bl Schematic Diagram

    SDR-H80P 11.4. LCD BL SCHEMATIC DIAGRAM (LCD BL P.C.B.) : VIDEO MAIN SIGNAL PATH TO LCD SHAFT FPC Q8108 FP8101 2SA2174J0L (DRIVE) Q8107 -5.6 2SA2174J0L ADKEY2 (DRIVE) ADKEY3 LIBATT++ LCD PANEL FP8102 REGD3V ADKEY_GND VCOM LCD_/CKH1/LCD_HCK2 VVSS R8101 0 LCD_CKH1/LCD_HCK1 Vref LCD_PCG R8102 0...

  • Page 48: Hdd Relay Fpc Schematic Diagram

    SDR-H80P 11.5. HDD RELAY FPC SCHEMATIC DIAGRAM (HDD RELAY FPC) "FOR REFERENCE ONLY" TO HDD UNIT HDD_UNLOAD_H HDD_3.3V HDD_3.3V -DASP HDD_DASP HDD_CS1 -CS1 -CS0 HDD_CS0 HDD_DA2 HDD_DA0 -PDIAG PDIAG HDD_DA1 INTRQ HDD_INTRQ HDD_DMACK -DMACK IORDY -DIOR -DIOW DMARQ DD15 HDD15 HDD0 HDD14 DD14...

  • Page 49: Lcd Shaft Fpc Schematic Diagram

    SDR-H80P 11.6. LCD SHAFT FPC SCHEMATIC DIAGRAM (LCD SHAFT FPC) : VIDEO MAIN SIGNAL PATH "FOR REFERENCE ONLY" LCD REVERS : VIDEO MAIN SIGNAL PATH IN REC MODE TO MAIN CN LCD_RVS TO LCD BL D_GND D_GND D_GND D_GND D_GND D_GND COMH D_GND...

  • Page 50: Terminal Fpc Schematic Diagram

    SDR-H80P 11.7. TERMINAL FPC SCHEMATIC DIAGRAM 11.8. LCD OPERATION UNIT SCHEMATIC DIAGRAM (TERMINAL FPC) (LCD OPERATION UNIT) "FOR REFERENCE ONLY" "FOR REFERENCE ONLY" CROSS KEY TO SUB CN LEFT BATTERY CATCHER TO LCD BL ADKEY_LEFT ADKEY_UP BATT_DET RIGHT FP11 ADKEY_RIGHT BATT_TMP FP8104 UNREG...

  • Page 51: Ecm Fpc Schematic Diagram

    SDR-H80P 11.9. ECM FPC SCHEMATIC DIAGRAM 11.10. LIGHT SCHEMATIC DIAGRAM (SDR-H81EE ONLY) (ECM FPC) (LIGHT P.C.B.) : AUDIO MAIN SIGNAL PATH IN REC MODE "FOR REFERENCE ONLY" TO SUB CN Z0003 L0CBAB000068S0000 TO MAIN CN LIGHT_5V ECM_R ECM_R D4301 TO P92 B3AFB0000171 MIC_GND (LED LIGHT)

  • Page 52: Mode Operation Schematic Diagram

    SDR-H80P 11.11. MODE OPERATION SCHEMATIC DIAGRAM 11.12. CCD SCHEMATIC DIAGRAM (MODE OPERATION UNIT) (CCD) : VIDEO MAIN SIGNAL PATH "FOR REFERENCE ONLY" "FOR REFERENCE ONLY" TO MAIN CN FP601 -7.5V TO SUB CN S/S_SW RESET MODE_VDD MODE DIAL AD_KEY1(MODE_DIAL) THERMO POWER_SW POWER CF601...

  • Page 53: Printed Circuit Board

    SDR-H80P 12 Printed Circuit Board 12.1. LCD BL P.C.B. (LSEP8465A1) (COMPONENT SIDE) (FOIL SIDE) SDR-H80, H81, H90 LCD BL P.C.B.

  • Page 54: Rear P.c.b

    SDR-H80P 12.2. REAR P.C.B. 12.3. LIGHT P.C.B. (SDR-H81EE ONLY) (LSEP8464A1) (LSEP8473A1) (COMPONENT SIDE) SDR-H80, H81, H90 LIGHT P.C.B. (SDR-H81EE ONLY) SDR-H80, H81, H90 (FOIL SIDE) REAR P.C.B.

  • Page 55: Parts And Exploded Views

    SDR-H80P 13 Parts and Exploded Views 13.1. Exploded Views 13.1.1. Frame & Casing Section...
  • Page 56 SDR-H80P 13.1.2. LCD Section...
  • Page 57 SDR-H80P 13.1.3. Camera Lens Section...
  • Page 58 SDR-H80P 13.1.4. Packing Parts & Accessories Section...

  • Page 59: Replacement Parts List

    Remarks column are supplied by AVC-CSC-SPC. [PSECI] (RTL) E.S.D. 3. Parts marked with [Energy] in the Remarks column are LSEP8463P1 SUB P.C.B. H80EB,EC,EE,EF, supplied from "Panasonic Corporation Energy EG,EP,GC,GJ,GK, Company." GN,H81EB (RTL) E.S.D. 13.2.1. Frame & Casing Section Parts List LSEP8463A1 SUB P.C.B.
  • Page 60 SDR-H80P Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description XQN16+BJ4FN SCREW XQN16+BF4FN SCREW H80EBS,ECS,EES, XQN16+BJ5FJK SCREW H80EBA/K/R,ECA/ EGS,EPS,GCS,GJS K/R,EEK,EFK/R,E ,GKS,GNS,PS,PCS GA/K/R,EPA/K/R, ,PUS,PRS,H90EB, GCA/K/R,GJA/K/R EC,EE,EF ,GKA/R,GNA/K/R, XQN16+BJ5FJK SCREW H80EBA/K/R,ECA/ PA/K/R,PCA/K/R, K/R,EEK,EFK/R,E PUA/K/R,PRA/K/R GA/K/R,EPA/K/R, ,H81EB,EE,H90EG GCA/K/R,GJA/K/R ,EP,GC,GJ,GK,GN...
  • Page 61 SDR-H80P Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description ,EP,GC,GJ,GK,GN ,PUS,PRS,H90EB, ,P,PC,PU EC,EE,EF XQN16+BJ5FN SCREW H80EBS,ECS,EES, XQN16+BJ5FJK SCREW H80EBA/K/R,ECA/ EGS,EPS,GCS,GJS K/R,EEK,EFK/R,E ,GKS,GNS,PS,PCS GA/K/R,EPA/K/R, ,PUS,PRS,H90EB, GCA/K/R,GJA/K/R EC,EE,EF ,GKA/R,GNA/K/R, XQN16+BF4FJK SCREW H80EBA/K/R,ECA/ PA/K/R,PCA/K/R, K/R,EEK,EFK/R,E PUA/K/R,PRA/K/R GA/K/R,EPA/K/R, ,H81EB,EE,H90EG...
  • Page 62 SDR-H80P Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description LSSQ1010 LCD OPERATION LSPG2736 PACKING CASE H80GCA UNIT LSPG2734 PACKING CASE H80GCK LSYK2579 LCD CASE A UNIT (-A) H80 LSPG2735 PACKING CASE H80GCR LSYK2586 LCD CASE A UNIT H80EBK,ECK,EEK,...
  • Page 63 SDR-H80P Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description LSQT1449-A O/I (ENGLISH) H80P,H90P,H80PC LSQT1482-A H80GC,H90GC ,H90PC [PSECI] (SINGAPOREAN) (CD-ROM) LSQT1450-A O/I (CANADIAN H80PC,H90PC FRENCH) [PSECI] LSQT1451-A O/I (ENGLISH) H80PU,H90PU 13.2.5. Electrical Replacement Parts List [PSECI] LSQT1528-A O/I (SPANISH)
  • Page 64 SDR-H80P Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description R6314 ERJ3GEY0R00 M.RESISTOR CH R8112 ERJ3RBD822 M.RESISTOR CH 1/10W 0 1/10W 8.2K R6315 ERJ6GEY0R00V M.RESISTOR CH R8113 D0GB473JA057 M.RESISTOR CH 1/10W 0 1/10W 47K SW6301 ESE13H01D SWITCH...
