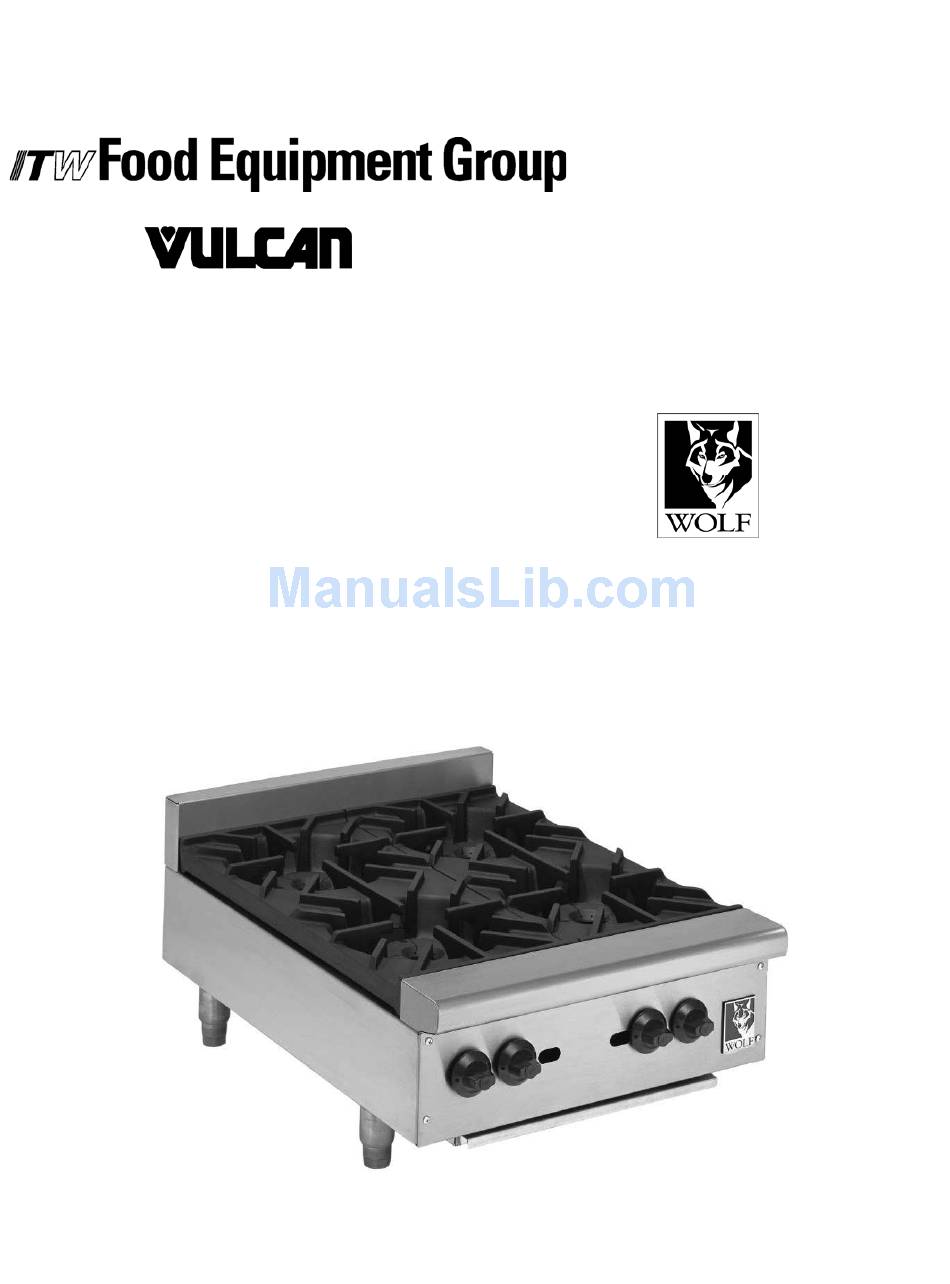

INSTALLATION & OPERATION MANUAL FOR
MODEL
VHP212
VHP424
VHP636
VHP848
www.vulcanhart.com
ITW Food Equipment Group, LLC
3600 North Point Blvd.
Baltimore, MA 21222
Hotplates
MLS
ML-135AHP-12
ML-135AHP-24
ML-135AHP-36
ML-135AHP-48
MODELS
MLS
AHP212
AHP424
AHP636
AHP848
www.wolfrange.com
AHP424
RETAIN THIS MANUAL FOR FUTURE USE
ML-135AHP-12
ML-135AHP-24
ML-135AHP-36
ML-135AHP-48
FORM F-36955 (04-07)
Advertisement
Table of Contents
Related Manuals for ITW Food Equipment Group VHP212 ML-135AHP-12
Summary of Contents for ITW Food Equipment Group VHP212 ML-135AHP-12
- Page 1 INSTALLATION & OPERATION MANUAL FOR Hotplates MODEL VHP212 ML-135AHP-12 VHP424 ML-135AHP-24 VHP636 ML-135AHP-36 VHP848 ML-135AHP-48 www.vulcanhart.com MODELS AHP212 ML-135AHP-12 AHP424 ML-135AHP-24 AHP636 ML-135AHP-36 AHP848 ML-135AHP-48 www.wolfrange.com AHP424 RETAIN THIS MANUAL FOR FUTURE USE ITW Food Equipment Group, LLC 3600 North Point Blvd. Baltimore, MA 21222 FORM F-36955 (04-07)
-
Page 2: Important For Your Safety
IMPORTANT FOR YOUR SAFETY THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL GAS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD START-UP AND ADJUSTMENTS OF THE EQUIPMENT COVERED BY THIS MANUAL. POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE SMELL OF GAS IS DETECTED. - Page 3 INSTALLATION, OPERATION AND CARE OF GAS COUNTERTOP HOTPLATE RANGE GENERAL Gas Countertop Hotplates are designed for commercial use only and feature fast, efficient gas heat. Each burner is controlled by an adjustable gas valve. Cast grates and burners are easily removed for cleaning when cool. # of BTU/hr Input Rating BTU/hr Input Rating...
- Page 4 INSTALLATION CODES AND STANDARDS The hotplate must be installed in accordance with: In the United States of America: 1. State and local codes. 2. National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (latest edition). This shall include but not be limited to: NFPA #54 Section 10.3.5.2 for Venting. Copies may be obtained from The American Gas Association Accredited Standards Committee Z223, @ 400 N.
- Page 5 GAS CONNECTION The data plate on the right side, in the upper front corner of the appliance indicates the type of gas your unit is equipped to burn. DO NOT connect to any other gas type. CAUTION: All gas supply connections and any pipe joint compound must be resistant to the action of propane.
- Page 6 OPERATION WARNING: THE HOTPLATE AND ITS PARTS ARE HOT. USE CARE WHEN OPERATING, CLEANING, OR SERVICING THE APPLIANCE. LIGHTING INSTRUCTIONS 1. Turn gas shutoff valve and burner valve to the OFF position and wait 5 minutes. 2. Turn gas shutoff valve ON. Light the pilot adjacent to each main burner. Adjust the pilot valve screw until the pilot flame has a slight yellow tip.
