RJ-45 LAN Connector LEDs

Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN.
Table 4 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 4. LAN Connector LED States
LED LED Color
A Green
B N/A
Green
Yellow
18

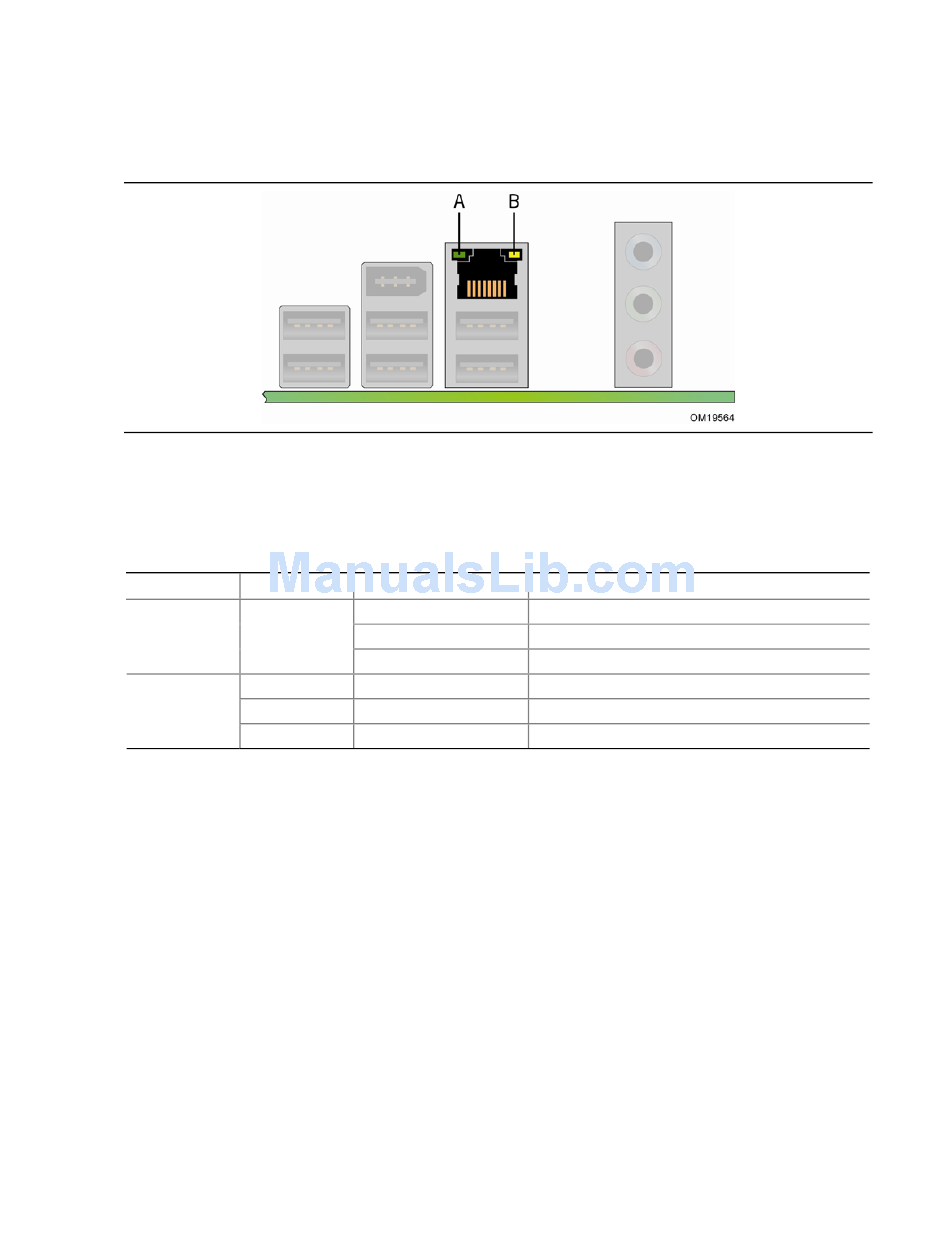

Figure 2. LAN Connector LEDs
LED State
Off
On
Blinking
Off
On
On
Indicates
LAN link is not established
LAN link is established
LAN activity is occurring
10 Mb/s data rate
100 Mb/s data rate
1000 Mb/s data rate
