Summary of Contents for Uniden SEA-WASP MC-4300

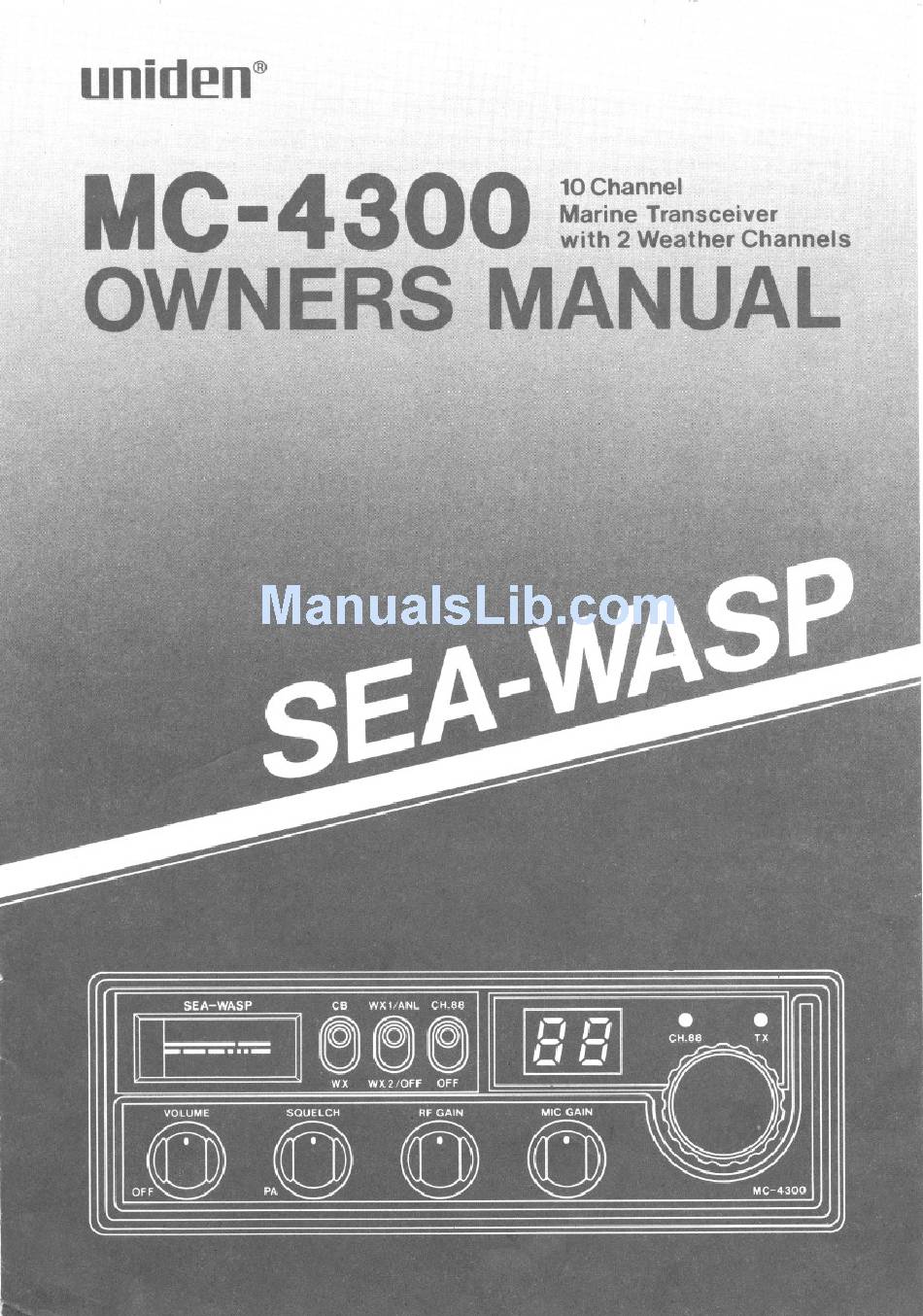

- Page 1 uni.den@...
-
Page 2: Installation
Some of the more important external factors to consider in selecting the location of your UNIDEN MC4300 are: 1. Select a location that is free from spray and splash. 2. Keep the battery leads as short as possible. Connection... -
Page 3: Connecting The Power Cords
5. Select a location that does not allow the radio to be subjected to direct sunlight (including that coming through windows). 6. Select a location well away from the ship's compass. Auxiliary speakers also should be located away from the compass. ANTENNA Since the maximum allowable power output of the transmitter is limited by the... -
Page 4: Operating Procedure To Transmit
6. To receive a weather information broadcasting, set CB WX Switch to WX position. Then, select either WX1(156.8 MHz), WX2(156.375 MHz) by setting the switch located next to it to a desired position. OPERATING PROCEDURE TO TRANSMIT CAUTION The transmitter Voltage Standing Wave Ratio (V.S.W.R.) measurement must be performed prior to the use of the transmitter. -
Page 5: Specifications
SPECI FICA TIONS GENERAL RECEIVER : 0.5p.V Channels Maximum Sensitivity RADIOTELEPHONY: Threshold Squelch Sensitivity: 1.0 p.V Frequency Tight Squelch Sensitivity: 1000 p.V RADIOTELEPHONY: 27.680 - 27.980 Adjacent Channel Selectivity : CH 16 156.8MHz at :t1OkHz (1 Signal) : 70 dB CH 67 156.375MHz Image Rejection Ratio : 70dB... -
Page 6: Channel Indicator
100% depending on the setting of the microphone gain control, using the microphone provided with the unit. Uniden's automatic compression and peak limiting circuits assure maximum modulation with minimum distortion. -
Page 7: Rear Panel Connectors
REAR PANEL CONNECTORS TAIWAN 1. ANTENNA CONNECTOR: This female connector permits connection of the transmission line cable male connector (PL-259) to the transceiver. 2. WX ANTENNA CONNECTOR: RCA Type Pin Jack is available. 3. PUBLIC ADDRESS: An external 8 ohm 4-watt speaker must be connected to the PA SPK R jack located on the rear panel when the transceiver is used as a public address system. - Page 8 ~rom£) AGENCIES PTY. LTD. 13 GAREMA CIRCUIT, KINGSGROVE PHONE 7581522, TELEX AA73170 P.O. Box 12, Kingsgrove, NSW 2208 BRISBANE: 3/12 RANDALL ST SLACKS CREEK, QLD4127 PHONE 072901188 UTSNO1304ZA Printed in Taiwan @Copyright 1984 Uniden Corporation...
